Used Sole Mini 33 31HP Marine Diesel Engine
Description
Used Sole Mini 33 31HP Marine Diesel Engine

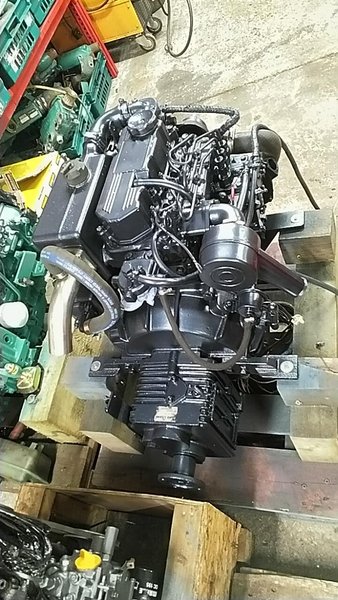

Used Sole Mini 33 31hp Three Cylinder Heat Exchanger Cooled Marine Diesel Engine Package With Sole’ Gearbox, Control Panel & Loom. Taken as a part exchange in running order against a new engine package due to poor starting. This has since been traced to a faulty fuel pump by our workshops which has been replaced with a new unit. The engine now starts instantly from cold and runs very smoothly with no apparent defects. The heat exchanger was replaced with a brand new unit a few months before the engine was changed. Total running hours believed to be approx. 3200 based on previous owners records.
Manufacturer: Sole Diesel
Year built: 2005
No. of cylinders: 3
Cylinder capacity: 1.32
Starter: Electric start
Cooling type: Fresh water
Power: 31
Motor: 23
Fuel: Diesel
Used Sole Mini 33 31HP Marine Diesel Engine Specs
| Brand | Sole Diesel |
| Full Model Code | MINI-33 (Mitsubishi L3E Base) |
| Country of Origin | Spain |
| Engine Family/Series | Sole Mini Propulsion Line |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Swirl Chamber Injection |
| Displacement | 0.952 Liters / 952 cc |
| Bore x Stroke | 76.0 mm x 70.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 22.0:1 |
| Rated Power / Horsepower | 31 HP (22.8 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 66.4 Nm @ 2500 RPM |
| Fuel System & Injection Type] | Mechanical Bosch-Type Bosch In-line Injection Pump, Indirect Injection |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 75 Amp Alternator with Internal Regulator |
| Starting System | 12V Electric Starter Motor with Sheathed Preheat Glow Plugs |
| Cooling System Type | Freshwater Cooled via Tube-and-Shell Integrated Heat Exchanger and Exhaust Manifold |
| Lubricating Oil Capacity / Oil Pan Capacity | 3.6 Liters |
| Exhaust Diameter / Exhaust System Type | 45 mm / Water-Injected Wet Exhaust Mixing Elbow |
| Flywheel & Flywheel Housing Size | Custom Compact Sole Adapter Housing Pattern |
| Dry Weight without Marine Gear | 102 kg (225 lbs) |
| Dimensions L x W x H | 581 mm x 453 mm x 533 mm |
| Emission Certifications & Duty Rating | EU RCD 2, EPA Tier 3 Compliant / M5 Recreational Pleasure Craft Duty |
| Application | Auxiliary propulsion for cruising sailing yachts, small fishing dories, displacement river launches, and canal pocket boats (Typical hull lengths 24-32 feet, configured for shaft drive or sail drive alignment). |
