Used Steyr MO94 K33 Inboard Marine Diesel Engine
$4,425.00
In Stock
Description

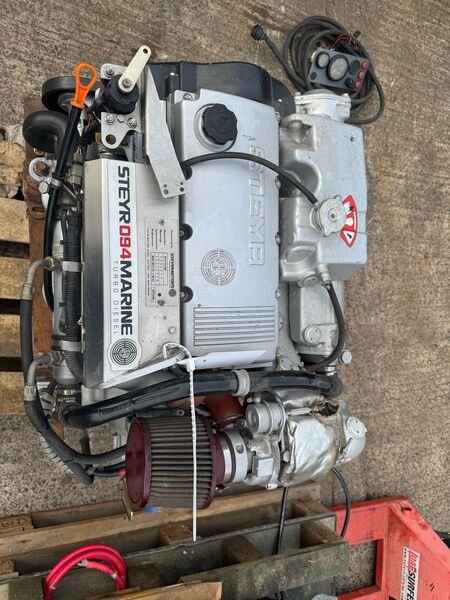

Used Steyr MO94 K33 Inboard Diesel
Used Nice clean Steyr M094 with very low hours complete with control panel and hurth gearbox if required.
Manufacturer: Steyr
Model: MO94 k33
Year built: 2012
No. of cylinders: 4
Cylinder capacity: 2.1
Starter: Electric start
Cooling type: Salt water
Sale: Trade
Power: 63
Motor: 85
Fuel: Diesel
Used Steyr MO94 K33 Inboard Marine Diesel Engine Specs
| Brand | Steyr Motors |
| Full Model Code | MO94K33 (Monoblock Platform) |
| Country of Origin | Austria |
| Engine Family/Series | Steyr M1 Monoblock Core Marine Series |
| Engine Type & Configuration | Inline 4-Cylinder, 4-Stroke, Steyr Monoblock High-Grade Cast Construction |
| Aspiration & Induction System | Turbocharged with Freshwater Intercooler |
| Displacement | 2.133 Liters / 2133 cc |
| Bore x Stroke | 85.0 mm x 94.0 mm |
| Cylinder Count & Valves per Cylinder | 4-Cylinder, 2-Valves per Cylinder (8 Valves Total) |
| Compression Ratio | 17.0:1 |
| Rated Power / Horsepower | 94 HP (69 kW) @ 3300 RPM |
| Maximum Engine Speed / Rated RPM | 3300 RPM |
| Maximum Torque | 220 Nm @ 2200 RPM |
| Fuel System & Injection Type] | Steyr Two-Stage Mechanical Unit Injector (EUI) Fuel System |
| Governor Type | Electronic Governor Control Engine Management (Steyr Mectron) |
| Electrical System Voltage & Alternator Output | 12V System, 90 Amp Marine Alternator |
| Starting System | 12V Electric Starter Motor |
| Cooling System Type | Freshwater Intercooled Circuit with High-Efficiency Shell and Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 6.5 Liters |
| Exhaust Diameter / Exhaust System Type | 70 mm / Waterjacketed Marine Wet Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 4 Flywheel Housing Standard Config |
| Dry Weight without Marine Gear | 238 kg (524 lbs) |
| Dimensions L x W x H | 736 mm x 575 mm x 648 mm |
| Emission Certifications & Duty Rating | EPA Tier 2, BSO II, EU RCD / Light Duty Commercial & Intermittent Duty Pleasure Craft |
| Application | Semi-displacement motor cruisers, fast rescue craft, twin-engine passenger launches, and planing pleasure hulls (Typical hull lengths 26-36 feet, adaptable to conventional shaft drives, sterndrives, or waterjets). |
