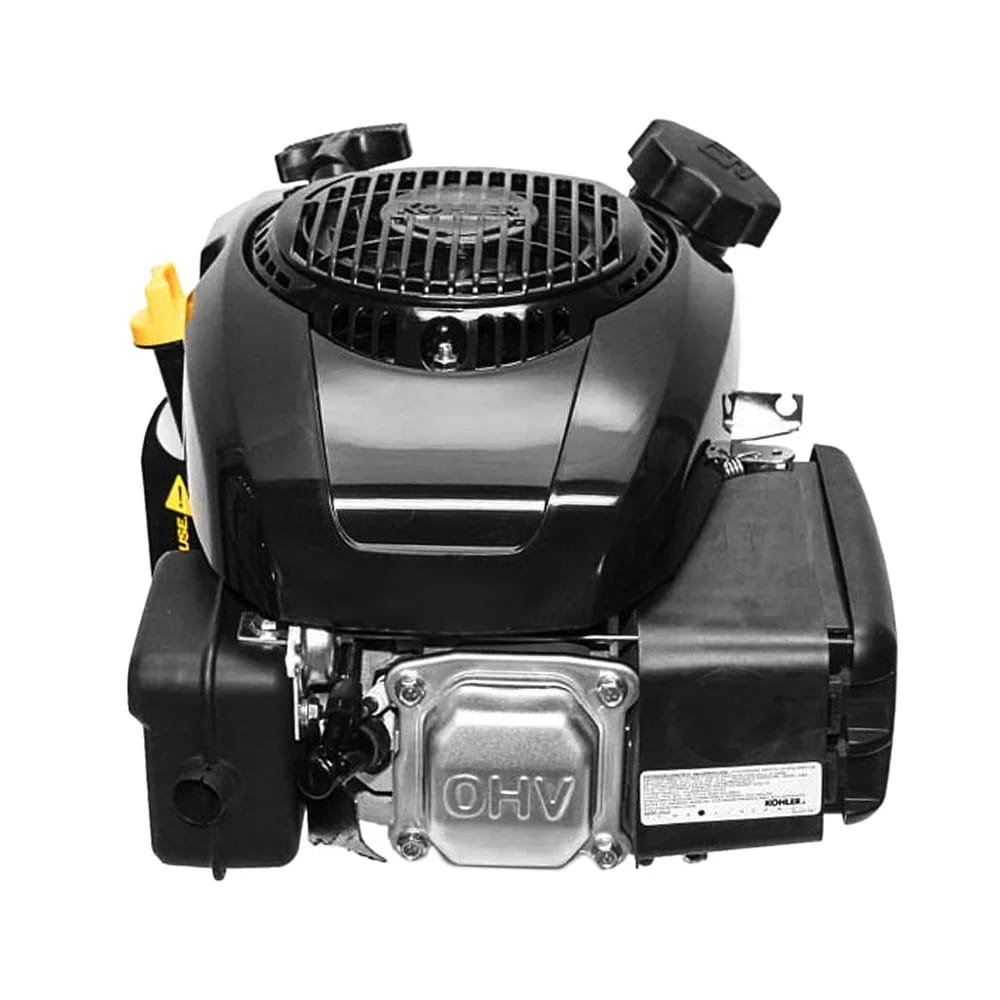

Kohler XT675-3016 149cc Engine – 7/8in Shaft

Description

During continuous 8-hour trim mowing shifts, the Kohler XT675-3016 vertical shaft engine delivers constant cutting torque without thermal sag. Contractors face mounting service costs when underpowered push-mower engines bog down in thick turf and overheat crankcase oil. Displacing 149cc with an overhead valve design, this Kohler XT Series engine delivers continuous power while keeping overall deck weight low for easy maneuvering.

A bent drive shaft or stripped keyway ruins an entire day of scheduled property maintenance. The 7/8-inch output shaft withstands high side-loads from drive belts and sudden blade impacts with landscape edging. Splash lubrication feeds continuous oil to connecting rod bearings, while the Smart-Choke system eliminates manual priming to get crews moving fast at every property stop.

Technical Features of Kohler XT675-3016

• 149cc Overhead Valve Engine: Delivers 6.75 gross torque ft-lbs to power commercial walk-behind cutting decks.
• 7/8-Inch Keyed Vertical Shaft: Matches standard commercial blade adapters and transmission drive pulleys.
• Smart-Choke Starting Technology: Automatically adjusts fuel-air mixtures for easy first-pull starting without flooding.
• Accu-Fill Large Fuel Tank Neck: Features an angled opening to minimize fuel spillage during trailer fill-ups.
• Dual-Element Intake Filtration: Stops fine dust and grass chaff from entering the induction tract.

Heavy-Duty Architecture & Low Maintenance

Built for professional landscape crews, this engine delivers reliable cutting torque and effortless starting across long workdays.

• A rigid aluminum crankcase casting and precision-machined shaft journals resist side-load belt stress under high tension.
• Reduced oil consumption and clean overhead valve combustion lower fleet shop maintenance overhead.
• Standard vertical base bolt dimensions allow fast drop-in repower swaps without deck modification delays.

Equipment Integration & Fitment Specs

Weighing 26 pounds dry with a standard 3-bolt vertical mounting base and 7/8-inch shaft, this motor drops into 21-inch commercial walk-behind mowers, lawn sweepers, and push trimmers.

Commercial Coverage & Maintenance Upkeep

• Factory warranty terms provide 2-Years of commercial and consumer coverage on all core mechanical assemblies.

Service this engine with fresh 10W-30 motor oil every 50 operating hours. Tap clean the air filter element weekly on dusty job sites, and maintain the spark plug electrode gap at 0.030 inches. Order the Kohler XT675-3016 vertical shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
