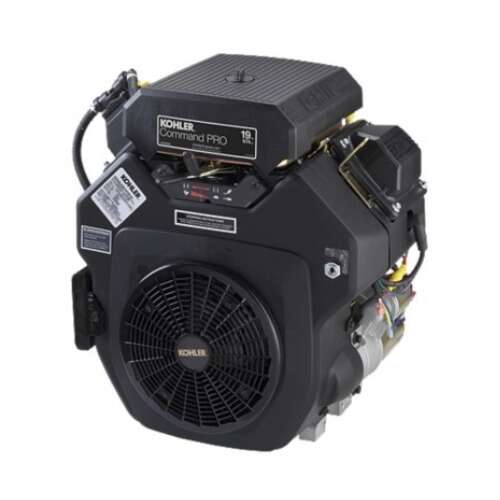

Kohler CH620-3004 19HP 674cc V-Twin Engine – 1in Shaft, Electric Start

Description

Pressure washing contractors relying on the Kohler CH620-3004 horizontal engine eliminate unexpected pump stalls and heat-related power loss during all-day industrial cleaning jobs. High-pressure wash trailers running dual wands at 4000 PSI transmit intense back-pressure resistance back into the engine crankshaft, warping light-duty powerheads and cracking crankcase flanges. Kohler equips this 674cc 19HP Command PRO V-twin engine with a precision-ground 1-inch output shaft, full-pressure lubrication, and an onboard 12V electric starter.

An internal oil pump circulates pressurized motor oil to critical crankshaft journal inserts through an automotive spin-on filter, while hydraulic valve lifters eliminate periodic valve lash adjustments. The 1-inch horizontal shaft handles direct pump couplings and multi-groove drive pulleys without lateral deflection. The heavy-duty dual-element commercial air cleaner prevents airborne water mist and road grit from reaching the carburetor, preserving engine compression year after year.

Core Mechanical Specifications of Kohler CH620-3004

• 674cc 19HP Commercial V-Twin: Delivers robust rotational torque to drive multi-gun industrial pressure wash skids.
• 1-Inch Keyed Horizontal PTO Shaft: Standard commercial diameter matches triplex ceramic plunger pumps and gearboxes.
• Full-Pressure Lubrication System: Pumps clean oil continuously to crankshaft journal inserts and connecting rod bearings.
• Hydraulic Valve Lifters: Maintain zero lash automatically, eliminating routine mechanical valve adjustments.
• 12-Volt Solenoid Shift Electric Starter: Provides fast key-turn starts that eliminate manual starting effort.
• Cast-Iron Cylinder Bore Liners: Maintains cylinder roundness and ring seal when cutting in abrasive sandy soil conditions.
• Heavy-Duty Oil Cooler: Lowers operating oil temperatures to extend bearing life during hot summer cleaning shifts.

Contractor Benefits & Long-Term Reliability

This electric-start V-twin engine combines high electrical charging capacity with rugged mechanical internals to keep commercial crews productive.

• A reinforced crankcase base casting absorbs vibrational harmonics from continuous high-pressure pumping.
• Hydraulic valve lifters slash maintenance overhead by eliminating manual valve lash service appointments.

Machinery Compatibility & Chassis Mounting

Weighing 90 pounds dry with an industry-standard 4-bolt horizontal mounting pattern and 1-inch shaft, this engine bolts onto hot-water pressure wash skids, commercial stump grinders, hydraulic power packs, and utility generators without frame alterations.

Factory Warranty Terms & Service Guidelines

• Kohler backs this Command PRO engine with 3-Year limited warranty coverage for commercial and consumer service.

Field maintenance includes checking oil levels before each morning shift, changing oil and filter every 100 hours with 10W-30 oil, inspecting the air filter cartridge, and setting spark plug electrode gap to 0.030 inches. Order the Kohler CH620-3004 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
