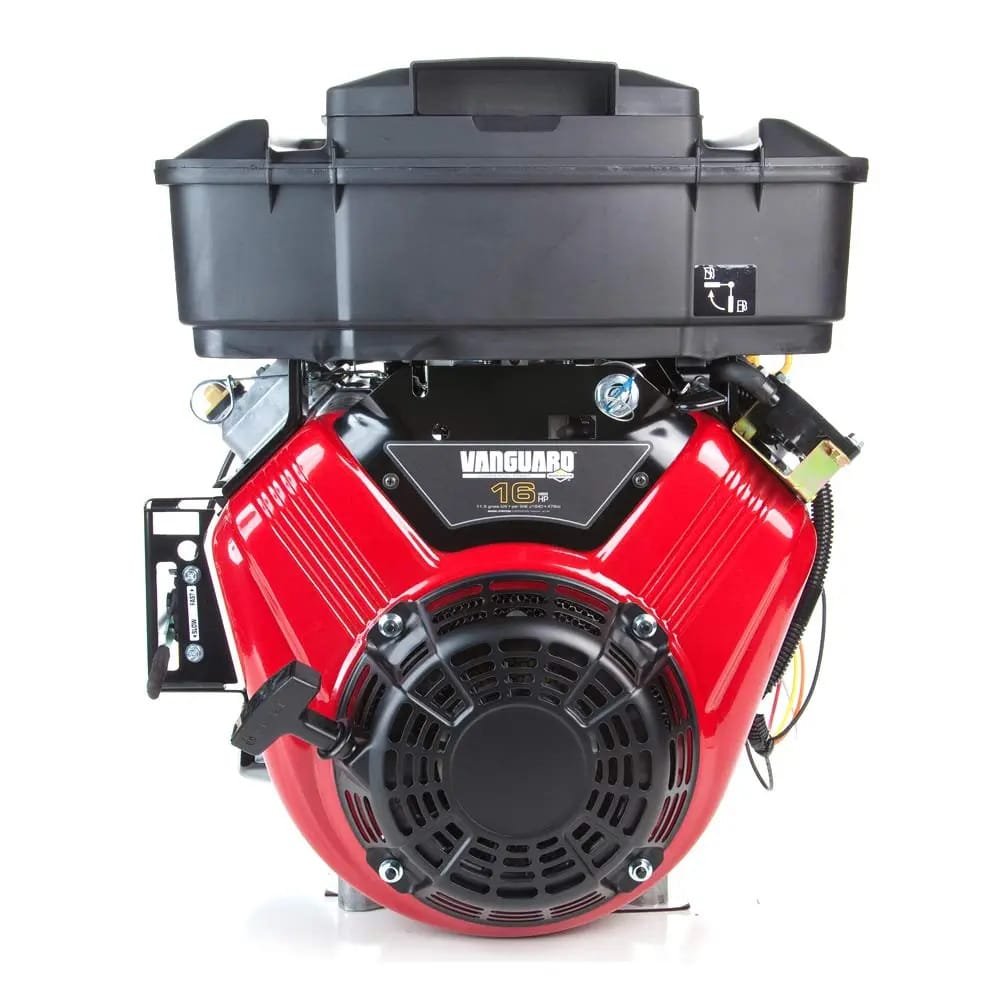

Briggs & Stratton 305447-0523-F1 16HP 479cc Vanguard Horizontal Engine
$779.00
In Stock
Briggs & Stratton Vanguard 16HP 305447-0523-F1 Technical Specs
| Brand | Briggs & Stratton |
| Full Model Code | 305447-0523-F1 |
| Country of Origin | USA/Global |
| Engine Orientation | Horizontal Shaft |
| Engine Type | V-Twin, 4-Stroke, OHV |
| Displacement | 479 cc |
| Bore x Stroke | 68 x 66 mm |
| Compression Ratio | 8.2:1 |
| Maximum Output | 11.9 kW (16 HP) @ 3600 RPM |
| Maximum Torque | 32.8 Nm (24.2 lbs-ft) @ 2400 RPM |
| Specific Fuel Consumption | 4.5 L/hr @ 3600 RPM |
| Fuel Induction System | Float-Feed Carburetor |
| Ignition System | Magnetron® Electronic Ignition |
| Start System | Electric Start (Standard Configuration) |
| Shaft Specification | 1" (25.4 mm) Straight Keyway (Different Shaft Length/Taper) |
| Fuel Tank Capacity | Data not released (External) |
| Oil Capacity & Type | 1.4 Liters / SAE 10W-30 |
| Cooling System | Air Cooled |
| Dry Weight | 32.2 kg |
| Dimensions | 279 x 407 x 440 mm |
| Standard Warranty | 3 Years (Commercial) |
| Primary Application | Compact Utility Loaders, Professional Saws |
Briggs 305447-0523 Vanguard Included:
- Briggs & Stratton Vanguard 305447-0523-F1 479cc 16HP V-Twin Engine
- 12V Electric Start System and Integrated Charging Alternator
- Full Pressure Lubrication System with Spin-On Mechanical Oil Filter
- Premium Dual-Element Cyclonic Air Filtration System Upgrade
- Dura-Bore Cast Iron Cylinder Sleeves and Overhead Valve (OHV) Layout
- Mechanical Fuel Pump, Float Carburetor, and Ignition Key Switch
- User Manual
- Official Vanguard Commercial Engines Limited Warranty Card
