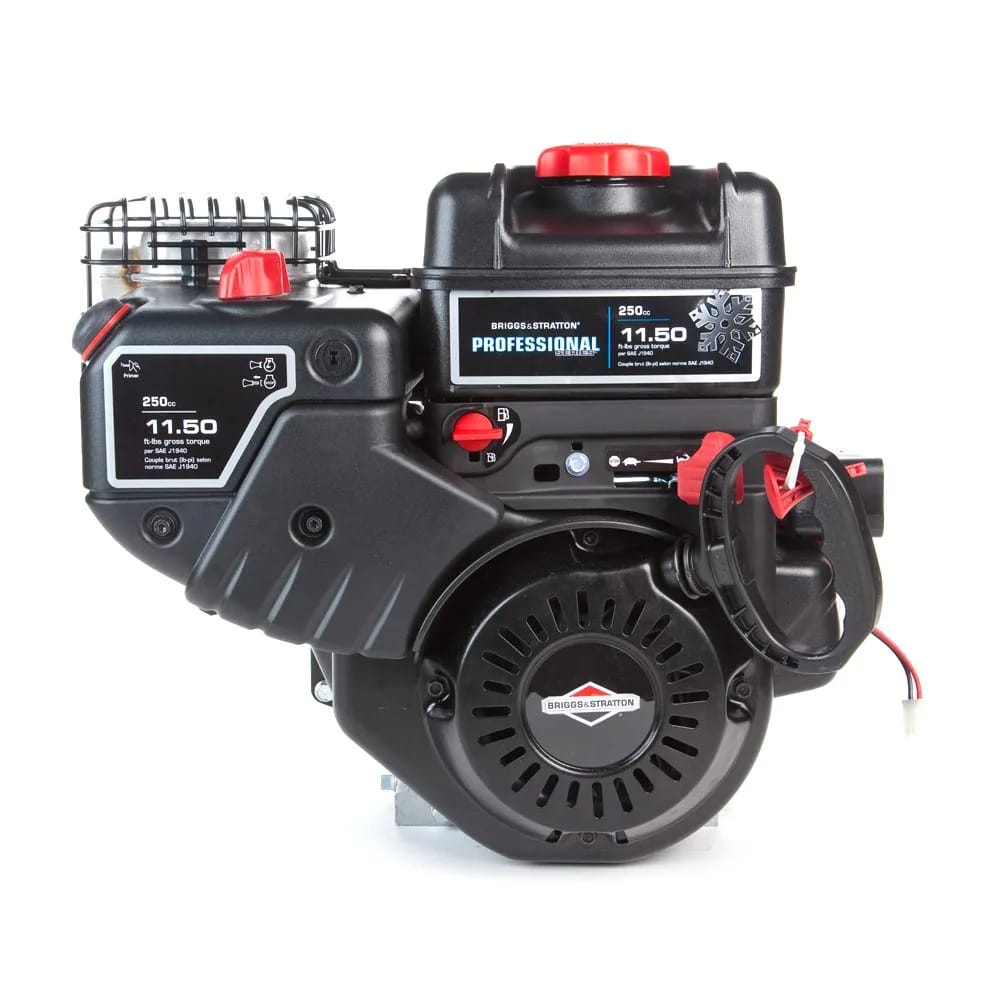

Briggs & Stratton 15C134-3023-F8 250cc Engine – 3/4in Shaft, Electric Start

Description

Prevent physical operator fatigue using the Briggs & Stratton 15C134-3023-F8 horizontal shaft engine on commercial pressure washers and utility spray skids. Pulling manual recoil cords on high-compression 250cc single-cylinder motors wears workers down during busy multi-stop commercial routes. This 1150 Series engine incorporates an onboard electric starter that spins the crankshaft with a simple key turn, getting cleaning rigs running without physical strain.

The overhead valve valvetrain runs cool, preventing exhaust valve seat recession during all-day high-RPM pump bypass cycles. Internal splash lubrication bathes the connecting rod journal in an unbroken oil barrier, shielding moving metal from friction wear. An auxiliary manual recoil starter gives operators a dependable backup option if the battery loses charge during cold weather operations.

Key Engineering Features of Briggs & Stratton 15C134-3023-F8

• 250cc Overhead Valve Commercial Block: Produces 11.50 gross torque ft-lbs to drive high-pressure pumps and heavy utility gear.
• 3/4-Inch Universal Horizontal PTO Shaft: Matches standard commercial pump couplings, gear reducers, and belt drive pulleys.
• 12-Volt Key-Start Electric Motor: Spins the engine flywheel with key activation to eliminate manual pull effort.
• Manual Backup Recoil Starter: Serves as an auxiliary hand-crank backup when field battery voltage drops.
• Maxi-Clean Air Filtration Assembly: Traps fine dust particles across dense filter pleats to protect the cylinder wall.
• Internal Splash Oil Distribution: Coats internal bearing surfaces with oil mist to prevent metal-on-metal friction.
• Heavy-Duty Metal Fuel Tank: Mounts on the crankcase with an internal sediment screen to keep fuel lines clean.
• Mechanical Engine Governor: Holds engine RPM steady when hydraulic or pump resistance fluctuates during operation.

Fleet Productivity & Cost of Ownership

Engineered for high-duty-cycle commercial tools, this electric-start engine maximizes crew efficiency by eliminating morning startup delays.

• Dual electric and manual starting hardware ensures equipment starts on time across all weather conditions.
• Precision valve timing curbs fuel consumption per shift while large oil capacity stretches intervals between drains.
• Commercial power washing contractors and rental operators reduce daily labor fatigue and speed up job deployment.

Chassis Compatibility & Repower Mounting

Weighing 43 pounds dry with an industry-standard 4-bolt horizontal mounting base, this unit repowers commercial pressure wash skids, soil post hole diggers, mobile air compressors, and portable generators without deck alterations.

Factory Warranty & Maintenance Guidelines

• Commercial fleet operators receive 2-Years of limited factory warranty coverage against component defects.
• Residential and estate owners receive 2-Years of complete consumer warranty protection.

Change oil after the initial 20 operating hours, then service every 100 hours with SAE 30 or 10W-30 motor oil. Inspect the air filter weekly on dry grading sites, and maintain spark plug gaps at 0.030 inches. Order the Briggs & Stratton 15C134-3023-F8 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
