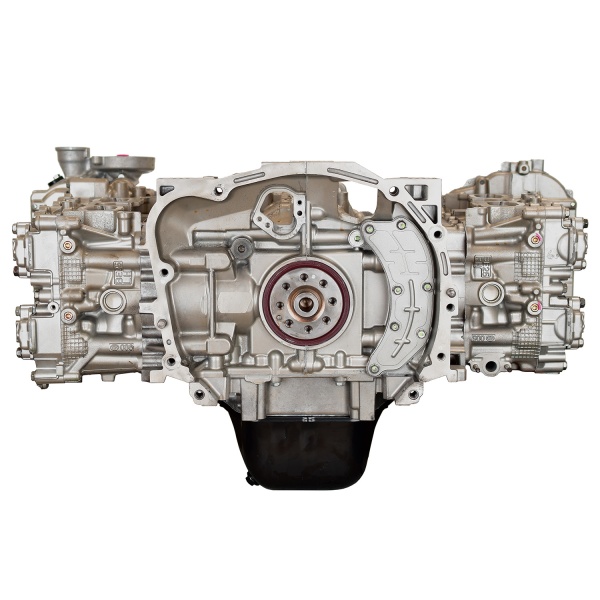

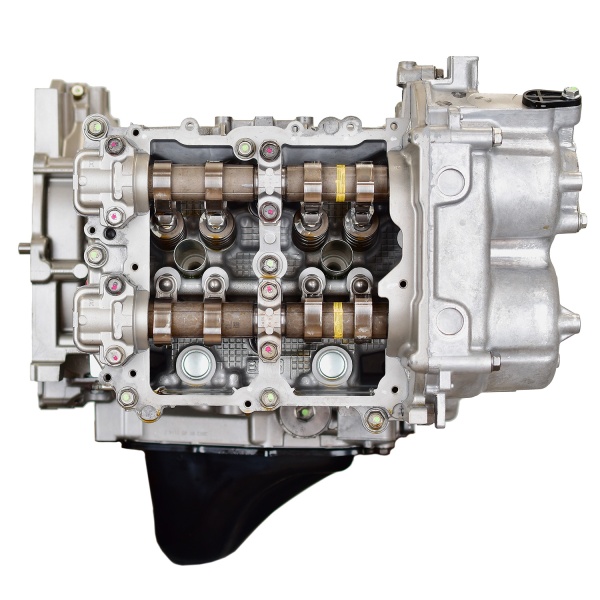

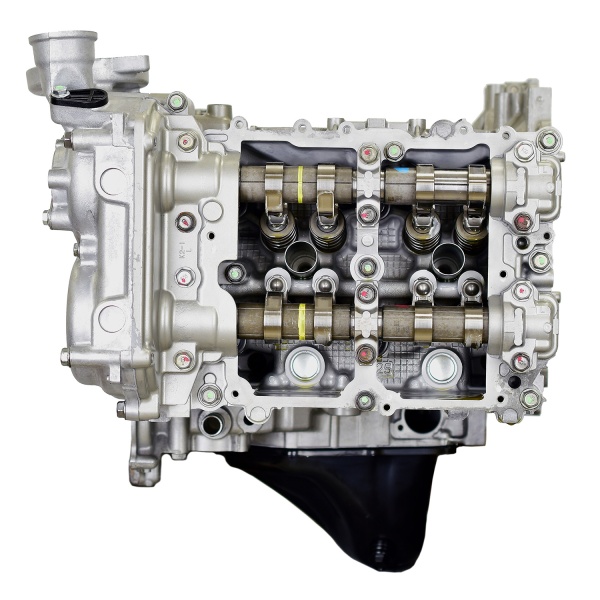

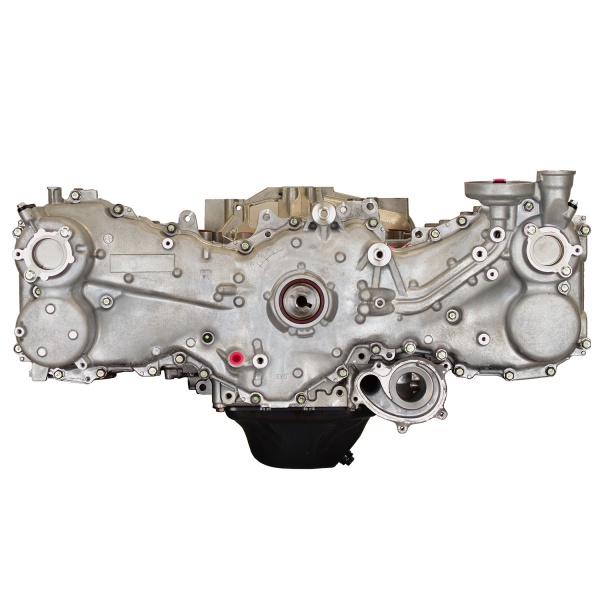

Subaru Outback Legacy Forester FB25 2.5L H4 Engine 2013-2014

Description

Experience quiet boxer engine operation with this precision remanufactured Subaru Legacy FB25 2.5L Remanufactured Engine. Production machine centers align-hone split crankcase castings FB25 E25L and E25R to true crankshaft journal bores across the engine bay envelope. This 2.5L 4-Cylinder 16-Valve DOHC boxer engine requires prompt pre-lubrication of cylinder head BE25 camshaft journals before initial crank rotation.

Die-cast aluminum horizontally opposed crankcase casting FB25 E25L/R houses cast iron sleeves and a micro-polished forged steel crankshaft with 0.0003in journal runout. Aluminum cylinder head castings RH BE25 and LH BE25 contain camshaft casting 360, sixteen valves, and intake VVT actuators under an E8U timing cover. Hypereutectic pistons ride on tri-metal rod bearings. The crated assembly registers 250 lbs with crated envelope dimensions of 38in length by 38in width by 38in height and holds 5.1 quarts oil.

Key Features of Subaru FB25

Independent repair shops buy Subaru FB25 remanufactured engine assemblies to restore vehicle compression and pass emission standards. Technicians install this remanufactured 2.5L long block replacement to end oil consumption and cold engine knock.

• Split crankcase casting FB25 E25L/R receives CNC surface milling to secure composite multi-layer steel head gaskets.
• Camshaft casting 360 journals undergo micro-polishing to minimize friction against line-bored cylinder head saddles.
• Forged steel crankshaft journals hold 0.0003in TIR to eliminate rotational harmonics across the horizontal block.
• Cylinder head castings RH BE25 and LH BE25 receive three-angle valve seat cutting to maintain 0.001in valve runout.
• Connecting rod big ends receive align-honing to set rod bearing oil clearance at 0.0012in.
• Plateau cylinder honing creates an optimal crosshatch pattern that seats moly rings within 500 miles.
• Pre-installed E8U timing cover houses dual silent timing chains to eliminate chain slap and camshaft timing drift.

Dyno Load Precision Machining Tolerances

Dynamometer testing confirms 173 HP at 5,800 RPM and 174 ft-lbs shaft torque at 4,100 RPM under steady brake load testing. Machine shop technicians measure crankshaft journal runout below 0.0003in TIR with connecting rod oil clearance gauging at 0.0012in. CNC plateau bore honing holds piston-to-bore clearance at 0.0011in to eliminate cold piston slap. Operating engine oil pressure registers 55 PSI at 3,000 RPM while engine coolant stabilizes at 195°F. Individual cylinder compression tests show balanced readings between 180 PSI and 185 PSI across all four cylinders.

Vehicle Fitment Drivetrain Guide

This remanufactured engine fits 2013 to 2014 Subaru Legacy and 2013 to 2014 Subaru Outback models equipped with the 2.5L 2498cc H4 engine, BE25 cylinder heads, and E8U timing cover. It connects to 6-Speed Manual and Lineartronic CVT all-wheel-drive transaxles. This long block does not fit late 2015 to 2019 AB25 head engines, older EJ25 SOHC engines, turbocharged Forester XT platforms, or direct-injected 2019 and newer Forester models.

Installation Protocol Service Requirements

Check intake manifold runner gaskets and inspect transmission torque converter drive plate alignment prior to bolting the long block into the chassis cradle. Never run this naturally aspirated boxer long block in high-boost race projects or off-road mud buggies without upgraded oil pans and secondary cooling. Mechanics must purge air from the cooling system to prevent hot spots.

• Pre-fill the oil filter and mechanically prime the oil circuit until oil pressure registers on the dash gauge.
• Drain the initial break-in oil and install a replacement oil filter at 500 miles.
• Inspect camshaft timing chain tensioner extension and check water pump seals at 3,000 miles.

Warranty Terms Core Return Policy

Our standard 3-Year Unlimited-Mile warranty protects parts and machine shop labor against internal mechanical defects. We arrange free prepaid freight collection for your old engine core within a 30-day window. The crated unit contains the remanufactured long block core, pre-installed timing components, oil pan, and valve covers.
