Used Volvo Penta TAMD70E 300HP Marine Diesel Engine w/ Gearbox
$2,617.00
In Stock
Description

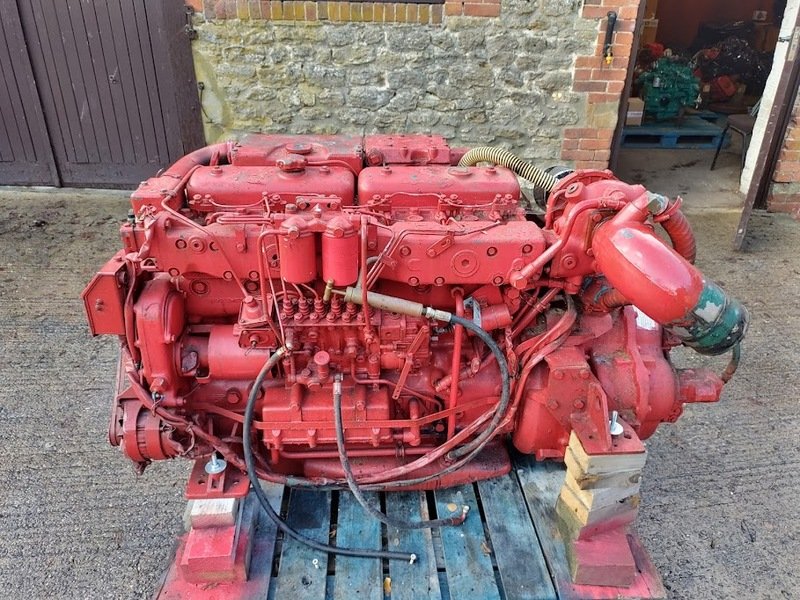

Used Volvo Penta TAMD70E 300hp Marine Diesel Engine & Gearbox
Used Volvo Penta TAMD70E 300hp Six Cylinder Turbo Aftercooled Heat Exchanger Cooled Marine Diesel Engine With Twin Disc 1.72:1 Hydraulic Gearbox. Pair Available. Both running fine when removed and have been sat in dry storage since. One is known to have a small oil leak from the throttle arm seal on the injection pump. Otherwise both engines worked fine when last run up in 2022.
Manufacturer: Volvo
Year built: 1985
No. of cylinders: 6
Cylinder capacity: 7.0L
Starter: Electric start
Cooling type: Fresh water
No. of previous owners: 1
Power: 300
Motor: 223
Fuel: Diesel
Used Volvo Penta TAMD70E 300HP Marine Diesel Engine w/ Gearbox Specs
| Brand | Volvo Penta |
| Full Model Code | TAMD70E |
| Country of Origin | Sweden |
| Engine Family/Series | Volvo Penta 70 Series Heavy Performance Line |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Turbocharged and Seawater Cooled Charge Air Cooler (Intercooled) |
| Displacement | 6.730 Liters / 6730 cc |
| Bore x Stroke | 104.77 mm x 130.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 14.3:1 |
| Rated Power / Horsepower | 300 HP (221 kW) @ 2500 RPM (Pleasure Craft Output) |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 930 Nm @ 1600 RPM |
| Fuel System & Injection Type] | Mechanical Bosch Multi-Plunger In-line Injection Pump, Direct Injection |
| Governor Type | Mechanical Centrifugal Variable Control Governor |
| Electrical System Voltage & Alternator Output | 12V or 24V System Base, 60 Amp Marine Grade Alternator |
| Starting System | Electric Starter Motor (Typically 24V Heavy Duty configuration) |
| Cooling System Type | Freshwater Cooling Loop with High-Flow Tubular Shell Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 19.0 Liters |
| Exhaust Diameter / Exhaust System Type | 120 mm / Water-Injected Marine Wet Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 2 Flywheel Housing Array |
| Dry Weight Engine Only | 770 kg (1697 lbs) (Excluding Mounted Gearbox Unit Weight) |
| Dimensions L x W x H | 1320 mm x 750 mm x 915 mm (Engine Only, dimensions change with Gearbox choice) |
| Emission Certifications & Duty Rating | Pre-Tier Emission Regulations / Light Commercial and High-Output Yacht Rating |
| Application | Classic flybridge sports cruisers, medium-sized commercial fishing vessels, pilot passenger boats, and traditional motor yachts (Typical hull lengths 36-48 feet, configured via matching twin-disc or original hydraulic gearbox on a standard straight shaft layout). |
