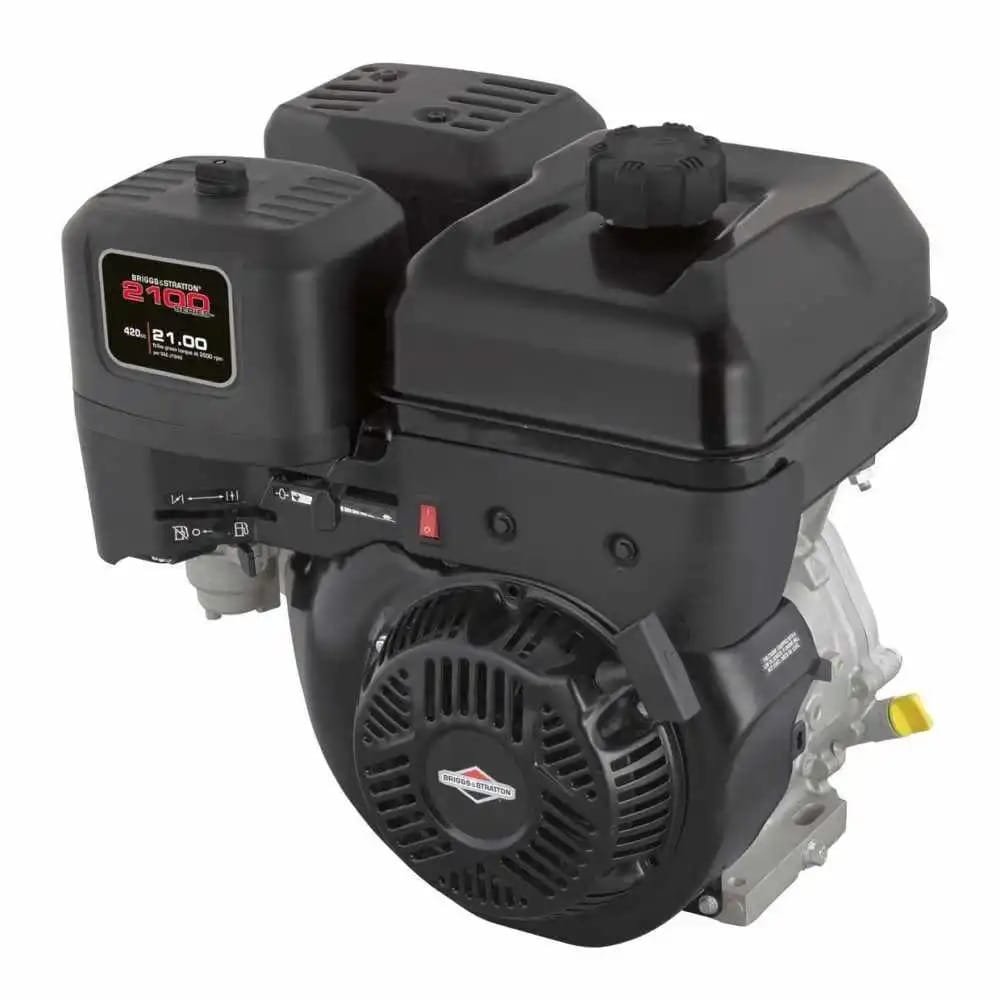

Briggs & Stratton 25T237-0045-F1 21.00 GT 420cc Horizontal Engine
$533.00
In Stock
Briggs & Stratton 25T237-0045-F1 (XR2100) Technical Specs
| Brand | Briggs & Stratton |
| Full Model Code | 25T237-0045-F1 |
| Country of Origin | USA/Global |
| Engine Orientation | Horizontal Shaft |
| Engine Type | 4-Stroke, OHV, Single Cylinder |
| Displacement | 420 cc |
| Bore x Stroke | 90 x 66 mm |
| Compression Ratio | 8.5:1 |
| Maximum Output | Approx. 13.5 - 14 HP |
| Maximum Torque | 28.5 Nm (21.00 GT) @ 2600 RPM |
| Specific Fuel Consumption | 3.8 L/hr @ 3600 RPM |
| Fuel Induction System | Standard Carburetor |
| Ignition System | Magnetron® Electronic Ignition |
| Start System | Recoil Start |
| Shaft Specification | 1" (25.4 mm) Straight Keyway Shaft |
| Fuel Tank Capacity | 6.6 Liters |
| Oil Capacity & Type | 1.1 Liters / SAE 10W-30 |
| Cooling System | Air Cooled |
| Dry Weight | 31.0 kg |
| Dimensions | 499 x 370 x 443 mm |
| Standard Warranty | 2 Years |
| Primary Application | Generators, Chippers, Large Tillers, Construction Gear |
Briggs 25T237-0045 Horizontal Included:
- Briggs & Stratton 25T237-0045-F1 420cc 2100 Series Engine
- 12V Electric Start System and Integrated Charging Alternator
- Backup Manual Recoil Starter Assembly and Built-In Fuel Tank
- Dura-Bore Cast Iron Cylinder Sleeve and Float Carburetor
- Mechanical Governor System and Magnetron Electronic Ignition
- Muffler Guard and Dual-Element Air Cleaner System
- Ignition Key / Stop Switch
- User Manual
- Official Briggs & Stratton Limited Warranty Card
