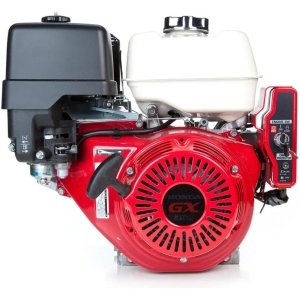

Honda GX390 11.7HP 389cc Engine (2:1 Reduction Gearbox)
$563.00
In Stock
Honda GX390-LX2 (2:1 Reduction) Technical Specs
| Brand | Honda |
| Full Model Code | GX390-LX2 |
| Country of Origin | Japan |
| Engine Orientation | Horizontal Shaft |
| Engine Type | 4-Stroke, OHV, Single Cylinder |
| Displacement | 389 cc |
| Bore x Stroke | 88 x 64 mm |
| Compression Ratio | 8.2:1 |
| Maximum Output | 8.7 kW (11.7 HP) @ 1800 RPM (Shaft Speed) |
| Maximum Torque | 53.0 Nm (39.1 lbs-ft) @ 1250 RPM (Shaft Speed) |
| Specific Fuel Consumption | 3.5 L/hr @ 3600 RPM |
| Fuel Induction System | Butterfly Carburetor |
| Ignition System | Digital CDI |
| Start System | Recoil Start |
| Shaft Specification | 25 mm Straight Keyway (2:1 Reduction Gearbox) |
| Fuel Tank Capacity | 6.1 Liters |
| Oil Capacity & Type | 1.1 Liters / SAE 10W-30 |
| Cooling System | Forced Air Cooled |
| Dry Weight | 35.5 kg |
| Dimensions | 428 x 460 x 448 mm |
| Standard Warranty | 3 Years |
| Primary Application | Slow-Speed Conveyors, Cement Mixers, Heavy Duty Tillers |
