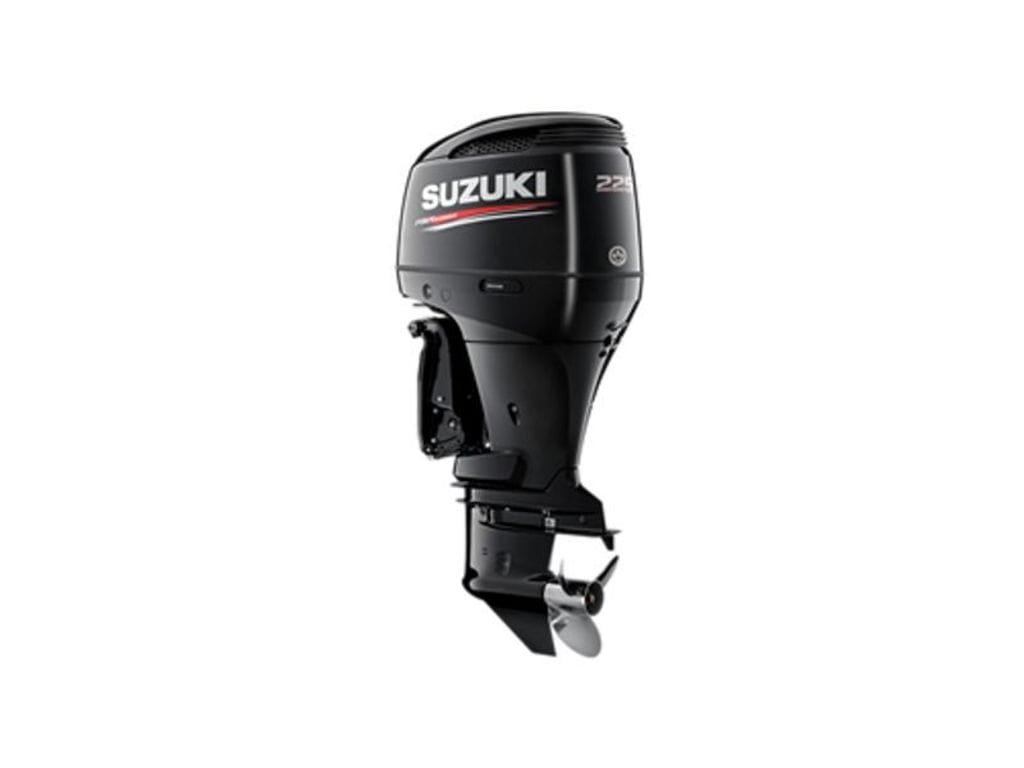

Suzuki DF225X 225HP 4-Stroke Outboard – 25in Shaft, V6

Description

Heavy offshore swells are easily defeated by the Suzuki DF225X, featuring a massive 3.6-liter naturally aspirated block. The 55-degree 24-valve DOHC architecture forces brutal low-end torque, lifting heavy fiberglass cruisers onto plane instantly to outrun coastal storms. Verifying your transom height guarantees this 25 inch shaft suzuki outboard motor reaches clean water without risking dangerous pump starvation.

Slash extreme fuel consumption on long coastal runs by relying on the Multi-Point Sequential EFI to optimize combustion mechanically. The onboard computer calculates the exact air-fuel mixture required to maintain cruising speeds efficiently. Suzuki equips the 263 kg assembly with an advanced offset driveshaft mechanism. This engineering upgrade pushes the center of gravity forward to improve vessel balance when repowering offshore center consoles.

Key Features of Suzuki DF225X

• 3.6-Liter V6 Block: Delivers brutal low-end torque from a massive 3614cc displacement, lifting heavy fiberglass hulls onto plane instantly.
• 25-Inch XL Shaft Length: Drops the propeller deeply below high offshore transoms, maintaining solid forward thrust and preventing water pump starvation.
• Offset Driveshaft Design: Moves the engine block forward over the transom bracket, shifting the center of gravity to improve vessel planing speed.
• Multi-Point Sequential EFI: Calculates precise fuel requirements continuously, eliminating carburetor hesitation and ensuring crisp throttle response across the RPM band.
• Self-Adjusting Timing Chain: Runs silently in an enclosed oil bath, eliminating the need to physically replace vulnerable rubber timing belts.
• 54-Amp Charging Alternator: Generates massive electrical current continuously, keeping deep cycle house batteries fully charged for heavy-duty marine electronics.
• Hydraulic Power Trim: Adjusts the running angle dynamically via a console switch, optimizing bow attitude across aggressive offshore swells.
• Remote Mechanical Control: Accepts standard mechanical cables directly from your forward helm, integrating flawlessly for precise directional control.
• Anti-Corrosion Finish: Blocks severe galvanic decay physically, protecting the aluminum powerhead block across decades of daily saltwater exposure.
• 2.29:1 Gearcase Ratio: Multiplies massive V6 torque effectively, spinning larger diameter propellers to push heavy displacement hulls effortlessly.

Why Choose Suzuki DF225X

Choosing this specific engine limits installation entirely to 25-inch tall transoms rigged with standard mechanical forward steering wheels. You cannot operate this via a tiller handle or digital fly-by-wire controls. Upgrading your rigging geometry is a mandatory step when replacing older mechanical outboards.

• Measure the vertical distance from your top transom edge to the keel bottom.
• Install corresponding mechanical control cables sized exactly for your specific offshore hull length.
• Keep coastal waters clean by running highly regulated four-stroke engine configurations.

Ideal Application and Vessel Fitment

This specialized 25-inch mechanical-steer outboard excels on deep-V center consoles, heavy aluminum offshore fishing boats, and massive fiberglass cruisers carrying heavy payloads. By integrating the offset driveshaft design, the engine actively pushes the center of gravity forward, allowing heavy displacement hulls to lift onto plane much faster without burying the stern. The extended shaft allows captains to operate safely in rough water, making this 225hp suzuki mechanical outboard an absolute necessity for operators crossing deep coastal inlets.

Warranty, Support and Maintenance

Authorized recreational operation receives a 3-Year Limited Warranty alongside a 3-Year Corrosion Warranty. Registered commercial applications fall under a strict 1-Year Limited Warranty with zero corrosion coverage applied to the block. Scheduled maintenance requires replacing gearcase lubricants and changing oil filters at manual-specified intervals. Always save all physical service records. Your engine serial number acts as the only way to source exact genuine replacement parts. Mulmotor can assist with product details and order-related questions before purchase.
