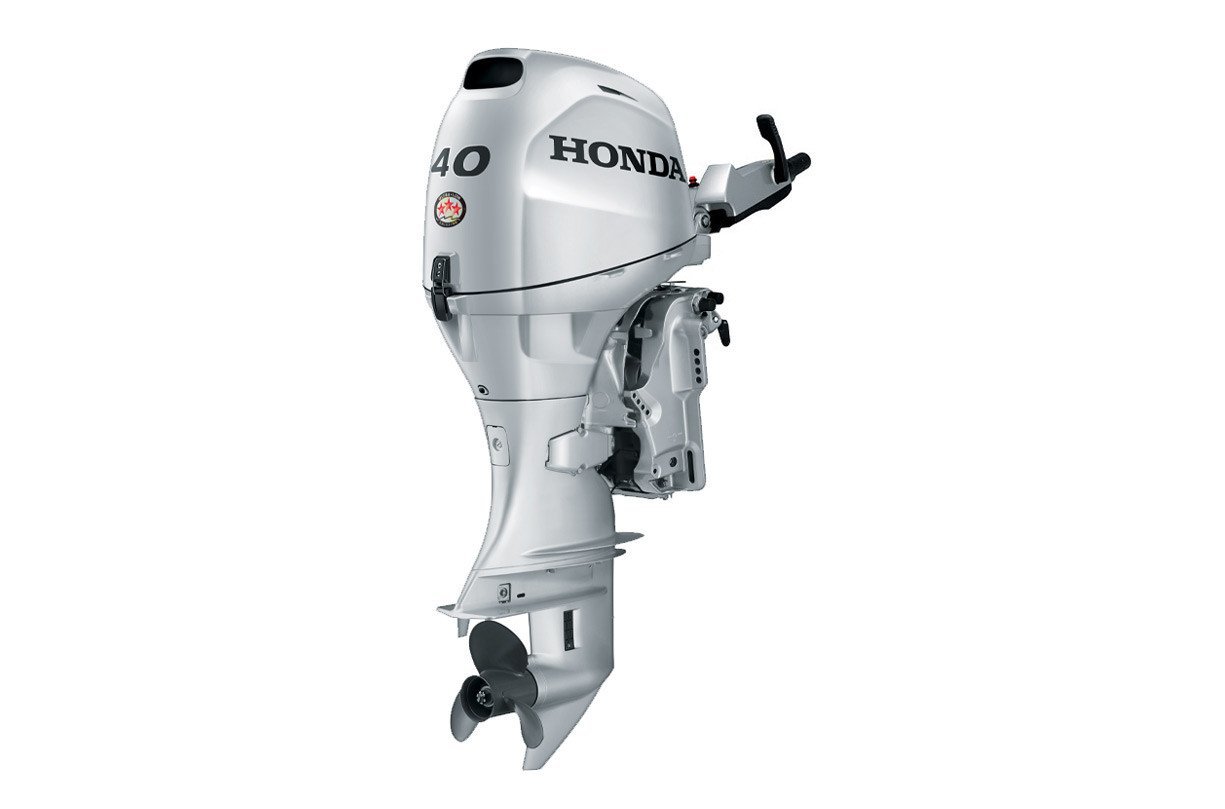

Honda BF40D4LHA 40HP Outboard – 20in Shaft, Tiller, Electric Start

Give Honda BF40D4LHA a place on a heavy aluminum fishing boat or work skiff when 40 HP, a 20-inch shaft, and tiller steering are required. Its 808 cc inline three-cylinder SOHC 4-stroke engine uses six valves and produces 40 HP at 5,500 RPM. Honda BF40D4LHA is a Signature Silver outboard with Programmed Fuel Injection, BLAST, electric starting, a multi-function tiller handle, and gas-assist or manual tilt. The long shaft is intended for compatible 20-inch transoms.

At 225 lbs dry, this tiller model should be included in the boat’s transom, trailer, and balance calculations. The 5,000–6,000 RPM full-throttle range provides a reference for propeller selection, while the 2.08:1 gear ratio supports standard forward, neutral, and reverse operation. Its 22-amp alternator provides 17 charging amps for supported electronics, lighting, pumps, and accessories. The listed 2.1 L engine oil capacity includes filter service, while gearcase lubricant and maintenance intervals should follow the Honda manual.

Key Features of Honda BF40D4LHA

• Fit the 20-inch long shaft to compatible aluminum fishing boats and work skiffs.
• 808 cc Engine — uses an inline three-cylinder SOHC 4-stroke configuration with six valves.
• 40 HP at 5,500 RPM provides a defined power option for properly rated hulls.
• 225 lbs dry weight requires suitable transom capacity and careful boat-balance planning.
• Programmed Fuel Injection with BLAST manages fuel delivery and specified low-speed acceleration response.
• Multi-Function Tiller Handle keeps steering and throttle control directly at the motor.
• Gas-Assist or Manual Tilt allows engine positioning during shallow-water operation and storage.
• 22 amps total with 17 charging amps support compatible onboard electrical equipment.

Why Choose the Honda BF40D4LHA

This model combines 40 HP with tiller control for operators who want direct command of a larger aluminum boat. Programmed Fuel Injection removes the need for carburetor adjustment, while gas-assist tilt helps with engine positioning when the boat is launched or stored.

• 40 HP supports properly rated work boats
• Tiller control keeps operation direct
• 17 charging amps support onboard accessories

Applications & Use Cases

Honda BF40D4LHA is intended for heavy aluminum fishing boats, work skiffs, and similar 20-inch-transom hulls. It can support fishing, shoreline utility work, harbor travel, and recreational boating when the vessel accepts the engine’s weight, horsepower, and tiller-control arrangement.

• Heavy aluminum fishing boats
• Work skiffs with long transoms
• 20-inch utility boat installations

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 2.1 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, tiller controls, and tilt service. Confirm warranty registration, service intervals, fluid quantities, and dealer support before purchase.
