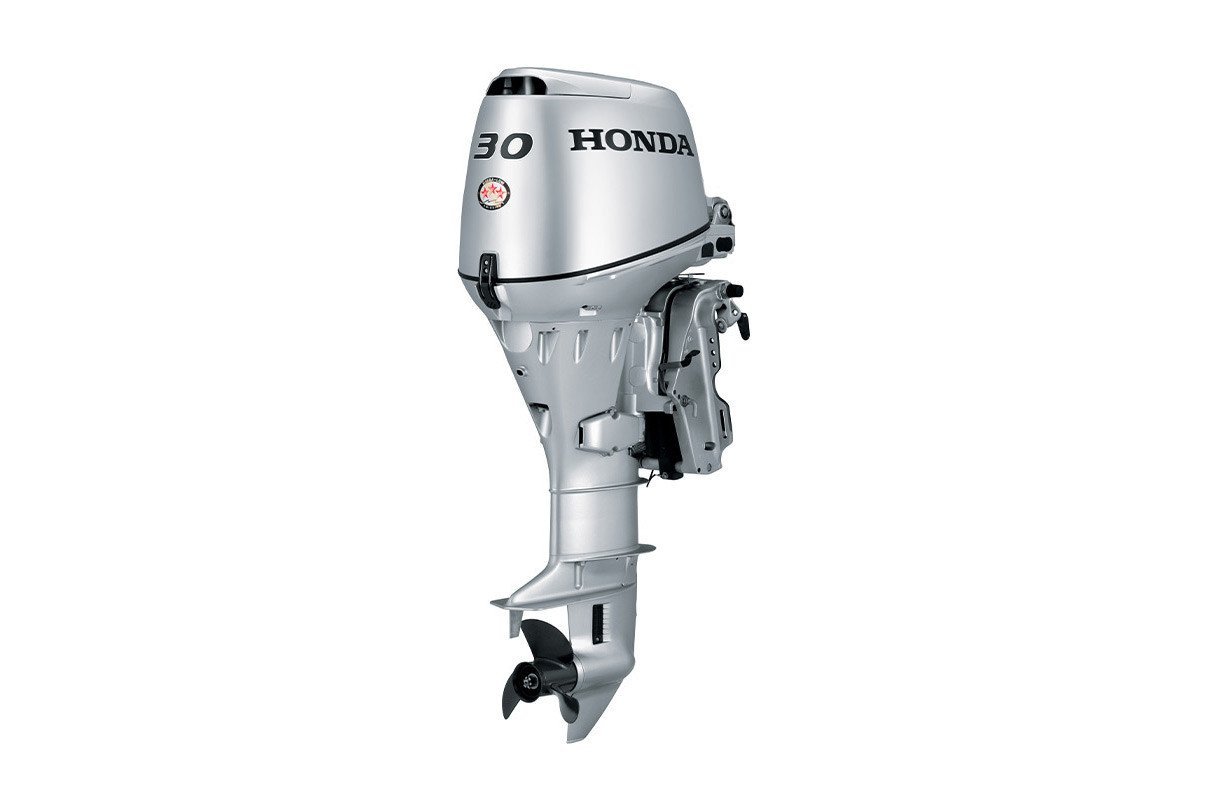

Honda BF30D3LRT 30HP Outboard – 20in Shaft, Remote Mechanical, Power Trim

Place Honda BF30D3LRT on a 20-inch-transom boat when remote mechanical control and Power Trim & Tilt are more important than a tiller-only layout. Its 552 cc inline three-cylinder SOHC engine produces 30 HP at 6,000 RPM and uses three carburetors with accelerator pumps. Honda BF30D3LRT is a Signature Silver 4-stroke outboard with electric starting, remote helm controls, and a 20-inch long shaft. The configuration is intended for compatible standard-transom boats.

At 160 lbs dry, the motor should be included in the boat’s transom and repower calculations. The 5,700–6,200 RPM full-throttle range helps guide propeller selection, while the 2.08:1 gear ratio supports forward, neutral, and reverse operation. Power Trim & Tilt lets the operator change the engine angle from compatible controls during acceleration, cruising, docking, and trailering. The listed 1.9 L oil capacity provides a reference for routine engine-oil service.

Key Features of Honda BF30D3LRT

• Fit the 20-inch long shaft to compatible boats with standard long transoms.
• Power Trim & Tilt — adjusts engine position from compatible remote controls during operation.
• 30 HP at 6,000 RPM comes from a 552 cc inline three-cylinder SOHC engine.
• 160 lbs dry weight requires suitable transom capacity and careful repower balance planning.
• Remote Mechanical Control keeps throttle and shifting available at the helm.
• Three carburetors with accelerator pumps manage fuel delivery within the supplied configuration.
• 61 x 63 mm bore and stroke identify the listed engine dimensions.
• 10-amp alternator provides electrical output for supported marine accessories.

Why Choose the Honda BF30D3LRT

This model is aimed at boaters who want 30 HP with helm-based operation and full trim adjustment. The 20-inch shaft matches compatible long transoms, while Power Trim & Tilt makes engine-angle changes more convenient during changing load and water conditions.

• Remote controls suit dedicated helm operation
• Power trim supports running-angle adjustment
• 30 HP fits properly rated boats

Applications & Use Cases

Honda BF30D3LRT is intended for small pontoons, fiberglass boats, aluminum fishing boats, and recreational hulls using a 20-inch transom. It can support fishing, family cruising, harbor travel, and general boating when the hull accepts the engine’s weight and horsepower.

• Small pontoons with long transoms
• Fiberglass boats using remote steering
• Fishing boats requiring Power Trim

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 1.9 L oil capacity, gearcase lubricant, filters, spark plugs, carburetor service, cooling-system checks, remote controls, and Power Trim & Tilt. Confirm warranty registration and dealer support before purchase.
