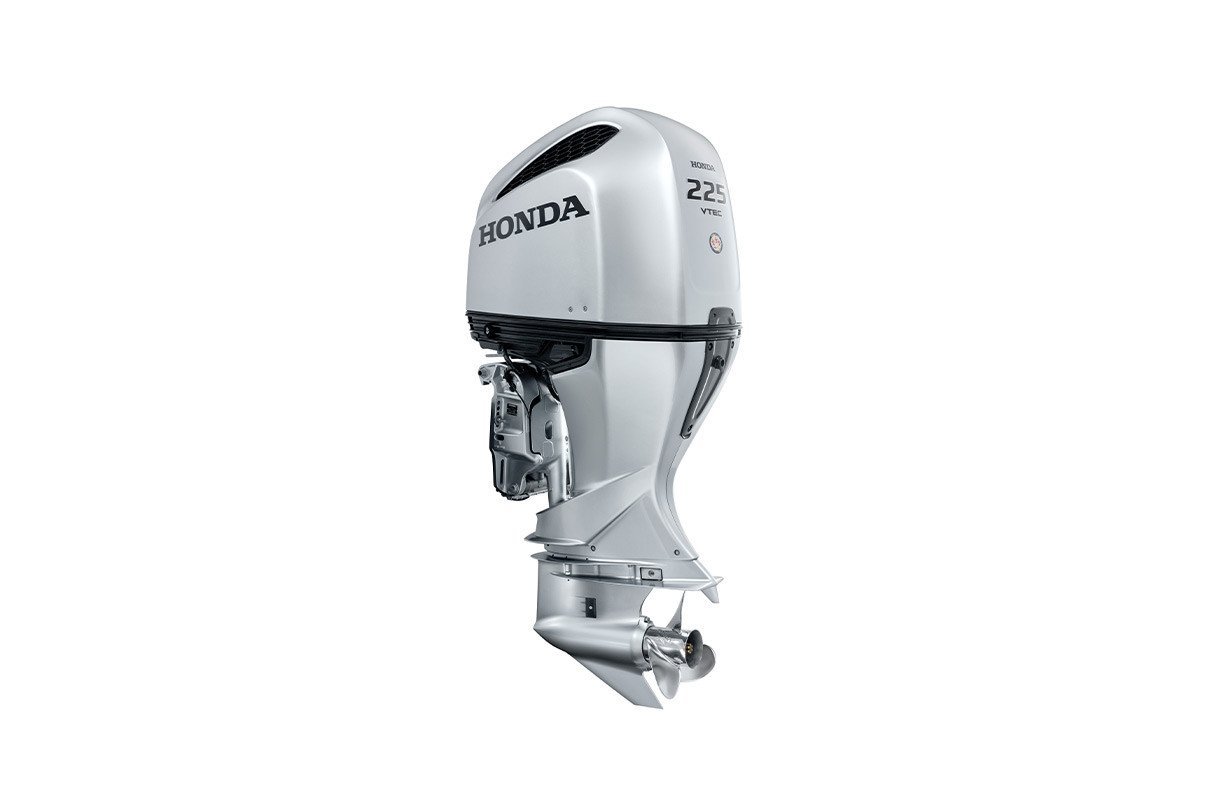

Honda BF225DXCDA 225HP Outboard – 25in Shaft, Counter Rotation, iST

Pair Honda BF225DXCDA with a compatible twin-engine offshore boat when a 25-inch shaft and port-side counter-rotation are required for an iST digital configuration. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DXCDA is a VTEC 4-stroke outboard with Programmed Fuel Injection, electric starting, Intelligent Shift and Throttle, and Power Trim & Tilt. The counter-rotation designation must correspond with the vessel’s approved twin-engine rigging.

At 613 lbs dry, the engine should be included in the combined weight of both engines, batteries, fuel, rigging, passengers, and equipment. Its 25-inch X-long shaft suits compatible tall transoms, while the 5,000–6,000 RPM full-throttle range provides a reference for propeller selection. The 90-amp alternator supplies 60 charging amps for supported navigation displays, pumps, lighting, and communication equipment. The listed engine oil capacity is 7.8 L with filter, while gearcase and iST service should follow the applicable Honda owner’s manual.

Key Features of Honda BF225DXCDA

• Fit the 25-inch X-long shaft to twin-engine boats designed for compatible tall transoms.
• Counter-Rotation iST — provides the listed port-side configuration for compatible digital twin systems.
• 225 HP at 5,500 RPM comes from a 3.6-liter V6 SOHC powerhead.
• 613 lbs dry weight affects combined transom capacity, balance, and total vessel loading.
• Intelligent Shift and Throttle provides drive-by-wire control for supported digital helm systems.
• Programmed Fuel Injection manages fuel delivery within the specified 24-valve 4-stroke engine.
• Power Trim & Tilt changes engine position during acceleration, cruising, docking, and trailering.
• 90 amps total with 60 charging amps support compatible offshore electronics.

Why Choose the Honda BF225DXCDA

This model has a specialized role in twin-engine offshore installations because the port-side position, counter-rotation, shaft length, and iST controls must all match the boat. When confirmed, the 225 HP V6 provides a clear propulsion option for the approved digital rig.

• Counter-rotation suits listed port-side twin use
• iST controls support digital helm systems
• 25-inch shaft fits compatible tall transoms

Applications & Use Cases

Honda BF225DXCDA is intended for port-side digital twin configurations on offshore fishing boats and other recreational vessels using 25-inch transoms. It can support offshore fishing, coastal cruising, and harbor travel when the vessel accepts the total engine weight and counter-rotation arrangement.

• Port-side digital twin installations
• Offshore fishing boats with tall transoms
• Recreational vessels using iST controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, iST controls, and counter-rotation components. Confirm twin-engine compatibility, registration, service intervals, and dealer support before purchase.
