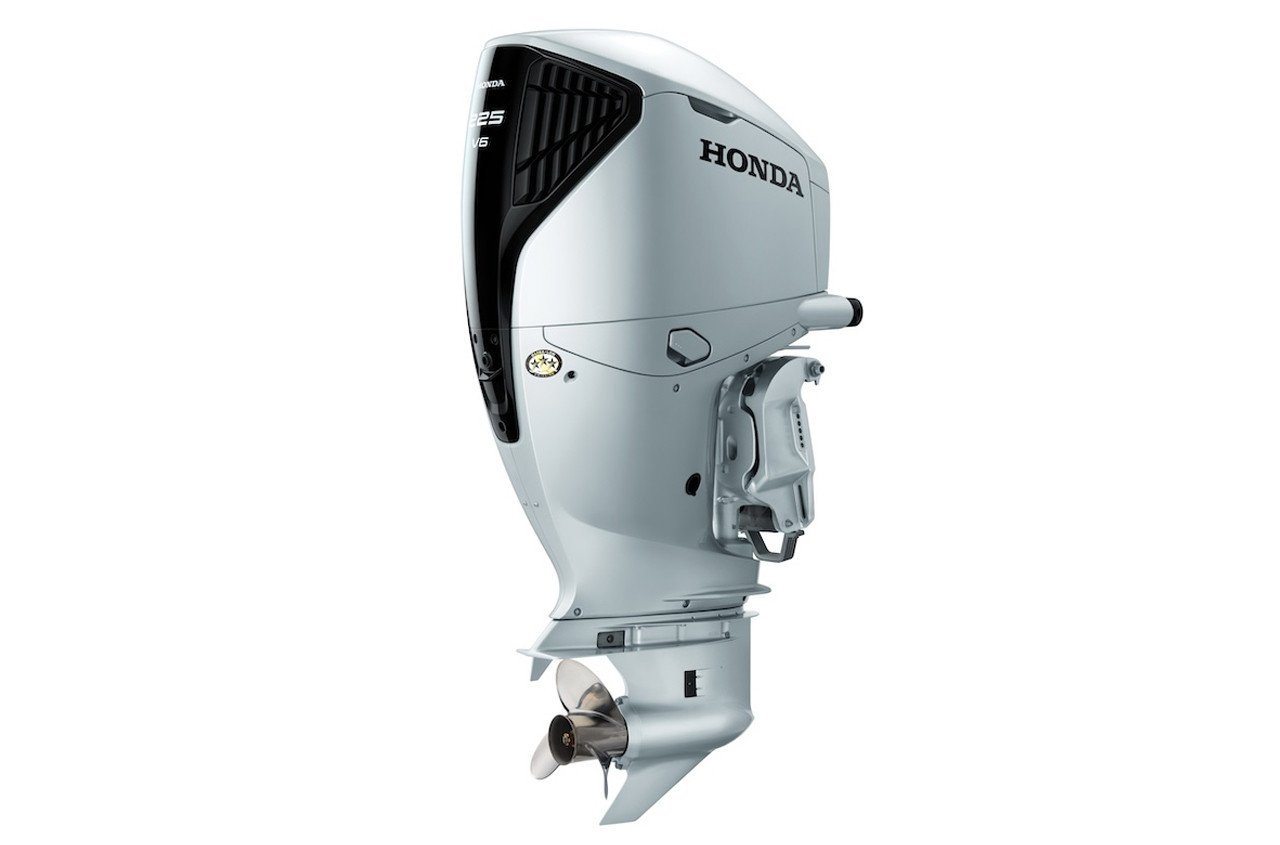

Honda BF225DK1XCRA 225HP Outboard – 25in Shaft, Counter Rotation

Equip Honda BF225DK1XCRA for a port-side twin-engine offshore installation when a 25-inch X-long shaft and mechanical counter-rotation are required. Its 3.6-liter, 60-degree V6 engine uses 24 valves and SOHC operation, producing 225 HP at 5,500 RPM. Honda BF225DK1XCRA is a Grand Prix White 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The counter-rotation layout is intended for compatible twin mechanical rigs.

At 613 lbs dry, each engine must be included in the complete twin-engine weight and balance calculation. The 5,000–6,000 RPM full-throttle range provides a reference for propeller setup, while the 2.00:1 gear ratio supports standard forward, neutral, and reverse operation. The 90-amp alternator supplies 60 charging amps for supported navigation, communication, and electrical equipment. Engine oil capacity is listed at 7.8 L with filter, while gearcase service should follow the Honda manual.

Key Features of Honda BF225DK1XCRA

• Mount the 25-inch X-long shaft on boats designed for compatible tall transoms.
• Counter-Rotation Drive — provides the listed port-side configuration for twin mechanical-control systems.
• V6 Powerhead — combines 3.6 liters, 24 valves, SOHC operation, and 225 HP output.
• 613 lbs dry weight requires careful twin-engine transom and repower planning.
• Programmed Fuel Injection manages fuel delivery throughout the supplied V6 4-stroke package.
• Remote Mechanical Control connects throttle and shifting to conventional helm rigging.
• Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
• 90 amps total with 60 charging amps support compatible onboard electrical systems.

Why Choose the Honda BF225DK1XCRA

The counter-rotation configuration gives this model a defined position in twin mechanical-control systems. Its 25-inch shaft addresses taller transom fitment, while the 225 HP V6 provides the output for properly rated offshore boats using conventional cable rigging.

• Counter-rotation supports listed port-side twin use
• Mechanical controls fit conventional rigging
• Grand Prix White finish suits selected boats

Applications & Use Cases

Honda BF225DK1XCRA is intended for port-side twin installations on offshore fishing boats and larger recreational hulls using compatible 25-inch transoms. It can support offshore fishing, coastal cruising, and harbor travel when the vessel accepts the twin-engine layout, combined weight, counter-rotation arrangement, and 225 HP output.

• Port-side twin offshore configurations
• Mechanical-control boats with tall transoms
• Offshore fishing and coastal cruising

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 7.8 L oil capacity with filter, gearcase lubricant, filters, spark plugs, cooling-system checks, mechanical controls, Power Trim & Tilt, and counter-rotation service. Confirm twin-engine compatibility, registration, and dealer support before purchase.
