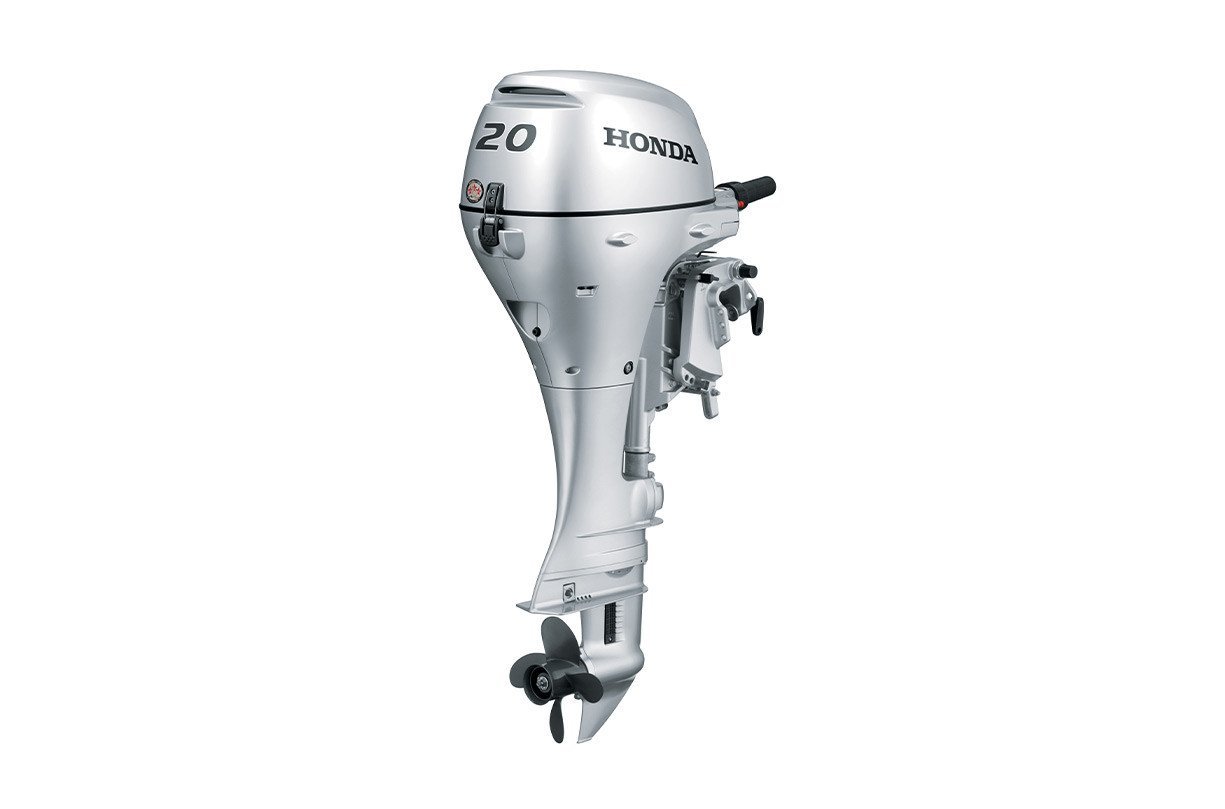

Honda BF20D3SHT 20HP Outboard – 15in Shaft, Tiller, Electric Start, Power Tilt

Operate Honda BF20D3SHT when a short-transom skiff needs 20 HP, electric starting, a multi-function tiller, and integrated power tilt. Its 350 cc inline two-cylinder SOHC 4-stroke engine produces 20 HP at 5,000 RPM and uses a single carburetor with accelerator pump. Honda BF20D3SHT is a Signature Silver portable outboard with a 15-inch short shaft, electric starting, Power Tilt, and direct tiller steering. This configuration suits small boats where remote controls are not required.

The 115-lb dry weight should be included in transom and transport calculations, especially when an electric-start battery is added. The engine operates across a 5,000–6,000 RPM full-throttle range, giving owners a reference for propeller selection. Its 2.08:1 gear ratio supports standard forward, neutral, and reverse operation, while the 12-amp alternator supplies charging output for supported accessories. The listed crankcase oil capacity is 1.1 L, with gearcase and control service guided by the Honda manual.

Honda BF20D3SHT Electric-Start 15-Inch Outboard with Power Tilt

• Fit the 15-inch short shaft to boats designed for compatible short-transom mounting.
• Power Tilt — adjusts engine position during launching, docking, shallow-water travel, and storage.
• 20 HP at 5,000 RPM comes from a 350 cc two-cylinder SOHC 4-stroke engine.
• 115 lbs dry weight requires attention to transom capacity, battery placement, and boat balance.
• Electric Start operates through the multi-function tiller arrangement supplied for this model.
• Single Carburetor with Accelerator Pump controls fuel delivery within the listed configuration.
• 12-amp alternator provides charging output for compatible small-boat electronics and accessories.
• Use the 5,000–6,000 RPM range when checking propeller and load setup.

Why Choose the Honda BF20D3SHT

This version combines a short shaft with electric starting and Power Tilt for small boats that still use tiller steering. It provides more convenient engine positioning than a manual-tilt model, while the 20 HP rating gives properly matched skiffs useful propulsion.

• Power tilt reduces manual engine handling
• Electric start supports frequent launching
• 15-inch shaft fits short transoms

Applications & Use Cases

Honda BF20D3SHT is intended for small skiffs, aluminum fishing boats, utility boats, and compact recreational hulls using a 15-inch transom. It can support fishing, shoreline travel, harbor movement, and short trips when the boat accepts the engine’s weight, battery requirements, and 20 HP output.

• Small skiffs with short transoms
• Aluminum fishing boats using tiller control
• Utility boats requiring Power Tilt

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 1.1 L crankcase oil capacity, gearcase lubricant, spark plugs, carburetor, cooling system, battery, Power Tilt, and tiller controls. Confirm service intervals, warranty registration, battery requirements, and dealer support before purchase.
