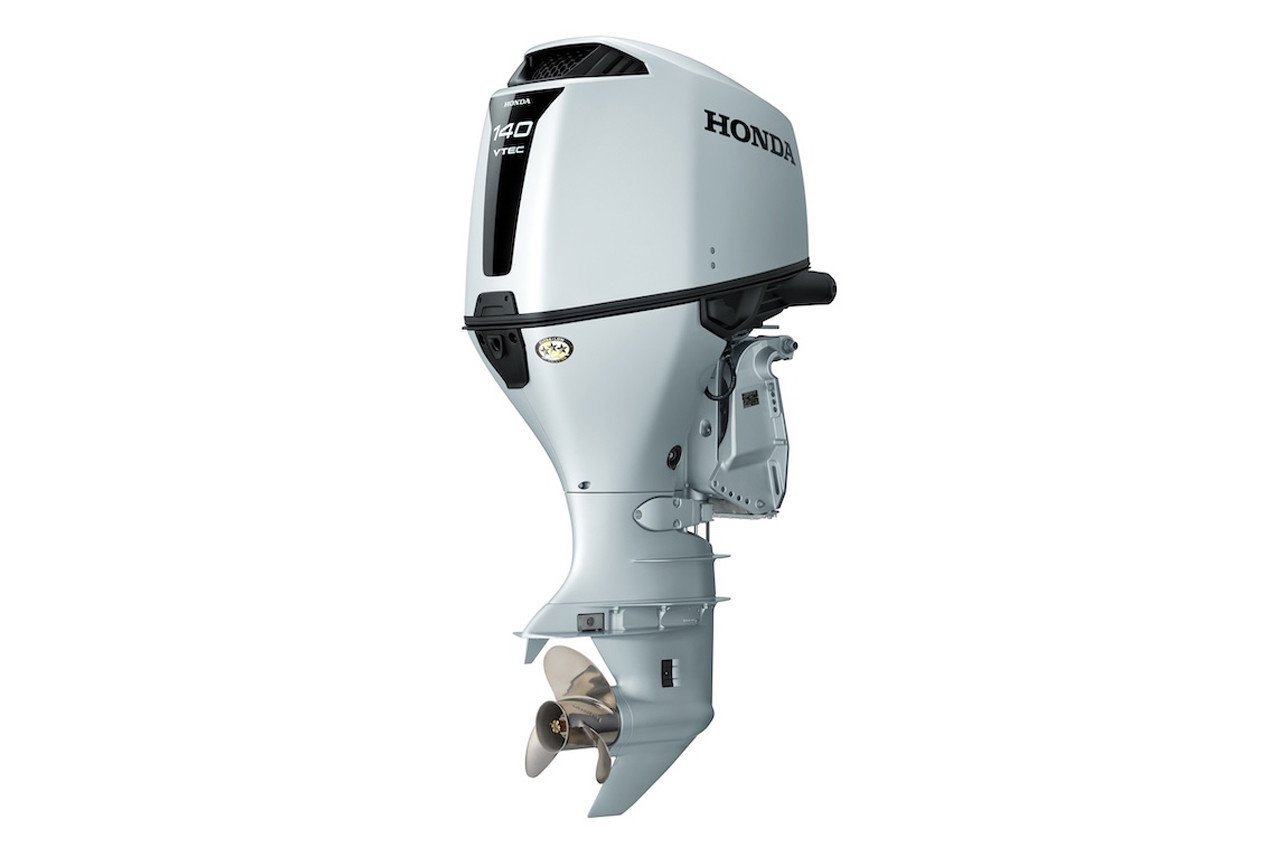

Honda BF140AK1LRA 140HP Outboard – 20in Shaft, Remote Mechanical, VTEC

Install the Honda BF140AK1LRA 140HP Outboard when a bass boat or aluminum sport hull needs 140 horsepower with traditional remote mechanical controls and a 20-inch shaft. Its 2,354 cc inline four-cylinder DOHC engine uses 16 valves and VTEC technology, producing 140 HP at 5,500 RPM. Honda BF140AK1LRA is a Signature Silver 4-stroke outboard with Programmed Fuel Injection, electric starting, remote mechanical control, and Power Trim & Tilt. The long shaft suits compatible standard transoms.

At 472 lbs dry, this model should be included in the boat’s repower and balance calculations before installation. The 5,000–6,000 RPM full-throttle range provides a useful reference when selecting and checking the propeller. The 2.14:1 gear ratio supports normal forward, neutral, and reverse operation. A 40-amp alternator provides 30 charging amps for supported electronics, lighting, pumps, and accessories. The listed engine oil capacity is 6.7 L with filter.

Honda BF140AK1LRA 20-Inch Mechanical-Control Outboard for Sport Hulls

• Fit the 20-inch long shaft to bass boats and sport hulls with compatible transoms.
• VTEC Engine — combines a 2,354 cc DOHC four-cylinder layout with 16-valve operation.
• 140 HP at 5,500 RPM gives properly rated boats a defined high-output power option.
• 472 lbs dry weight affects transom capacity, balance, trailer loading, and repower planning.
• Programmed Fuel Injection controls fuel delivery within the supplied 4-stroke engine package.
• Remote mechanical controls maintain conventional throttle and shifting through the boat’s helm rigging.
• Power Trim & Tilt changes engine angle during acceleration, cruising, docking, and trailering.
• 40 amps total and 30 charging amps support compatible onboard electrical equipment.

Why Choose the Honda BF140AK1LRA

This configuration is suited to owners who prefer mechanical controls and need more output than a 115 HP model. The 20-inch shaft fits a common long-transom layout, while VTEC, PGM-FI, and the 140 HP rating provide a defined engine package for properly matched sport hulls.

• 140 HP suits approved bass and sport boats
• Mechanical controls simplify conventional rigging
• 20-inch shaft fits compatible long transoms

Applications & Use Cases

Honda BF140AK1LRA is intended for bass boats, aluminum sport hulls, fishing boats, and similar recreational vessels using a 20-inch transom. It can support tournament-style fishing, lake cruising, family boating, and general recreation when the boat’s horsepower and weight limits approve the installation.

• Bass boats with compatible long transoms
• Aluminum sport hulls requiring 140 HP
• Freshwater fishing with mechanical controls

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for the 6.7 L engine oil capacity with filter, gearcase lubricant service, filters, spark plugs, cooling-system inspection, mechanical controls, and Power Trim & Tilt. Confirm registration, labor coverage, dealer support, and regional warranty terms before purchase.
