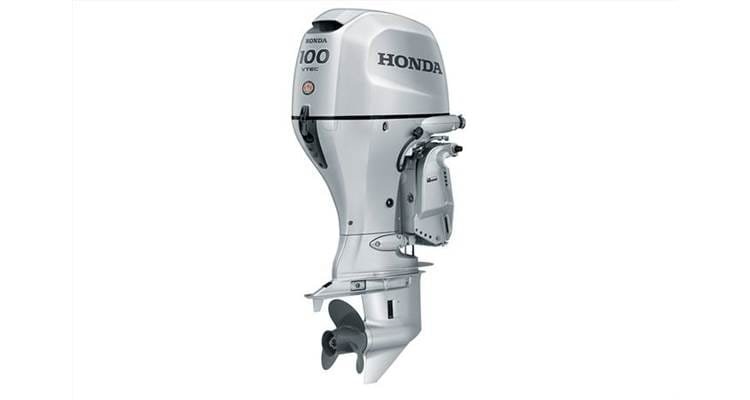

Honda BF100AK1XRTC 100HP 4-Stroke Outboard – 25in Shaft, VTEC

Install the Honda BF100AK1XRTC 100HP 4-Stroke Outboard when a boat requires a 25-inch shaft and carries a manufacturer-approved 100 HP rating. Its 1,496 cc inline four-cylinder engine provides practical propulsion for compatible center consoles, pontoons, and other recreational hulls carrying passengers, fishing equipment, and standard onboard loads. Honda BF100AK1XRTC combines VTEC, Programmed Fuel Injection, electric starting, remote steering compatibility, and Power Trim and Tilt. The X-long shaft is the primary distinction from the 20-inch configuration.

Before rigging, include the 379-lb dry weight in the boat’s transom and balance calculations. Rated output reaches 100 HP at 5,900 RPM, with a full-throttle range of 5,500 to 6,300 RPM for checking engine and propeller setup. The 44-amp alternator supplies 35 charging amps for supported marine equipment. The 2.33:1 gear ratio supports standard forward, neutral, and reverse operation through the remote control arrangement.

Honda BF100AK1XRTC X-Long Shaft Outboard for Taller Transoms

• Choose the 25-inch X-long shaft for boats requiring taller transom mounting.
• Rated Output — delivers 100 HP at 5,900 RPM for approved recreational hulls.
• VTEC and PGM-FI operate within the 1,496 cc four-cylinder SOHC 4-stroke engine.
• 379 lbs dry weight affects transom strength, balance, and installation planning.
• Remote steering compatibility keeps primary direction control available at the helm.
• Trim Equipment — Power Trim and Tilt adjusts engine angle during acceleration, cruising, docking, and trailering.
• NMEA 2000 compatibility connects supported navigation and engine-monitoring equipment.

Reasons to Choose Honda BF100AK1XRTC

The X-long shaft makes this model suitable for boats where a 20-inch version would not provide the intended mounting height. Once the transom is confirmed, the 100 HP rating gives the hull a specific propulsion choice for recreational loads. The charging system and electronic features add practical support for boats carrying navigation and monitoring equipment.

• 25-inch shaft fits compatible extra-long transoms
• 100 HP output suits properly rated recreational boats
• 35 charging amps support onboard electrical accessories

Applications & Use Cases

Use Honda BF100AK1XRTC on center consoles, pontoons, and other recreational boats designed around a 25-inch transom. It suits fishing excursions, family boating, coastal cruising, and harbor travel when the hull supports its weight and horsepower. Verify mounting height, steering hardware, controls, and propeller fitment before installation.

• Tall-transom center consoles for coastal recreation
• Pontoons using compatible 25-inch shaft installations
• Fishing trips with remote steering operation

Warranty, Support & Maintenance

The supplied product information lists a 5-year non-declining standard warranty. Follow the applicable Honda owner’s manual for engine oil service, gearcase lubricant changes, filter replacement, cooling-system inspection, spark plug checks, and control adjustments. Exact fluid quantities and service intervals should be verified for the serial-number range with an authorized Honda Marine dealer.
