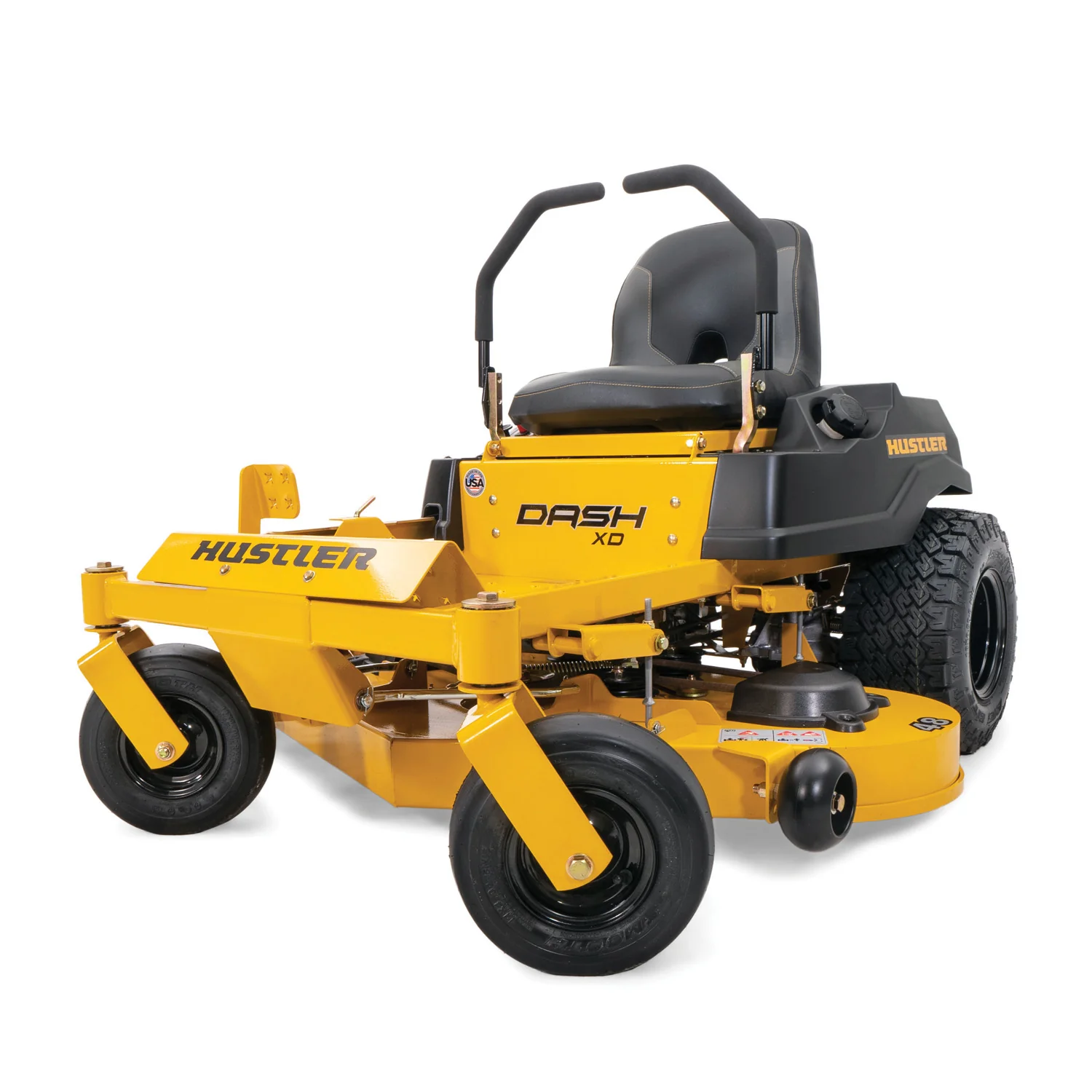

Hustler Dash XD 34in 15HP Kawasaki Zero Turn Mower – Residential
Built simple, Hustler Dash XD packs 15 horsepower. A 34-inch deck backs it up, and a Kawasaki engine drives it. Tight turning keeps trim work to a minimum.
- Puts 15 horsepower behind every pass
- 34 inches wide, fewer passes needed
- Residential-grade build fits regular yard care
- A Kawasaki engine powers every pass
- Built ground-up as a zero turn mower
Description
Cutting through narrow backyard gates, the Hustler Dash XD 34in 15HP Kawasaki zero turn mower powers into restricted residential turf areas without sacrificing fabricated deck durability. Suburban homeowners face constant frustration when standard zero-turn mowers are too wide to pass through 36-inch garden gates, forcing them to push heavy walk-behinds on hot afternoons. This compact machine combines a heavy welded 11-gauge steel cutting deck with a reliable 15HP Kawasaki V-twin engine, maintaining clean cutting performance at forward speeds up to 6 MPH.
Hydro-Gear mechanical transaxles deliver smooth directional steering control through patented SmoothTrak lap bars, tracking straight along property perimeters and executing clean zero-radius pivots around landscaping beds. The fabricated 34-inch cutting deck features reinforced leading edges that withstand concrete curb scrapes and fence post collisions. An intuitive foot-operated deck lift system allows operators to adjust cutting height across distinct positions with minimal physical effort.
Key Engineering Features of Hustler Dash XD 34in
- 34-Inch Fabricated 11-Gauge Steel Deck: Welded plate steel construction with reinforced leading edges to survive daily residential impacts.
- 15HP Kawasaki Commercial V-Twin Engine: Supplies reliable combustion displacement to power through thick grass without RPM fade.
- SmoothTrak Twin-Lever Steering System: Provides precision zero-turn control with integrated automatic parking brakes in the levers.
- Foot-Operated Mechanical Deck Lift: Adjusts cut heights quickly across distinct positions ranging from 1.5 to 4.5 inches.
- Fully Welded Tubular Steel Frame: Resists chassis torsional flex when crossing ditches and uneven property transitions.
- Compact 34-Inch Mower Profile: Designed to clear standard 36-inch residential privacy gates with the discharge chute upright.
Field Durability & Operational Economy
Built for compact residential properties, this fabricated-deck zero-turn mower provides rugged durability with low maintenance overhead.
- A fully fabricated 11-gauge deck structure resists dents and cracks from tree roots and yard debris far better than stamped steel.
- The clean-burning Kawasaki engine features cast-iron cylinder liners that resist heat wear during midsummer afternoon mowing.
- Sealed hydrostatic drive units require zero fluid maintenance, saving owners time and shop service expenses each season.
Acreage Productivity & Gate Navigation
Measuring 35 inches wide with the discharge chute raised and weighing 470 pounds dry, this compact zero-turn mower navigates standard 36-inch residential privacy gates easily and fits inside standard residential garage bays without crowding storage space.
Warranty Coverage & Field Maintenance
- Hustler backs this Dash XD mower with a 3-Year or 300-hour limited residential warranty covering the deck, frame, and transaxles.
- The Kawasaki engine receives full 3-Year manufacturer warranty backing through authorized dealer service centers nationwide.
Change engine oil after the initial 20 operating hours, then service every 50 hours with 10W-30 motor oil. Inspect the air filter cartridge monthly, check drive tire pressure at 12 PSI, and sharpen blades regularly for clean cuts. Order the Hustler Dash XD 34in 15HP Kawasaki zero turn mower from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
Hustler Dash XD 34" Zero Turn (15HP Kawasaki) Specs
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Hustler Dash XD Series |
| Full SKU/Model | 940742 (Kawasaki FR541V) |
| Country of Origin | USA |
| Engine Brand & Model | Kawasaki FR541V |
| Displacement (cc) | 603 cc |
| Horsepower/Torque | 15 HP at 3600 RPM |
| Fuel Capacity (Gallons/L) | 2.0 Gallons (7.5 L) |
| Oil Capacity & Recommended Grade | 1.8 qt (1.7 L) / SAE 10W-30 |
| Oil Filter OEM Part Number | Kawasaki 49065-7007 |
| Spark Plug Type & Gap | NGK BPR4ES / 0.030" |
| Air Filter Type | Dual Element Paper |
| Starting System | Electric Start |
| Transmission Model | Hydro-Gear ZT-1800 |
| Transmission Oil Type | Sealed Maintenance-Free |
| Max Forward Speed (mph/kmh) | 6.0 mph (9.6 km/h) |
| Max Reverse Speed (mph/kmh) | 3.0 mph (4.8 km/h) |
| Cutting Width (Inches) | 34 Inches |
| Deck Construction (Gauge & Type) | 11-Gauge Fabricated Steel |
| Cutting Height Range | 1.5" - 4.5" |
| Height Adjustment Positions | Foot Operated (Multiple) |
| Number of Blades | 2 Blades |
| Blade Tip Speed (fpm) | 18,000 fpm |
| Blade Bolt Torque (ft-lbs) | 65 ft-lbs |
| Spindle Housing Material | Aluminum |
| Front Tire Size | 11 x 4-5 |
| Rear Tire Size | 18 x 6-8 |
| Seat Type & Suspension | Premium Bolstered High-Back w/ Springs |
| Dry Weight (lbs/kg) | 465 lbs (211 kg) |
| Commercial/Residential Warranty | 2-Year / 200-Hour Residential Limited |
| SEO Usage Profile (Terrain & Max Acreage) | Residential; Small Yards/Narrow Gates; Up to 1 Acre |
