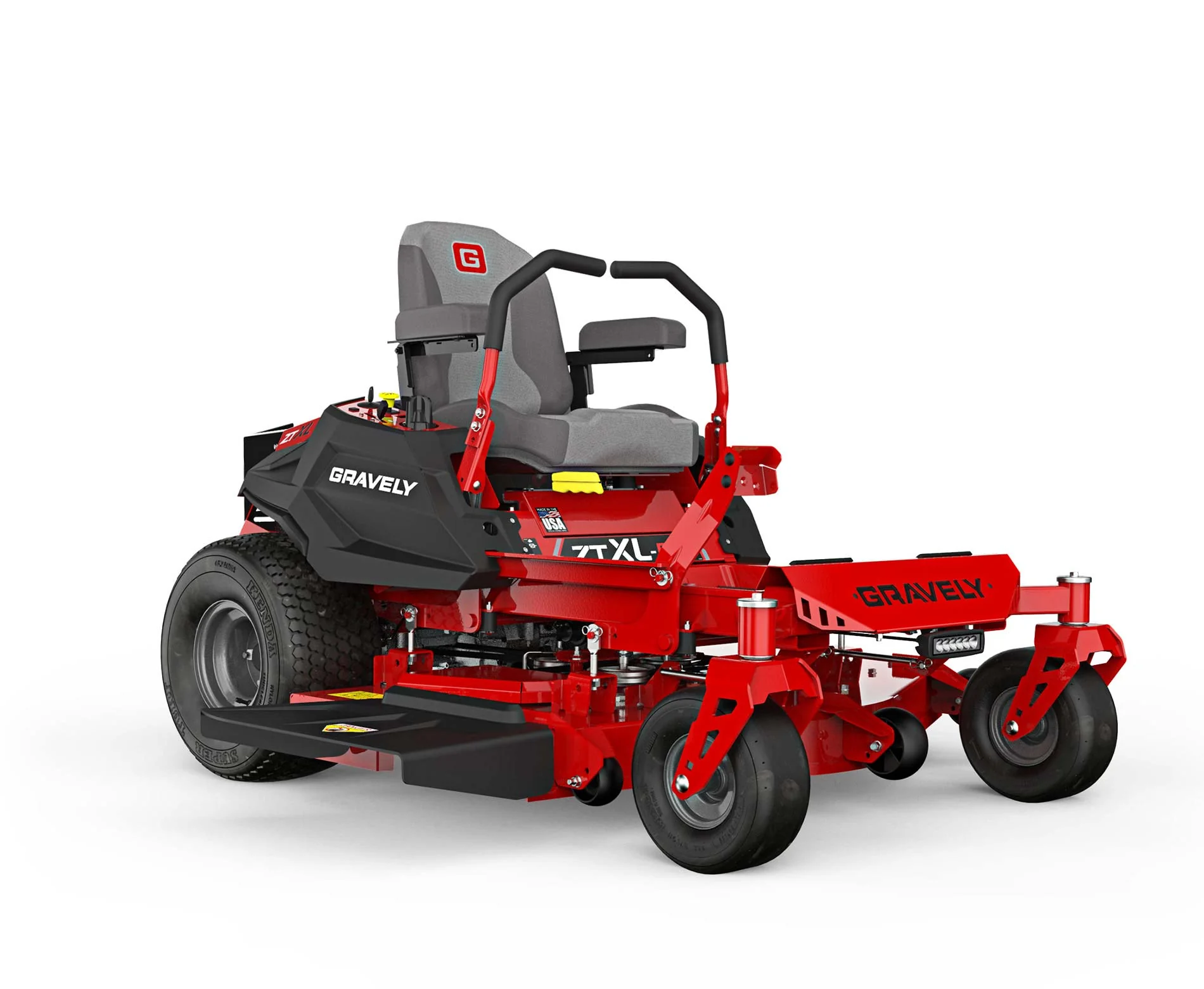

Gravely ZT XL 52 23HP Kawasaki Premium Commercial Zero Turn Mower 915263
$2,705.00
In Stock
Gravely ZT XL 52" Zero Turn (23HP Kawasaki) Specs - Model 915263
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Gravely ZT XL Series (Previous Gen) |
| Full SKU/Model | 915263 (Kawasaki FR691V) |
| Country of Origin | USA |
| Engine Brand & Model | Kawasaki FR691V |
| Displacement (cc) | 726 cc |
| Horsepower/Torque | 23 HP at 3600 RPM |
| Fuel Capacity (Gallons/L) | 2.8 Gallons (10.6 L) |
| Oil Capacity & Recommended Grade | 2.1 qt (2.0 L) / SAE 10W-40 |
| Oil Filter OEM Part Number | Kawasaki 49065-7007 |
| Spark Plug Type & Gap | NGK BPR4ES / 0.030" |
| Air Filter Type | Dual Element Paper |
| Starting System | Electric Start |
| Transmission Model | Hydro-Gear ZT-2800 (Serviceable) |
| Transmission Oil Type | 20W-50 Synthetic Motor Oil |
| Max Forward Speed (mph/kmh) | 7.0 mph (11.3 km/h) |
| Max Reverse Speed (mph/kmh) | 3.0 mph (4.8 km/h) |
| Cutting Width (Inches) | 52 Inches |
| Deck Construction (Gauge & Type) | 11-Gauge Fabricated Steel |
| Cutting Height Range | 1.5" - 4.5" |
| Height Adjustment Positions | Foot Operated / 7 Positions |
| Number of Blades | 3 Blades |
| Blade Tip Speed (fpm) | 18,000 fpm |
| Blade Bolt Torque (ft-lbs) | 115 ft-lbs |
| Spindle Housing Material | Forged Aluminum |
| Front Tire Size | 11 x 4-5 |
| Rear Tire Size | 20 x 10-10 |
| Seat Type & Suspension | High-Back w/ Armrests & Springs |
| Dry Weight (lbs/kg) | 635 lbs (288 kg) |
| Commercial/Residential Warranty | 3-Year / 300-Hour Residential |
| SEO Usage Profile (Terrain & Max Acreage) | Residential; Large Yards; Up to 3.5 Acres |
Gravely ZT XL 52 (915263) Included:
- 1x New Premium Residential Zero Turn Mower
- 1x High Output 23HP Kawasaki Engine
- 1x X-Factor 11-Gauge Fabricated Steel Deck
- 2x Upgraded Hydro Gear ZT-2200 Transmissions
- 1x Premium High Back Plush Comfort Seat
- 1x Official Gravely Residential Equipment Warranty
- 1x Technical Zero Turn Mower Manual
