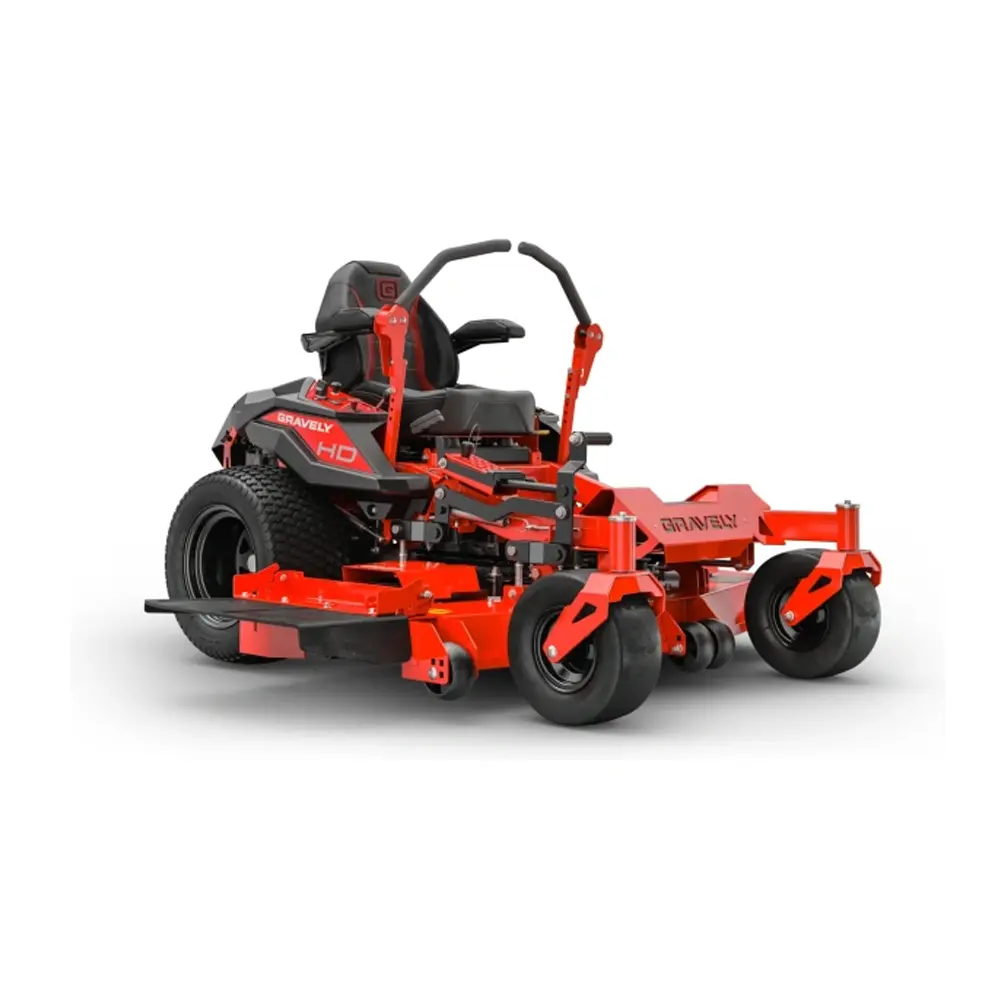

Gravely ZT HD 60 26HP Kohler Heavy Duty Zero Turn Riding Mower 991278
Gravely ZT HD 52" Zero Turn (25HP Kohler) Specs
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Gravely ZT HD Series |
| Full SKU/Model | 991276 (Kohler KT740) |
| Country of Origin | USA |
| Engine Brand & Model | Kohler® 7000 Series™ Smart-Choke™ |
| Displacement (cc) | 725 cc |
| Horsepower/Torque | 25 HP at 3600 RPM |
| Fuel Capacity (Gallons/L) | 5.0 Gallons (18.9 L) |
| Oil Capacity & Recommended Grade | 2.0 qt (1.9 L) / SAE 10W-30 |
| Oil Filter OEM Part Number | Kohler 12 050 01-S |
| Spark Plug Type & Gap | Champion RC12YC / 0.030" |
| Air Filter Type | Dual Element Paper |
| Starting System | Electric Start |
| Transmission Model | Hydro-Gear ZT-3100 (Serviceable) |
| Transmission Oil Type | 20W-50 Synthetic Motor Oil |
| Max Forward Speed (mph/kmh) | 8.0 mph (12.9 km/h) |
| Max Reverse Speed (mph/kmh) | 3.0 mph (4.8 km/h) |
| Cutting Width (Inches) | 52 Inches |
| Deck Construction (Gauge & Type) | 10-Gauge Fabricated Steel |
| Cutting Height Range | 1.5" - 5.0" |
| Height Adjustment Positions | Foot Operated / 15 Positions |
| Number of Blades | 3 Blades |
| Blade Tip Speed (fpm) | 18,000 fpm |
| Blade Bolt Torque (ft-lbs) | 115 ft-lbs |
| Spindle Housing Material | Forged Aluminum |
| Front Tire Size | 13 x 6.5-6 |
| Rear Tire Size | 20 x 10-10 |
| Seat Type & Suspension | Premium High-Back w/ Armrests & Springs |
| Dry Weight (lbs/kg) | 825 lbs (374 kg) |
| Commercial/Residential Warranty | 4-Year / 500-Hour Residential Limited |
| SEO Usage Profile (Terrain & Max Acreage) | Heavy-Duty Residential; High HP Option; Up to 4.5 Acres |
Gravely ZT HD 25HP Included:
- 1x New Heavy Duty Zero Turn Mower
- 1x High Output 25HP Kohler Engine
- 1x X-Factor 10-Gauge Fabricated Steel Deck
- 2x Hydro Gear ZT-3100 Hydrostatic Transmissions
- 1x Adjustable High Back Comfort Cushion Seat
- 1x Foot Operated Quick Deck Lift
- 1x Official Gravely Residential Equipment Warranty
- 1x Technical Zero Turn Mower Manual
