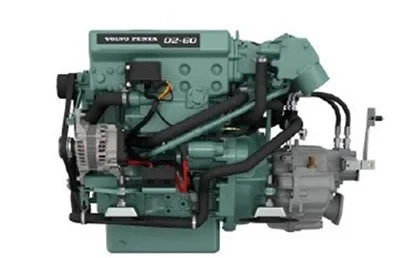

Volvo Penta D2-60 Sailboat Inboard Marine Diesel Engine

Description

During prolonged open-ocean motoring against steep head seas, the Volvo Penta D2-60 Sailboat Inboard supplies dependable auxiliary thrust. This 4-Cylinder 2.2L turbocharged diesel produces 60BHP at 3,000 RPM for sailboats from 38ft to 46ft. Mechanical inline unit injection pumps eliminate electronic sensor failures. Skippers must perform freshwater wash cycles on the charge-air cooler after salt seasons.

ASTM gray iron forms the rigid parent-bore cylinder block and cast iron overhead-valve cylinder head. The engine features an isolated negative ground 12V marine electrical network, pairing a 12V 2.0 kW starter motor with a high-capacity 12V 115A alternator featuring an external charge sensor wire. Bare dry weight totals 507 lbs without transmission oil. The compact mounting envelope spans 28.3in length, 21.4in width, and 24.0in height, holding 1.72 US gal lube oil.

Key Features of Volvo Penta D2-60

Sailboat owners buy Volvo Penta D2-60 sailboat engines to repower offshore yachts with modern turbocharged thrust. This bare marine powertrain matches custom reduction gearboxes on shaft-driven cruising sloops.

• Exhaust gas turbocharger packs dense air charge into induction runners for elevated low-end cruise torque.
• Seawater charge-air cooler drops compressed inlet air heat to enhance fuel burn efficiency.
• Cam-driven mechanical inline unit injection pumps eliminate delicate engine control modules in blue water.
• Universal flywheel bellhousing couples to Volvo Penta MS25, HS25A, or ZF marine transmissions.
• Sound-dampened intake silencer housing suppresses high-frequency air induction whistle during full-throttle navigation.
• Isolated negative ground 12V 115A alternator charges massive domestic house battery banks at anchor.
• EPA Tier 3 certification satisfies strict global emissions rules in pristine coastal harbors.

Dynamometer Output Thermal Test Data

Dynamometer calibration proves 55BHP continuous rating at 2,800 RPM and 60BHP maximum rating at 3,000 RPM. The exhaust gas turbocharger forces 1.1 bar boost into the cylinders, holding exhaust manifold temperature under 960°F. Crankshaft main journal runout measures 0.0004in TIR across induction-hardened bearing pins. Oil pressure registers 62 PSI at 182°F freshwater heat exchanger stabilization. The engine tolerates continuous 30° static inclination angles without sump starvation, maintaining consistent oil flow to camshaft bearing journals during steep heel.

Vessel Installation Maintenance Service Rules

Mechanical governor controls require 8 lbs actuation force for crisp throttle sweeps on standard pedestal levers. Cruising yacht skippers select this sailboat repower engine for deep ocean passages, but boat mechanics must not install this bobtail unit in light displacement racing skiffs, flat-bottom jon boats, or unventilated engine rooms lacking 120 CFM combustion air flow.

• Clean charge-air cooler core tubes and check seawater impeller condition every 250 operating hours.
• Drain crankcase engine oil and screw on fresh spin-on filters every 200 run hours.
• Inspect turbocharger turbine housing and check alternator belt tension every 500 operating hours.

Factory Warranty Shipping Crate Details

Volvo Penta includes a 2-Year factory limited warranty backed by a 3-Year major casting component structural guarantee. The export wooden crate contains the tested D2-60 bobtail engine, 12V 115A marine alternator, 12V electric starter, four rubber isolation mounts, instrument panel harness, and complete technical installation manuals.
