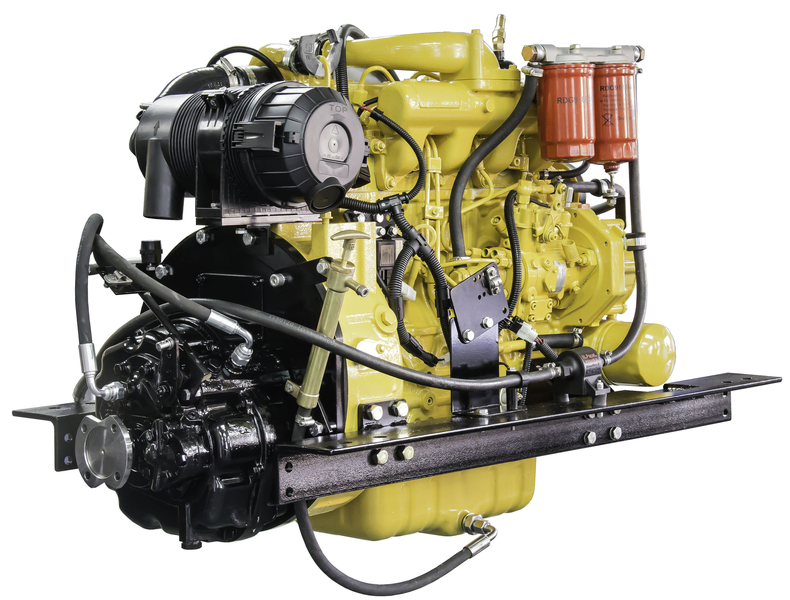

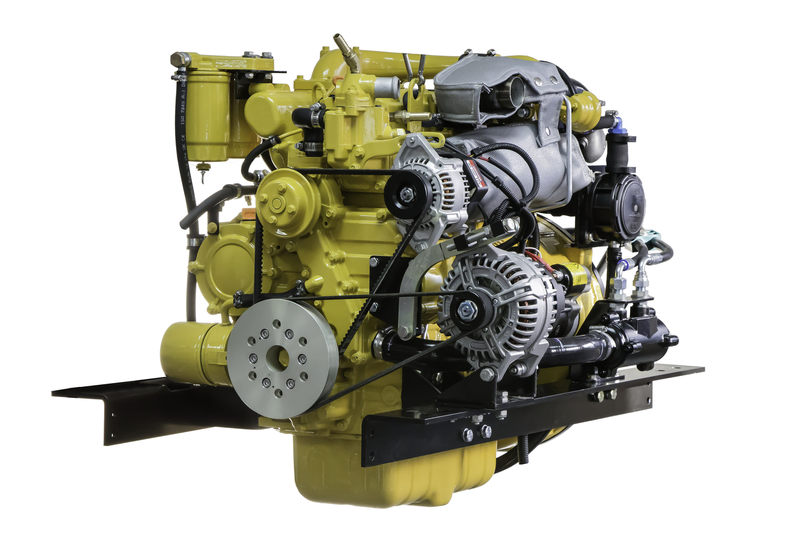

Shire 65 Keel-Cooled Narrowboat Marine Diesel Engine
$5,771.00
In Stock
Shire 65 Narrowboat Specs
| Manufacturer / Brand | E.P. Barrus (Shire Marine) |
| Model Designation | Shire 65 Keel-Cooled |
| Engine Type | 4-Stroke High-Output Narrowboat Marine Diesel |
| Cylinder Configuration | Inline-4 |
| Total Displacement | 3.3 Liters (203 cu in) |
| Bore x Stroke | 98.0 x 110.0 mm (3.86 x 4.33 in) |
| Aspiration & Charge Air | Turbocharged with Low-Restriction Marine Intake Silencer |
| Cooling System Architecture | Keel-Cooled Closed Skin-Tank System with Expansion Header Tank |
| Continuous Power Rating (P1) | 58 BHP (43 kW) @ 2,400 RPM |
| Maximum / Intermittent Power (P3/P4) | 65 BHP (48 kW) @ 2,500 RPM |
| Fuel Injection Platform | Mechanical Direct Fuel Injection with In-Line Multi-Plunger Pump and Governor |
| Cylinder Head Metallurgy | Monobloc Cast Iron Cylinder Block with Cast Iron Overhead Valve (OHV) Cylinder Head |
| Cylinder Liners | Cast Iron Engine Block with Integrated Parent Bores |
| Flywheel Housing & Flywheel | SAE 4 / Dedicated Marine Bellhousing with Heavy Torsional Drive Plate |
| Electrical System & Ground | 12V Negative Ground Marine Electrical System |
| Starter & Alternator Output | 12V 2.5 kW Electric Starter / Dual Alternators (12V 50A Starter + 12V 200A Domestic) |
| Lube Oil Sump Capacity | 10.2 Liters (2.69 US gal) |
| Engine Coolant Capacity | 11.0 Liters (2.91 US gal) |
| Dry Weight (excl. gearbox) | 280 kg (617 lbs) |
| Overall Dimensions (L x W x H) | 875 x 560 x 715 mm (34.4 x 22.0 x 28.1 in) |
| Emissions Certification | RCD 2 (Directive 2013/53/EU) / EPA Tier 4 / EU Stage V Non-Road |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Automotive Diesel (EN 590), B7 Biodiesel |
| Transmission / Outdrive Compatibility | Bare Engine Bobtail Keel-Cooled - Compatible with PRM (PRM 260 / PRM 280) and Twin Disc Transmissions |
| Factory Warranty Period | E.P. Barrus Shire 3-Year Limited Inland Leisure / 2-Year Commercial Warranty |
| Application Research | Heavy commercial passenger trip boats, oversized widebeam barges (up to 14 ft beam), hotel boats, and commercial cargo barges operating on tidal rivers. |
