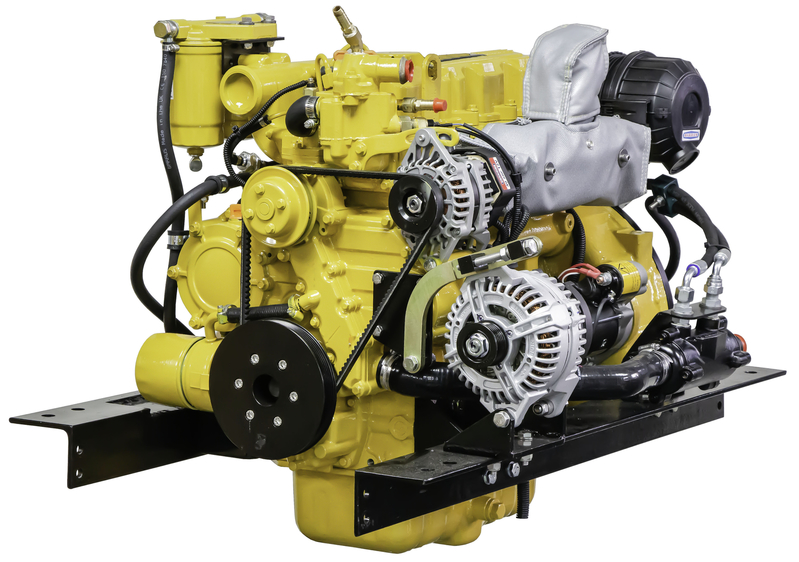

Shire 49 High-Torque Keel-Cooled Canal Diesel Engine
$4,540.00
In Stock
Shire 49 High-Torque Specs
| Manufacturer / Brand | E.P. Barrus (Shire Marine) |
| Model Designation | Shire 49 High-Torque |
| Engine Type | 4-Stroke High-Torque Heavy-Duty Canal Marine Diesel |
| Cylinder Configuration | Inline-4 |
| Total Displacement | 3.3 Liters (203 cu in) |
| Bore x Stroke | 98.0 x 110.0 mm (3.86 x 4.33 in) |
| Aspiration & Charge Air | Naturally Aspirated with Heavy-Duty Low-Restriction Air Cleaner |
| Cooling System Architecture | Keel-Cooled Closed Skin-Tank Circuit with Heavy-Duty Header Tank and High-Volume Pump |
| Continuous Power Rating (P1) | 44 BHP (33 kW) @ 2,400 RPM |
| Maximum / Intermittent Power (P3/P4) | 49 BHP (37 kW) @ 2,500 RPM |
| Fuel Injection Platform | Mechanical Direct Fuel Injection with In-Line Multi-Plunger Injection Pump and Governor |
| Cylinder Head Metallurgy | Monobloc Cast Iron Cylinder Block with Cast Iron Overhead Valve (OHV) Cylinder Head |
| Cylinder Liners | Cast Iron Engine Block with Integrated Parent Bores |
| Flywheel Housing & Flywheel | SAE 4 / Dedicated Marine Bellhousing with Heavy-Duty Flywheel and Torsional Damper |
| Electrical System & Ground | 12V Negative Ground Marine Electrical System |
| Starter & Alternator Output | 12V 2.5 kW Electric Starter / Dual Alternators (12V 50A Starter + 12V 175A Domestic) |
| Lube Oil Sump Capacity | 10.2 Liters (2.69 US gal) |
| Engine Coolant Capacity | 10.5 Liters (2.77 US gal) |
| Dry Weight (excl. gearbox) | 265 kg (584 lbs) |
| Overall Dimensions (L x W x H) | 865 x 550 x 695 mm (34.1 x 21.7 x 27.4 in) |
| Emissions Certification | RCD 2 (Directive 2013/53/EU) / EPA Tier 4 / EU Stage V Non-Road |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Automotive Diesel (EN 590), B7 Biodiesel |
| Transmission / Outdrive Compatibility | Bare Engine Bobtail Keel-Cooled - Compatible with PRM (PRM 150 / PRM 260 / PRM 280) and Twin Disc Transmissions |
| Factory Warranty Period | E.P. Barrus Shire 3-Year Limited Inland Leisure / 2-Year Commercial Warranty |
| Application Research | Large widebeam canal barges (up to 12-14 ft beam), Dutch barges, commercial cargo pushers, heavy river tugs, and full-length steel liveaboard narrowboats requiring exceptional low-RPM stopping power and prop torque. |
