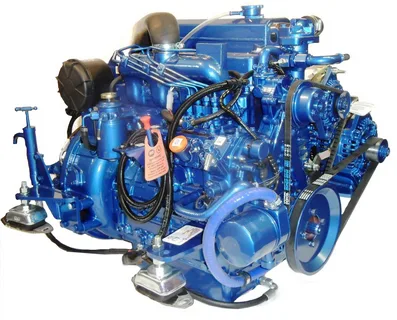

Name: Canaline 60 Keel-Cooled Widebeam Marine Diesel Engine
Price: 5850.00 USD
Availability: InStock

Canaline 60 Specs

Manufacturer / Brand	Canaline Marine
Model Designation	Canaline 60
Engine Type	4-Stroke Inland Waterway Widebeam Marine Diesel
Cylinder Configuration	Inline-4 Cylinder
Total Displacement	2.43 Liters (148.5 cu in)
Bore x Stroke	87 x 102.4 mm (3.43 x 4.03 in)
Aspiration & Charge Air	Naturally Aspirated with High-Flow Intake Air Cleaner
Cooling System Architecture	Skin Tank / Keel-Cooled Closed Loop with Calorifier Connections
Continuous Power Rating (P1)	60 BHP (44.7 kW) @ 2,800 RPM
Maximum / Intermittent Power (P3/P4)	60 BHP (44.7 kW) @ 2,800 RPM (Continuous Inland Waterway Rating)
Fuel Injection Platform	Mechanical Indirect Injection with In-Line Cassette Pump
Cylinder Head Metallurgy	Monoblock Heavy-Duty Cast Iron Cylinder Head
Cylinder Liners	Parent Bore High-Strength Cast Iron Cylinder Block
Flywheel Housing & Flywheel	SAE 5 Housing with Marine Damper Drive Plate
Electrical System & Ground	12V Isolated Ground Marine Electrical System
Starter & Alternator Output	12V 2.2 kW Electric Starter / Twin 50A Engine & 175A Domestic Alternators
Lube Oil Sump Capacity	7.5 Liters (1.98 US gal) with Brass Sump Evacuation Pump
Engine Coolant Capacity	9.5 Liters (2.51 US gal)
Dry Weight (excl. gearbox)	255 kg (562 lbs)
Overall Dimensions (L x W x H)	865 x 560 x 670 mm (34.1 x 22.0 x 26.4 in)
Emissions Certification	EU Stage V, RCD II Compliant
Fuel Compatibility	Ultra-Low Sulfur Diesel (ULSD No. 2), Gas Oil A2, HVO 100 Renewable Fuel
Transmission / Outdrive Compatibility	PRM 150 D2 or PRM 280 D2 Mechanical / Hydraulic Marine Gearbox
Factory Warranty Period	3-Year / 2,500-Hour Limited Inland Marine Warranty
Application Research	Widebeam canal boats (10ft to 12ft beam), heavy liveaboard narrowboats (65ft to 70ft), Dutch barges, and inland commercial vessels
