Best Seller

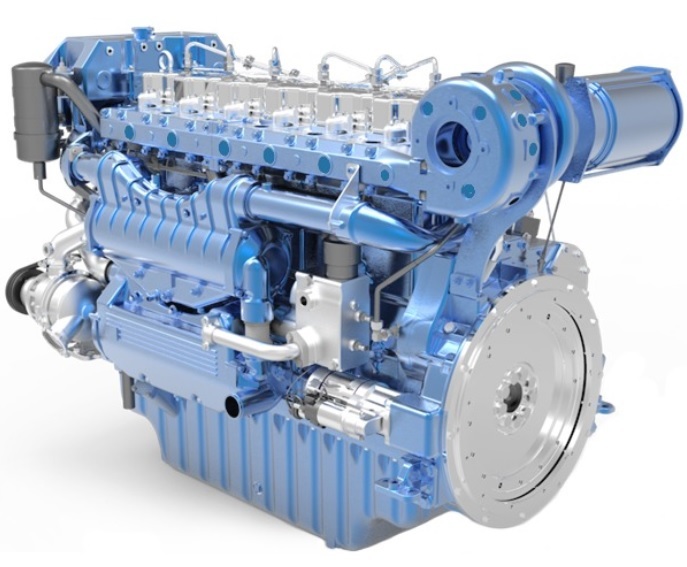

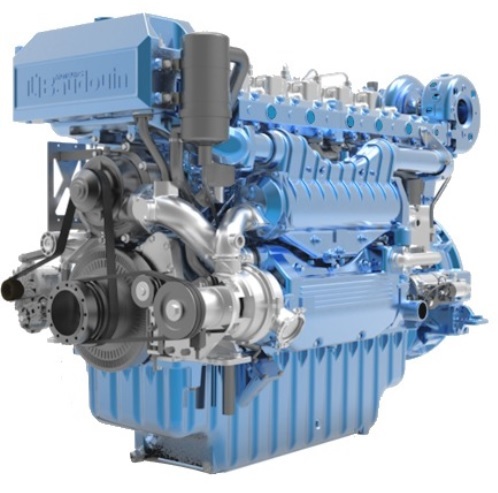

Baudouin 6M33.2 Heavy Displacement Marine Diesel Engine
$34,050.00
In Stock
Baudouin 6M33.2 Specs
| Manufacturer / Brand | Moteurs Baudouin |
| Model Designation | 6M33.2 |
| Engine Type | 4-Stroke Severe-Duty Commercial Marine Diesel |
| Cylinder Configuration | Inline-6 Cylinder |
| Total Displacement | 19.6 Liters (1,196 cu in) |
| Bore x Stroke | 150 x 185 mm (5.91 x 7.28 in) |
| Aspiration & Charge Air | Turbocharged with Jacket-Water Charge-Air Aftercooler |
| Cooling System Architecture | Tubular Freshwater Heat Exchanger (Keel Cooling or Skin Tank Available) |
| Continuous Power Rating (P1) | 650 BHP (478 kW) @ 1,800 RPM |
| Maximum / Intermittent Power (P3/P4) | 750 BHP (551 kW) @ 1,800 RPM |
| Fuel Injection Platform | High-Pressure Common Rail (HPCR) with Electronic Engine Management |
| Cylinder Head Metallurgy | Individual 4-Valve Cast Iron Cylinder Heads |
| Cylinder Liners | Replaceable Wet Sleeve Cast Iron Liners |
| Flywheel Housing & Flywheel | SAE 1 Flywheel Housing with SAE 14 Flywheel |
| Electrical System & Ground | 24V Isolated Ground Marine Electrical System |
| Starter & Alternator Output | 24V 8.0 kW Electric Starter / 24V 90A Marine Alternator |
| Lube Oil Sump Capacity | 65.0 Liters (17.2 US gal) Deep Commercial Oil Pan |
| Engine Coolant Capacity | 80.0 Liters (21.1 US gal) |
| Dry Weight (excl. gearbox) | 2,390 kg (5,269 lbs) |
| Overall Dimensions (L x W x H) | 2,150 x 1,150 x 1,460 mm (84.6 x 45.3 x 57.5 in) |
| Emissions Certification | IMO Tier II, EPA Marine Tier 3 Compliant |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Marine Gas Oil (MGO DMA/DMB) |
| Transmission / Outdrive Compatibility | Engine Package - Compatible with Masson Marine, ZF, and Twin Disc Gearboxes |
| Factory Warranty Period | 2-Year Commercial Limited Marine Warranty |
| Application Research | Harbor tugboats, ocean-going pushboats, heavy displacement barges, dredgers, and severe continuous commercial marine operations |
