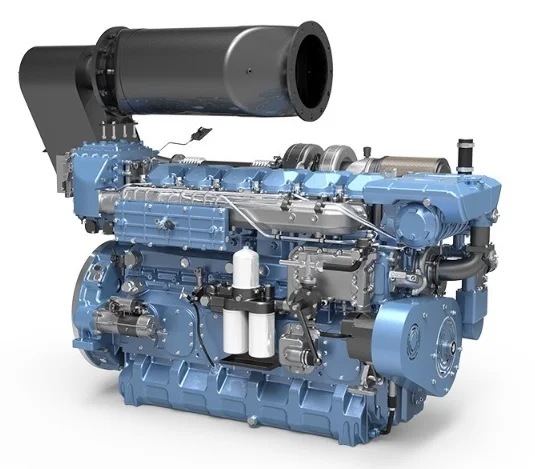

Baudouin 6M26.3 Common-Rail Commercial Marine Diesel Engine

Description

Offshore crew boat operators face severe fuel consumption penalties and strict harbor smoke mandates during fast transit runs. The Baudouin 6M26.3 Common-Rail Marine Diesel Engine solves exhaust compliance with high-pressure common rail injection generating 600BHP continuous output at 1,800 RPM. This 15.9L block demands clean fuel filtration down to two microns, penalizing operators who neglect fuel water separators.

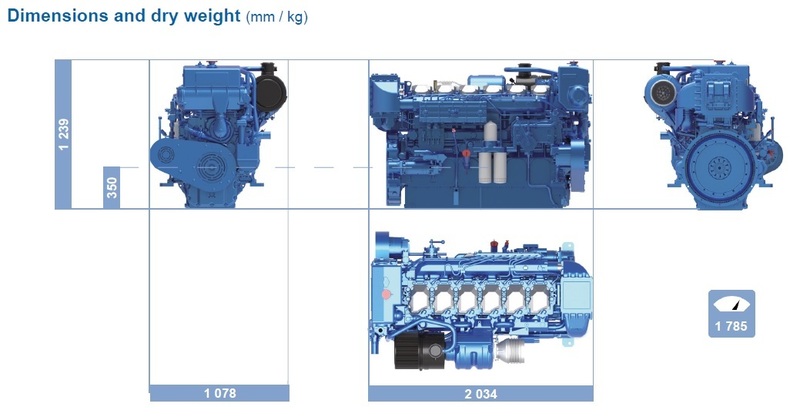

High-strength cast iron forms the monolithic block structure and separate four-valve cylinder heads. Replaceable wet sleeve cast iron liners seat inside precision-bored counterbores to prevent bore distortion under combustion stress. Dry weight measures 3,935 lbs across a rigid engine stance of 78in length by 42in width and 52in height. An isolated ground 24V system matches an 8.0 kW electric starter and 70A marine alternator for aluminum or steel hull duty.

Key Features of Baudouin 6M26.3

Vessel operators buy Baudouin 6M26.3 diesels to repower passenger catamarans and offshore service vessels. Commercial pricing reflects the factory common-rail management hardware that cuts vessel fuel bills on fast transit runs.

• High-pressure common rail injection atomizes fuel at 1,600 bar to eliminate visible cold-start exhaust smoke.
• Cupronickel tube heat exchangers resist seawater corrosion inside demanding salt-spray offshore environments.
• Individual cylinder heads allow isolated cylinder servicing without stripping adjacent deck components.
• Intermittent rating modes push 815BHP at 2,100 RPM for high-speed pilot boat pursuit duties.
• An electronic control unit monitors rail pressure and exhaust temperatures to prevent piston crown melt.
• Standard SAE 1 bellhousing configurations connect to ZF or Twin Disc down-angle transmissions.
• Wet cylinder liners dissipate combustion heat into the 17.2 gallon cooling jacket without localized hotspots.

Injection Pressures Thermal Load Curves

Under a 600BHP continuous load bench test at 1,800 RPM, common rail pressure holds steady at 1,600 bar across all six injector lines. Exhaust manifold gas temperatures peak at 940°F before entering the water-cooled turbocharger turbine housing. The cupronickel heat exchanger maintains jacket water coolant at 182°F during sustained four-hour dynamometer runs. Crankcase blowby stays below 0.8 cubic feet per minute at full rack load, proving tight ring pack sealing against the centrifugal wet liners without bore glazing.

Throttle Response Maintenance Schedules

Electronic helm controls deliver immediate throttle response with zero mechanical cable drag or governor bind, allowing precise single-lever positioning around offshore wind turbine bases. Do not select this high-pressure common-rail propulsion package for primitive river applications where crews run unfiltered barrel diesel containing high water contamination.

• Replace the primary ten-micron fuel water separator and secondary two-micron fuel filter cartridges every 250 operating hours.
• Drain and replenish the 13.7 gallon cast oil sump using approved CJ-4 SAE 15W-40 oil every 500 service hours.
• Inspect sacrificial zinc anodes in the cupronickel heat exchanger housing every 250 hours and replace when half spent.

Commercial Warranty Crate Breakdown

Moteurs Baudouin backs this common rail unit with a 2-Year commercial limited marine warranty. The factory pallet includes the crated engine core, 24V 7.0kW starter, 70A alternator, digital engine display harness, SAE 14 flywheel, vibration isolator mounts, spare spin-on filter sets, and complete electronic documentation manuals.
