Southeastern Power Products SEP-7.0 Marine Diesel Generator – Radiator Cooled

Description

Deliver seven continuous electrical kilowatts without seawater lines through the Southeastern Power Products SEP-7.0 Marine Generator, engineered with an integrated radiator cooling setup for dry-engine vessel compartments and mobile maritime trailers. Generating 7.0 kW continuous output at 120V and 240V 60Hz, this plant powers galley refrigeration, battery banks, and lighting circuits without thru-hull plumbing fittings.

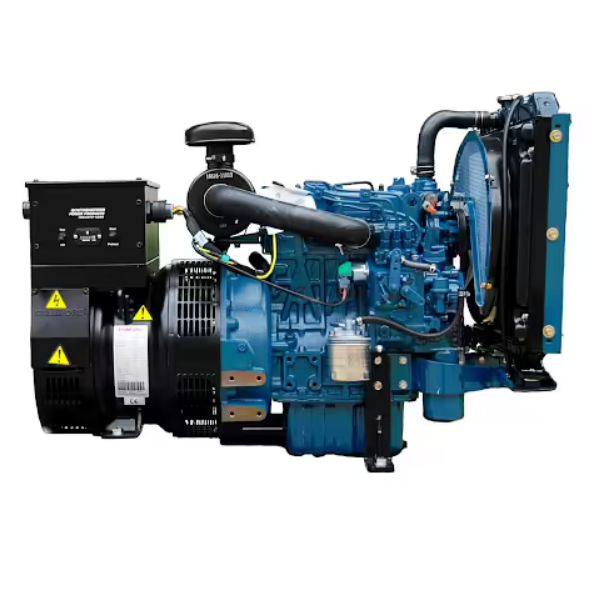

A water-cooled three-cylinder Kubota diesel engine pairs with an engine-mounted radiator core and heavy cooling fan on a steel drip pan base. The synchronous four-pole alternator features 100 percent copper windings coated with Class H epoxy insulation, resisting high humidity and salt atmospheres. Weighing 415 lbs dry, the radiator-cooled chassis perimeter measures 33.5 inches long by 20.0 inches wide by 25.0 inches high.

Key Features of Southeastern Power Products SEP-7.0

Vessel owners who buy Southeastern Power Products SEP-7.0 marine generator units acquire radiator-cooled commercial power equipment built to eliminate thru-hull seawater fittings completely. This closed cooling circuit operates independently of external water sources, making it suited for upper-deck machinery spaces and containerized marine kitchens.

• 7.0 kW continuous electrical output powers galley cooktops, water heaters, and vessel battery chargers on long runs.
• 8.5 kVA surge capacity starts inductive marine air conditioning pumps and deep freezer compressors without stalling.
• Integrated radiator core and pusher fan eliminate thru-hull seacocks, sea strainers, and raw-water pump impellers.
• Kubota three-cylinder diesel block provides smooth mechanical balance and low rotational vibration.
• SEP-7.0 radiator cooled platform provides reliable electrical power during vessel dry-dock refit periods.
• Brushless synchronous alternator eliminates carbon brushes and slip rings to minimize maintenance requirements.
• Elastomeric vibration dampening mounts decouple engine vibrations from commercial aluminum and steel vessel hulls.
• Automated emergency safety sensors shut down fuel delivery upon high engine coolant temperature or low oil pressure.

Transient Load Step Voltage Tolerances

Operating at an acoustic signature of 62 dB(A) at 23 feet, this radiator-cooled generator provides steady electrical output in well-ventilated top-deck compartments. The automatic voltage regulator limits output voltage variation within 2 percent of 120V and 240V standards at 60 Hz during heavy motor starts. Diesel fuel burn measures 0.48 GPH at 50 percent load, providing high operational fuel economy.

Radiator Air Ducting Compartment Fitment

Install the unit in machinery compartments possessing dedicated intake and exhaust air ducting sized to handle radiator heat discharge, maintaining 18 inches of clearance around the radiator face. Route dry exhaust piping through a heat-blanketed industrial silencer. The isolated DC ground design prevents stray currents from causing structural hull electrolysis.

Physical Handling Radiator Service Protocols

Single-side maintenance access permits checking engine oil and fuel filters without removing radiator shrouds. This radiator-cooled unit is not engineered for sealed bilge compartments lacking high-volume air ducting, nor for wet exhaust systems requiring cooling water injection.

• Check radiator coolant level and inspect fan belt tension before each shift.
• Drain engine crankcase oil and replace spin-on filter cartridges every 100 runtime hours.
• Blow compressed air through radiator exterior cooling fins every 250 runtime hours.

Manufacturer Warranty Factory Package Manifest

Southeastern Power Products backs this generator with a 2-Year commercial warranty protecting the Kubota engine, radiator core, and alternator assembly. The shipment contains the Southeastern Power Products SEP-7.0 generator, remote control panel, dry exhaust connection flange, rubber isolator set, and technical instruction guide.
