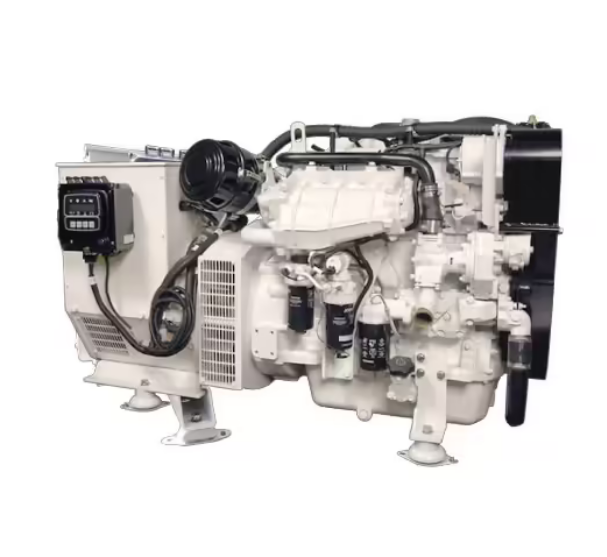

Phasor K3-9.5kW Marine Diesel Generator – 1800 RPM, Standard Series

Description

Power demanding yacht galley cooklines with the Phasor K3-9.5kW Marine Diesel Generator, engineered for continuous prime electrical service on commercial charter vessels and motor yachts. Delivering 9.5 kW continuous output and 11.5 kVA surge capacity at 120V and 240V 60Hz, this plant sustains induction ranges, convection microwave ovens, watermakers, and multi-cabin air conditioning chillers.

A durable three-cylinder Kubota diesel engine anchors the drive line, operating at an efficient 1800 RPM to suppress noise and vibration. The synchronous alternator contains 100 percent copper windings wrapped in Class H high-temperature insulation, cooled via internal engine-driven fans. With a dry weight of 445 lbs, the generator chassis perimeter measures 34.0 inches long by 20.5 inches wide by 24.5 inches high.

Key Features of Phasor K3-9.5kW

Fleet operators who buy Phasor K3-9.5kW marine diesel generator sets acquire heavy-duty commercial power equipment capable of managing complex shipboard distribution loads. Its four-pole alternator maintains strict 60 Hz electrical output, protecting computerized navigation displays and delicate galley appliances from harmonic distortion.

• 9.5 kW continuous prime electrical capacity powers shipboard refrigeration, watermakers, and galley cooktops.
• 11.5 kVA peak surge capacity absorbs inductive starting spikes from large air conditioning compressor motors.
• Low-speed 1800 RPM four-pole design cuts rotational noise and minimizes mechanical wear on valve train parts.
• Kubota three-cylinder diesel block provides smooth mechanical balance and low rotational vibration.
• Synchronous alternator design provides stable voltage regulation across sudden electrical step-load additions.
• K3-9.5kW marine electrical architecture utilizes isolated DC ground wiring to prevent hull zinc erosion.
• Cast-iron cylinder sleeves ensure long operational life and compression retention across extended voyages.
• Automated engine shutdown protections guard against cooling failure, high exhaust temperature, or low oil pressure.

Waveform Integrity Acoustic Sound Data

Emitting 56 dB(A) at 23 feet inside an optional sound capsule, this generator allows quiet vessel operation in calm harbors. The electronic automatic voltage regulator maintains line voltage within 2 percent of nominal ratings at 60 Hz during heavy inductive motor starts. Operating on diesel, fuel consumption measures 0.65 GPH at half load, sustaining extended cruising ranges without frequent refueling.

Vessel Stringer Fitment Exhaust Installation

Secure the machine to vessel hull stringers, ensuring at least 12 inches of clearance around the sound capsule for panel removal. Plumb exhaust hoses through a marine water-lift silencer and water-separator unit to discharge gas and cooling water separately above the waterline. The isolated DC ground return protects underwater running gear from stray current galvanic damage.

Physical Handling Engine Maintenance Schedule

Single-side maintenance engineering places all daily checkpoints within direct reach of technicians. This marine generator is not engineered for dry land operation without water cooling, nor for unventilated gasoline engine compartments lacking spark-ignition certification.

• Check coolant level in recovery bottles and inspect oil before each shift.
• Drain engine crankcase oil and replace spin-on filter cartridges every 100 runtime hours.
• Check raw-water pump impellers and inspect heat exchanger zincs every 250 runtime hours.

Factory Warranty Package Freight Inventory

Phasor backs this unit with a 2-Year commercial marine warranty protecting engine internals, alternator components, and cooling heat exchangers. The wooden pallet delivers the Phasor K3-9.5kW generator core, remote digital control panel, wiring harness, oil drain hose, and technical instruction manual.
