Phasor JD4-80.0kW Marine Diesel Generator – 1800 RPM

Description

Struggling to energize heavy vessel winch pumps? The Phasor JD4-80.0kW Marine Diesel Generator supplies 80kW continuous electrical power for commercial workboats, offshore research vessels, and processing ships. Powered by a turbocharged John Deere 4045 diesel engine at 1800 RPM, it runs primary distribution switchgear. It prevents catastrophic inventory loss during prolonged municipal utility grid failures without requiring manual mid-storm refueling.

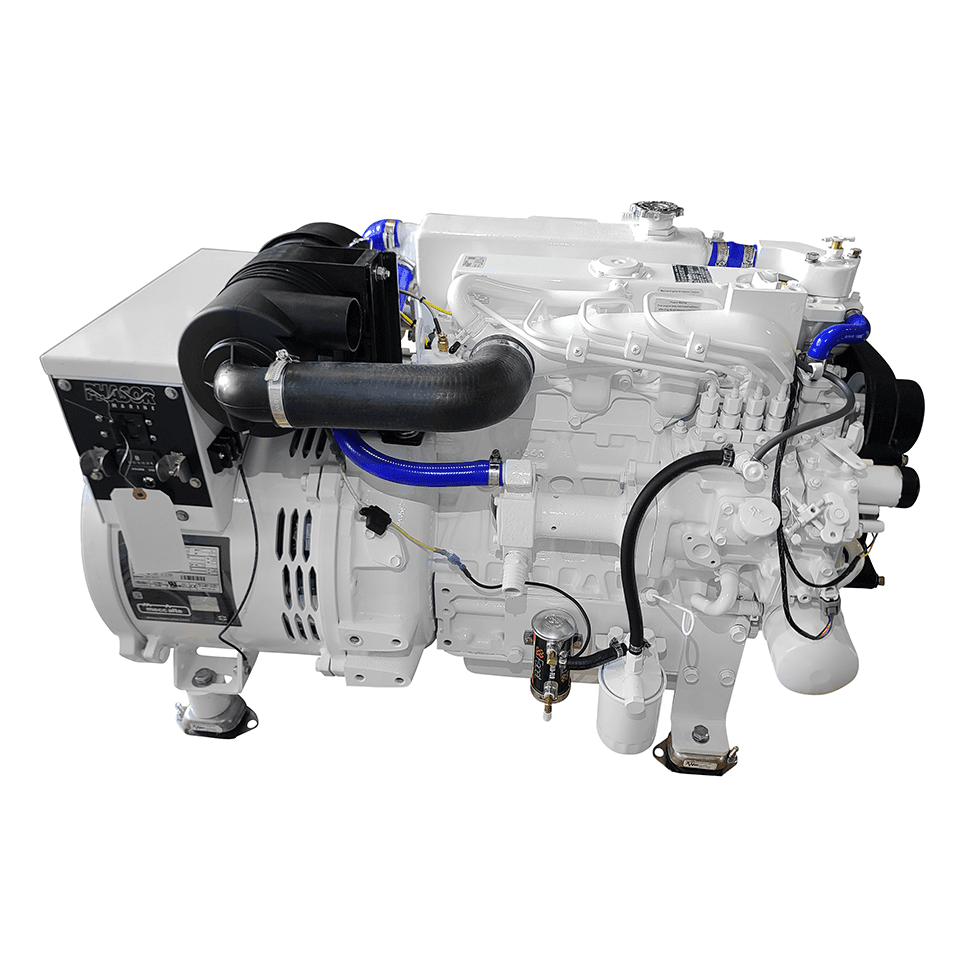

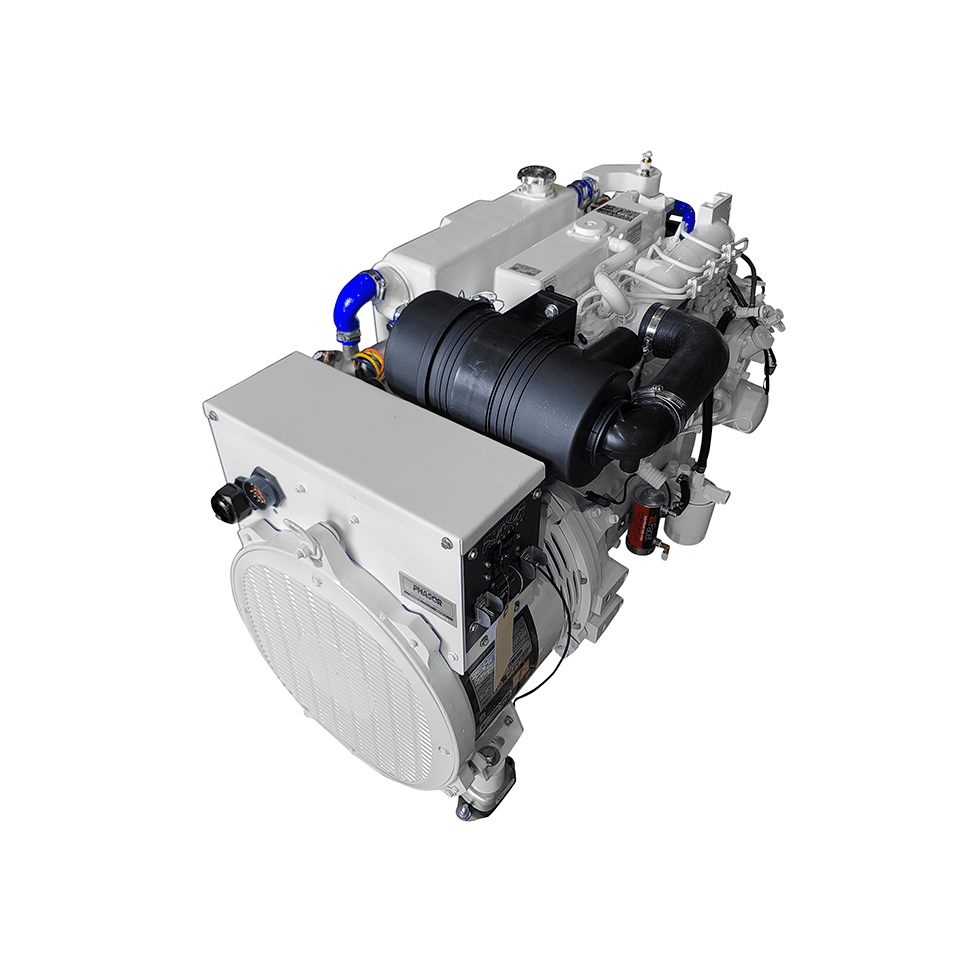

A structural steel channel skid secures the turbocharged diesel powertrain and heavy-duty four-pole alternator. The 4.5L John Deere engine incorporates turbocharging, replaceable wet cylinder liners, and an oil cooler for severe continuous duty. Total unladen dry weight measures 2280 lbs across perimeter dimensions of 66 inches long by 30 inches wide by 42 inches high. This Phasor turbocharged marine generator utilizes an engine-driven bronze raw-water pump that circulates seawater through a heavy cupronickel cooling matrix.

Key Features of Phasor JD4-80.0kW

Fleet marine superintendents buy Phasor JD4-80.0kW commercial power equipment to run continuous high-amperage hydraulic power packs and refrigerated fish hold systems. Turbocharged engine aspiration ensures immediate governor response to heavy inductive motor steps.

• 80kW continuous electrical rating feeds commercial reach-in chillers and prep tables without voltage drop.
• Turbocharged John Deere 4.5L diesel engine delivers strong torque recovery under heavy step loads.
• 1800 RPM operating speed minimizes mechanical vibration and extends engine overhaul intervals.
• Marine-grade brushless alternator features Class H insulation to resist high-humidity saltwater environments.
• Remote digital gauge panel monitors oil pressure, coolant temperature, operating hours, and AC metrics.
• Cast-iron expansion tank and exhaust manifold resist high-temperature corrosion and thermal stress.
• Safety shutdown relays isolate fuel on this Phasor JD4-80.0kW generator system during emergency conditions.

Turbocharged Alternator Inductive Step Tolerances

Operating through a four-pole brushless marine alternator, this Phasor JD4-80.0kW generator system provides clean electrical power with total harmonic distortion capped below 3 percent. Operational sound measures 73 dB(A) at 23 feet inside machinery compartments. The turbocharged diesel engine provides rapid boost recovery, preventing frequency drops when large electric hydraulic pump motors or RSW refrigeration chillers start up.

Shipboard Base Mounting Exhaust Integration

Fasten the structural base to structural vessel deck beams using approved vibration isolators, maintaining 24 inches of access space around the alternator brushes and fuel filters. Connect wet exhaust piping using marine-certified silicone hose and stainless steel T-bolt clamps. Route main three-phase or single-phase feeders into the main switchboard using armored shipboard cable.

Commercial Engine Safety Maintenance Boundaries

An integrated 12V or 24V electric starter delivers prompt starting from the bridge remote panel, while safety switches monitor engine temperature continuously. This heavy marine generator is NOT engineered for unventilated dry-box areas without seawater cooling, unshielded outdoor deck mounting, or raw gasoline fuel systems.

• Clean raw seawater strainers and inspect pump impellers every 50 runtime hours.
• Replace crankcase motor oil and the spin-on oil filter every 100 runtime hours.
• Inspect turbocharger intake piping and exhaust heat blankets every 250 runtime hours.

Factory Marine Warranty Crate Inventory

This Phasor turbocharged marine generator includes a 5-Year limited warranty covering the John Deere diesel engine, alternator core, and marine cooling assemblies. The crated freight package contains the generator set, remote instrument panel, wiring harness, flexible fuel connection lines, and verified factory inspection reports.
