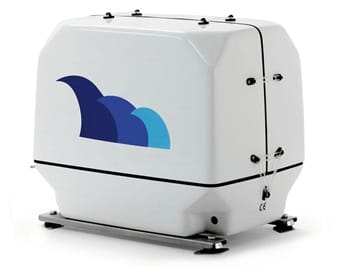

Paguro 6500 Marine Generator

Description

Vessel battery bank exhaustion risks navigation safety, making the Paguro 6500 Marine Generator vital for blue-water cruising vessels and commercial charter yachts. Powered by a twin-cylinder Lombardini diesel engine, it delivers 6000W continuous and 6.5kVA surge capacity. It runs chilled-water air conditioning compressors and galley equipment without voltage drops that cause marine navigation display resets.

A heavy-density fiberglass sound shield encapsulates the mechanical powertrain, reducing ambient noise to conversational levels. The Lombardini twin-cylinder diesel engine incorporates indirect injection, overhead camshafts, and liquid freshwater cooling for continuous commercial duty. Dry unit weight measures 352 lbs inside capsule dimensions of 28.3 inches long by 18.9 inches wide by 24.8 inches high. This Paguro commercial marine generator integrates water-jacketed stator windings that transfer heat straight into the raw-water discharge loop.

Key Features of Paguro 6500

Vessel electrical technicians buy Paguro 6500 commercial power equipment to supply reliable 120V and 240V electricity across offshore passages. Twin-cylinder diesel operation cuts engine vibration while delivering smooth rotational torque into the alternator core.

• 6000W continuous electrical output powers multiple marine air handlers and commercial galley freezers without loss.
• 6.5kVA apparent power capacity handles inductive pump motor starts without tripping shore power breakers.
• Lombardini twin-cylinder diesel engine provides steady torque output under fluctuating catering electrical loads.
• Water-jacketed alternator housing eliminates mechanical fans and engine room thermal loading.
• Sound-insulated capsule keeps operational noise down to 53 dB(A) at 23 feet for nighttime comfort.
• Digital remote helm panel tracks output amperage, line voltage, and oil pressure warnings.
• Integrated circuit breaker protects this Paguro 6500 marine plant from downstream short circuits.

Twin Cylinder Alternator Harmonic Balance

Wound with heavy copper wire, this Paguro 6500 marine plant alternator maintains strict 60 Hz line frequency with harmonic distortion held under 3 percent total harmonic distortion. Operating sound remains at a subdued 53 dB(A) at 23 feet inside the vessel machinery space. The twin-cylinder configuration balances rotational pulses, preventing voltage flicker on delicate shipboard LED lighting systems and protecting touch-screen autopilot interfaces from electrical interference.

Engine Room Sound Enclosure Fitment

Install the sound capsule on structural engine stringers maintaining 5 inches of perimeter clearance around the outer fiberglass shell. Direct raw-water cooling lines through a bronze seacock and high-flow seawater filter. Run output feeder cables through a dedicated marine double-pole breaker before tying into the shipboard shore-power transfer switch using multi-strand copper conductors.

Vessel Engine Usability Preventive Protocols

The helm-mounted digital remote panel provides push-button electric start convenience, eliminating manual engine cranking. This enclosed marine generator is NOT engineered for unventilated dry lazarettes without raw seawater circulation, decktop rain exposure, or connection to ungrounded three-phase distribution panels.

• Check seawater pump impeller flexibility and clean strainer baskets every 50 runtime hours.
• Drain engine oil and install a replacement oil filter every 100 runtime hours.
• Inspect heat exchanger end caps and clean tube bundles every 250 runtime hours.

Marine Warranty Documentation Crate Inventory

This Paguro commercial marine generator comes backed by a 2-Year limited marine warranty covering the diesel block, alternator, and sound enclosure. The wooden shipping crate contains the sound-encapsulated generator, digital remote panel, electrical extension loom, fuel filter separator, anti-vibration dampeners, and factory test sheets.
