DuroMax XP9500iHT 9500W Peak Inverter Portable Generator – Tri-Fuel

Description

Cast-iron cylinder sleeves anchor the DuroMax XP9500iHT Inverter Generator, delivering industrial durability across three distinct fuel choices. This high-capacity tri-fuel generator produces 9500 starting watts and 7600 running watts on gasoline, supplying pure sine wave current to protect commercial walk-in coolers, computerized cooking ranges, and point-of-sale checkout networks during major utility outages.

A powder-coated steel frame structure encloses the 459cc four-stroke engine, paired with high-efficiency cooling baffles to reject excess heat during long runs. The electrical generator features 100 percent copper windings to eliminate resistive energy losses and increase stator life. Equipped with an 8.5-gallon fuel tank, this 235-lb generator envelope measures 31 inches long by 26 inches wide by 29 inches high.

Key Features of DuroMax XP9500iHT

Restaurant owners who buy DuroMax XP9500iHT inverter generator equipment secure uninterrupted emergency food service generation with fuel source flexibility. Tri-fuel technology permits running on natural gas lines, freeing kitchen staff from the chore of storing liquid fuel on site during emergencies.

• 9500 starting watts absorb heavy inductive motor startup kicks from commercial reach-in freezers without voltage sag.
• 7600 running watts provide massive continuous power to run commercial kitchen lighting, warmers, and computers.

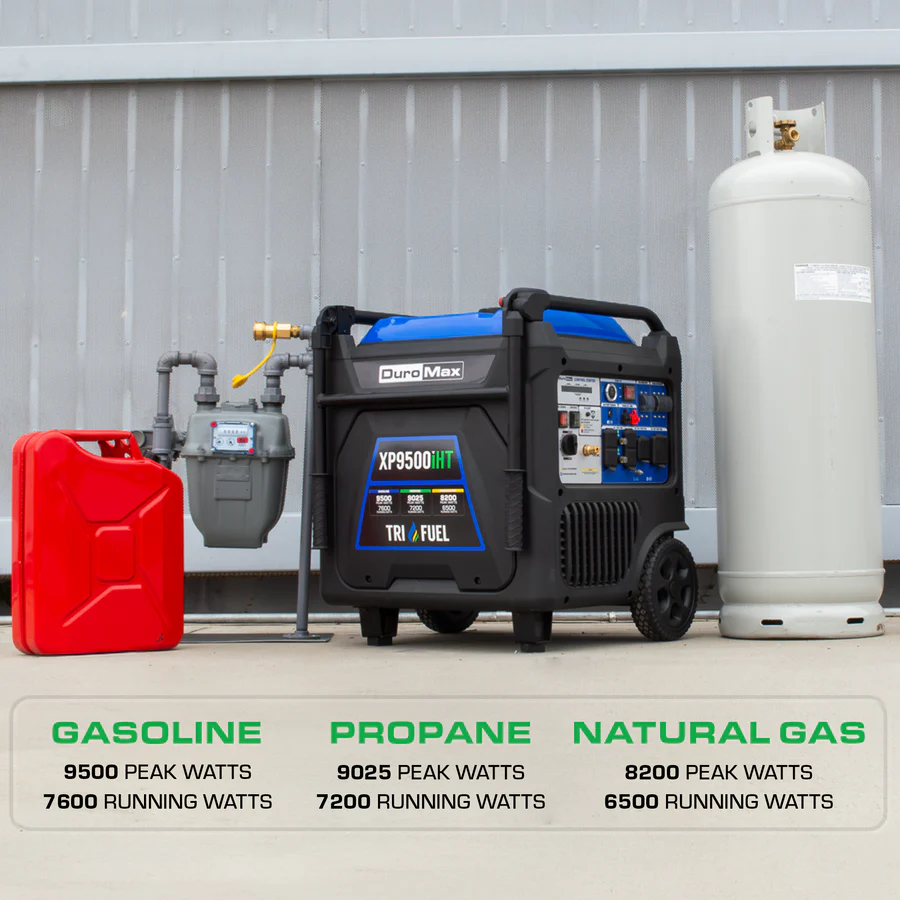

• Tri-fuel system shifts between natural gas, propane, and unleaded gasoline through a mechanical selector switch.
• Pure sine wave inverter output limits harmonic distortion below 3 percent to protect solid-state kitchen electronics.
• XP9500iHT digital dashboard monitors active electrical load, line voltage, operating frequency, and cumulative hours.
• 50A NEMA 14-50R heavy duty receptacle provides a single high-capacity connection to commercial distribution panels.

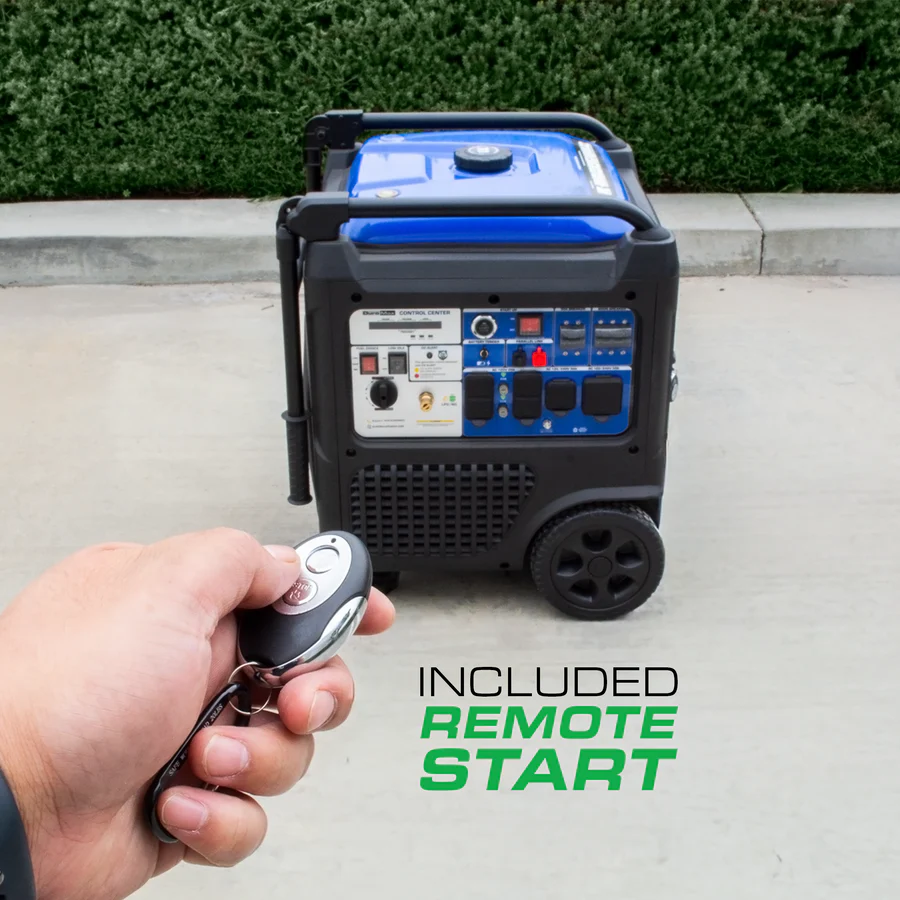

• Electric push-button starter and wireless remote fob enable rapid engine startup without pulling a recoil cord.
• Idle control system automatically lowers engine RPM when electrical loads drop, conserving fuel on long shifts.
• Sturdy flat-free wheels and folding transport handles permit relocation across rough commercial outdoor staging areas.

Harmonic Distortion Tolerance Sound Specifications

This tri-fuel inverter holds total harmonic distortion below 3 percent at 60 Hz, ensuring zero frequency jitter for computerized combi ovens and digital scales. Acoustic dampening panels lower operational sound output to 67 dB(A) at 23 feet under half load. The engine consumes 0.68 GPH of gasoline at 50 percent load, delivering 12.5 continuous hours of electrical runtime per tank.

Building Separation Transfer Panel Connections

Locate this power plant on stable ground at least 5 feet away from all commercial doors, windows, and exterior walls to disperse exhaust gases. The floating neutral configuration integrates directly into mobile kitchen transfer switches and building subpanels, eliminating conflicting ground loops that cause breaker trips in food truck distribution systems.

Field Transport Engine Maintenance Protocol

Rolling this 235-lb commercial inverter across gravel staging lots requires 36 lbs of pull force on the heavy-duty handle. This unit is not engineered for direct use in unventilated indoor spaces, open rainstorms without canopy covers, or direct connection to three-phase 208V kitchen panels.

• Drain engine oil and install clean synthetic lubricant every 50 runtime hours.
• Inspect the tri-fuel regulator lines and fuel fittings every 100 runtime hours.
• Check spark plug electrode condition and clean screens every 250 runtime hours.

Commercial Warranty Factory Crate Items

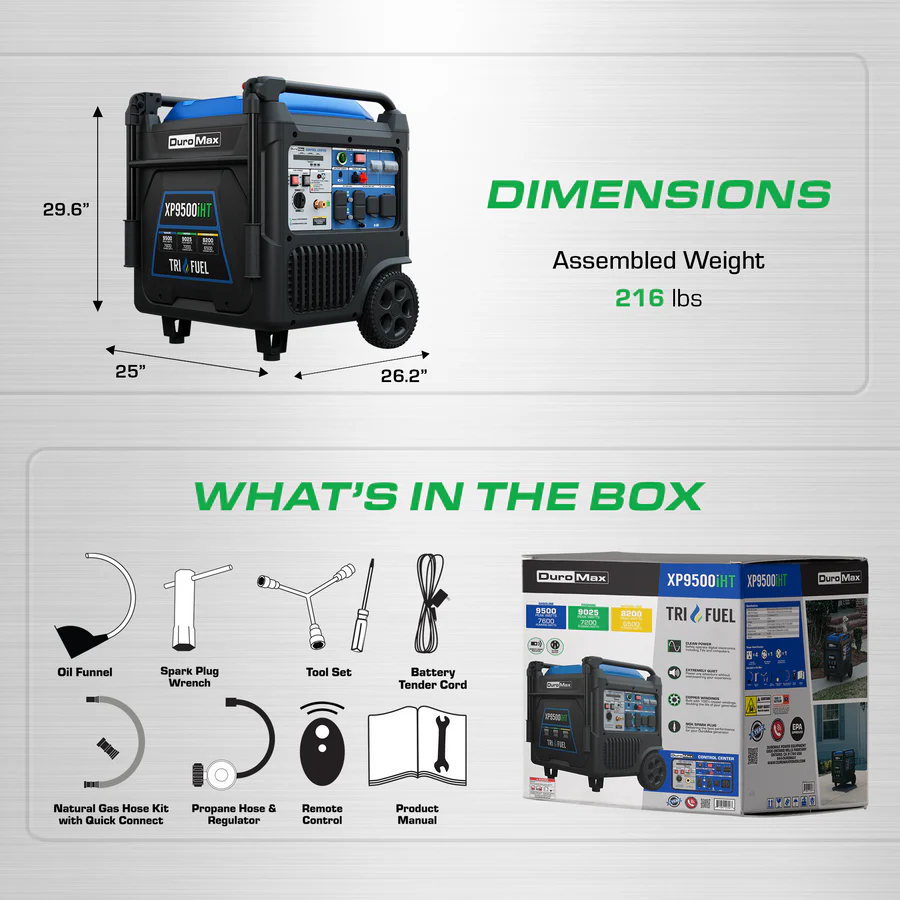

DuroMax backs this machine with a 3-Year commercial warranty covering engine components, alternators, and inverter circuits. Inside the shipping crate arrives the DuroMax XP9500iHT generator, natural gas supply line, propane hose with regulator, remote start fob, oil funnel, tool kit, and maintenance manual.
