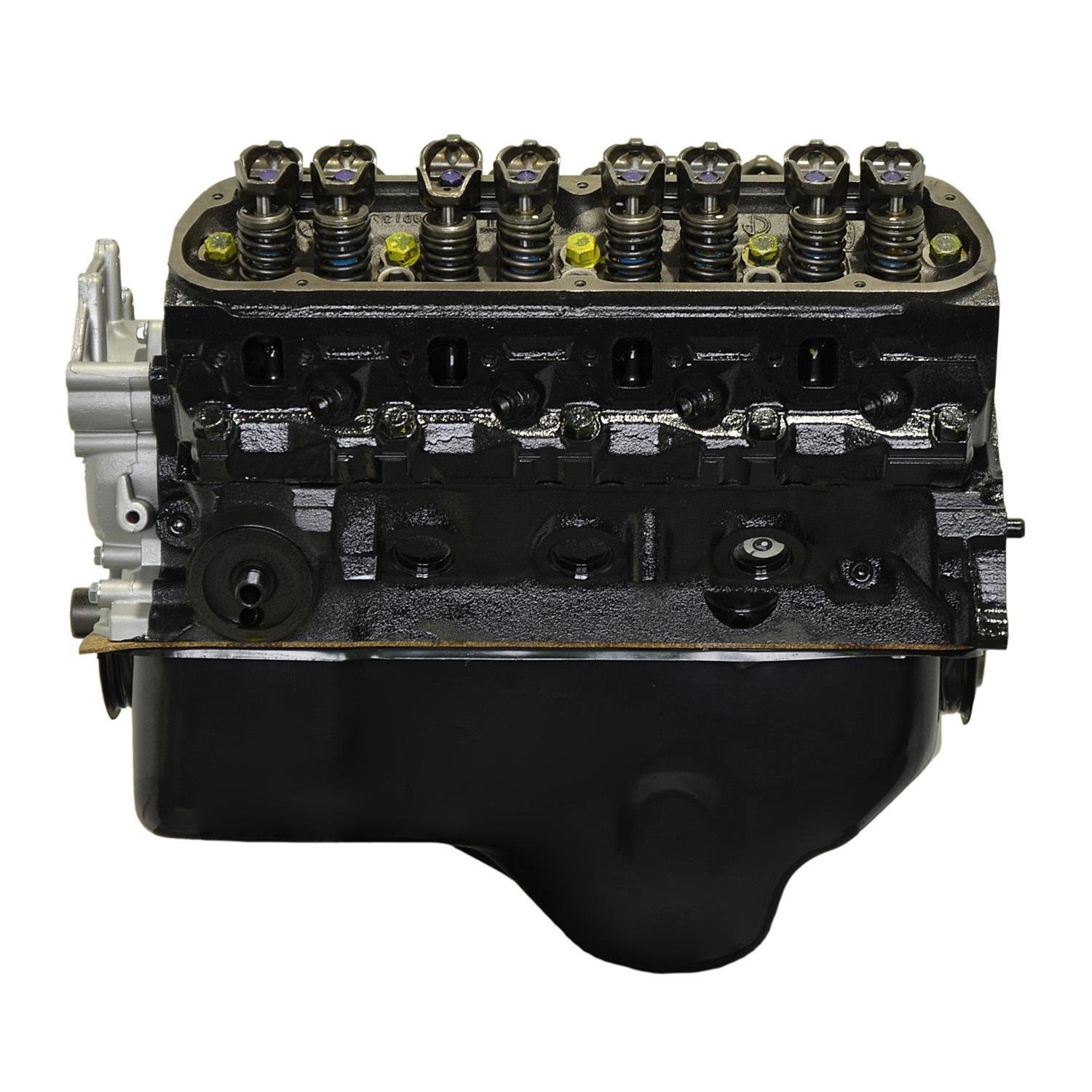

VEGE Remanufactured VFH1 5.0L 302ci Car Truck Long Block Engine

Description

Timing chain stretch and distributor drive gear bronze mismatch deadhead municipal maintenance service trucks. The VEGE VFH1 Car Truck Long Block Engine eliminates erratic ignition timing during commercial long block repower overhauls. This 5.0L 302ci 8-Cylinder powerplant outputs 215HP. Technicians must match distributor gear metallurgy against the cast iron hydraulic roller camshaft profile.

Rugged ASTM A48 Class 30 gray iron forms the classic small block crankcase. The VEGE engine core features an induction hardened cast iron crankshaft, forged connecting rods, and high nickel iron cylinder heads. Starter draw measures 170A at 12V. Dry weight reads 460 lbs, holding 5.0 quarts oil capacity with block dimensions measuring 27in length, 24in width, 26in height.

Key Features of VEGE VFH1

Fleet mechanics buy VEGE VFH1 commercial long block repower engines to restore dependable utility trucks. This legendary Windsor architecture ensures minimal scheduled downtime and rapid service component availability.

• Cylinder bore diameter sized to 4.000in maximizes ring tension for lower oil consumption.
• Piston stroke set at 3.000in permits responsive revving through intermediate gears.
• Hydraulic roller camshaft eliminates flat tappet friction and lobe break-in failures.
• Induction hardened valve seats withstand commercial grade low octane unleaded fuel.
• Double roller timing chain set halts timing chain stretch under continuous work cycles.
• The VFH1 commercial core bolts into rear-wheel drive car and truck engine compartments.
• One-piece rear main seal stops engine oil leaks onto transmission bellhousing pans.

Hot Dynamometer Proofing Data

Live dynamometer diagnostics test each VFH1 long block engine prior to shipping crate sealing. Bench readouts verify 215 BHP and 285 ft-lbs torque output at 3200 RPM continuous load. Oil gallery pressure maintains 50 PSI at 190°F oil sump temperature. Pyrometer probes show 1100°F EGT across manifold branches. Cylinder compression reads 175 PSI across all eight cylinders. Crankshaft center journal runout remains below 0.0003in TIR limit under dynamic full load testing.

Field Installation Boundary Standards

Mechanical throttle linkage requires 5 lbs spring return pull force for positive curb idle stop. Do not place this pushrod small block into transverse front-wheel drive passenger cars or extreme marine racing vessels.

• Evacuate initial break-in petroleum fluid and change spin-on filter after 500 roadway miles.
• Confirm pedestal mount roller rocker arm bolts reach 25 ft-lbs on base circles.
• Torque iron cylinder head fasteners in stages finishing at 70 ft-lbs final specification.

Standard Crate Manifest Scope

Supported by our commercial VEGE assembly standard 3-Year 100,000-mile nationwide warranty, this package arrives in protective crating. Shipment encompasses the remanufactured long block, steel oil pan, timing cover, stamped valve covers, oil pickup tube, and signed dyno certificate.
