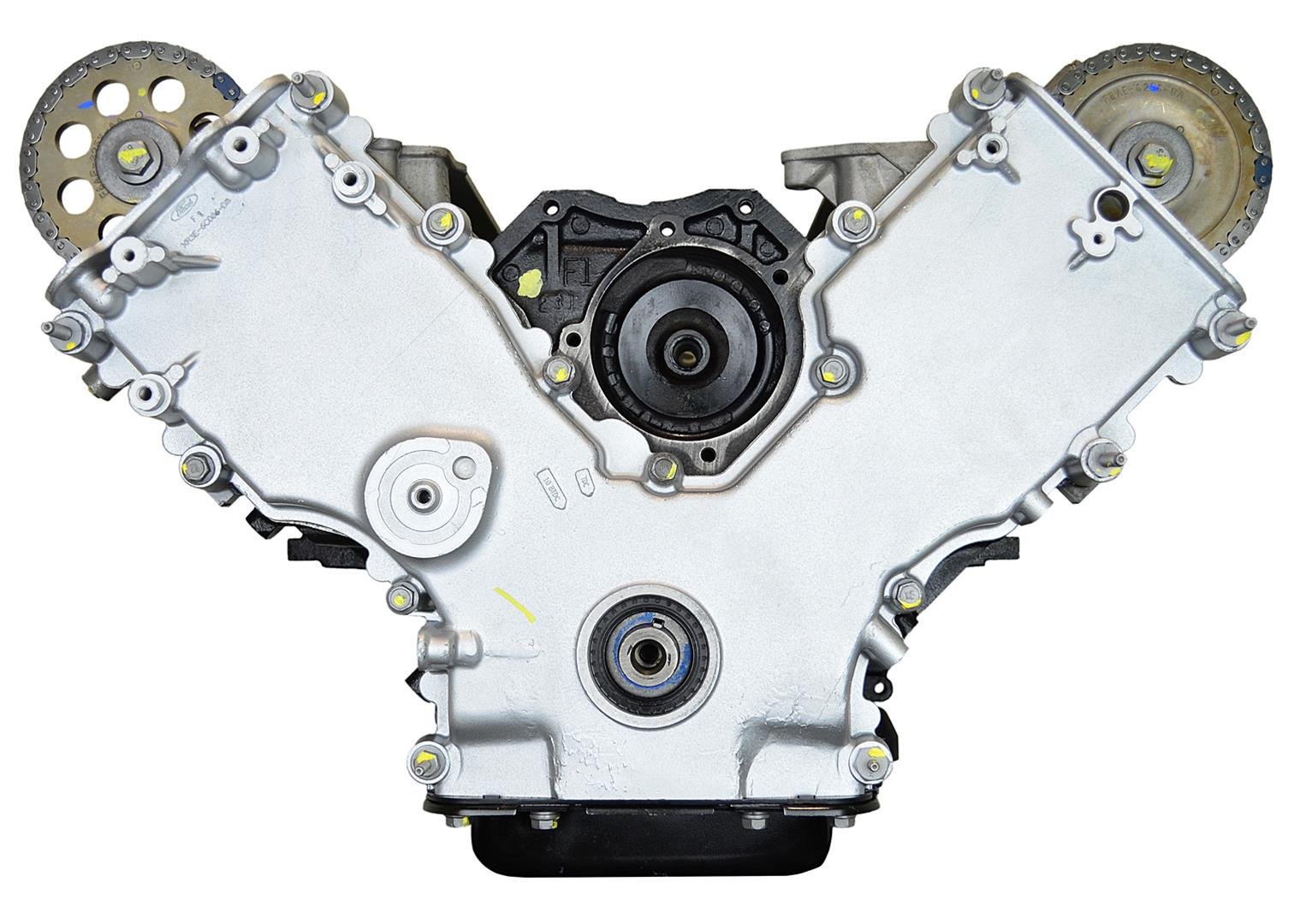

VEGE Remanufactured DFY3 4.6L 281ci Elite Series Long Block Engine

Description

Secondary timing chain guide pad detachment and oil filter adapter gasket erosion terminate upon sourcing the VEGE Remanufactured DFY3 4.6L Long Block Engine. Supplying 280HP from a 281ci 8-Cylinder commercial long block repower architecture, this package restores fleet operations. Mechanics must check the oil filter adapter coolant bypass port O-ring seating surface for pitting before final torquing.

High-integrity ASTM A48 Class 35 gray iron forms the deep-skirt crankcase, fitted with cross-bolted main bearing caps to arrest high-RPM bottom-end flex. This VEGE engine core utilizes nitrided camshaft lobes paired with stellite-faced valves. Electrical starter draw requires 12V 180A. Dry unrigged engine mass measures 500 lbs inside a 28in length, 27in width, 27in height base envelope with 6.0 quarts sump capacity.

Key Features of VEGE DFY3

Fleet dispatch managers buy VEGE DFY3 commercial long block units to prevent catastrophic engine valve contact during high-speed highway patrol duties. Precision machinists enforce rigid industrial engine rebuild tolerances throughout teardown and rebuilding cycles.

• Forged micro-alloy steel crankshaft features micro-polished journal pins holding 0.0003in TIR runout tolerance.
• Cast iron secondary timing chain tensioners replace plastic OEM tensioners to eliminate chain guide slap.
• Plateau-honed cylinder walls maintain uniform 0.0002in roundness limits across full piston stroke travel.
• CNC milled deck surfaces ensure 0.0002in deck flatness for multi layer steel gasket sealing.
• Internal high-output oil pump produces 55 PSI pressure to lubricate overhead camshaft friction surfaces.
• DFY3 commercial core casting uses deep stiffening ribs along the skirt perimeter to dampen vibrations.
• Tri-metal copper-lead bearings provide 0.0015in oil clearance to protect journal surfaces from scuffing.

Dynamic Bench Load Operating Thresholds

Dyno bench certification proves 280 continuous BHP paired with 305 ft-lbs torque output at 4800 RPM continuous duty load. Fluid sensors confirm 54 PSI oil gallery pressure at 195°F oil sump temperature, while exhaust gas temp peaks at 1250°F under load. Gauge checks show 180 PSI cylinder compression across all eight bores with variance under 4%. Crankshaft runout measures 0.0003in TIR on the DFY3 long block engine.

Vehicle Setup Guidance Maintenance Rules

Accelerator lever actuation demands 5 lbs pull force on the return spring pivot assembly. This power unit is NOT engineered for transverse front-wheel drive car platforms or passenger vans with low doghouse clearance. Shop technicians must carry out standardized maintenance routines on all newly mounted units.

• Replace initial break-in engine oil at 500 miles or 30 operating hours.
• Check hydraulic lash adjuster zero-lash travel limits prior to front timing cover sealing.
• Retorque cylinder head torque-to-yield fasteners in three steps following factory sequence.

Warranty Statement Shipping Crate Contents

Engine remanufacture follows VEGE assembly standard guidelines supported by a 3-Year 100,000-mile commercial warranty. The reinforced shipping box includes the long block assembly, stamped steel oil pan, front timing cover, stamped valve covers, oil pickup tube, and completed dyno test documentation.
