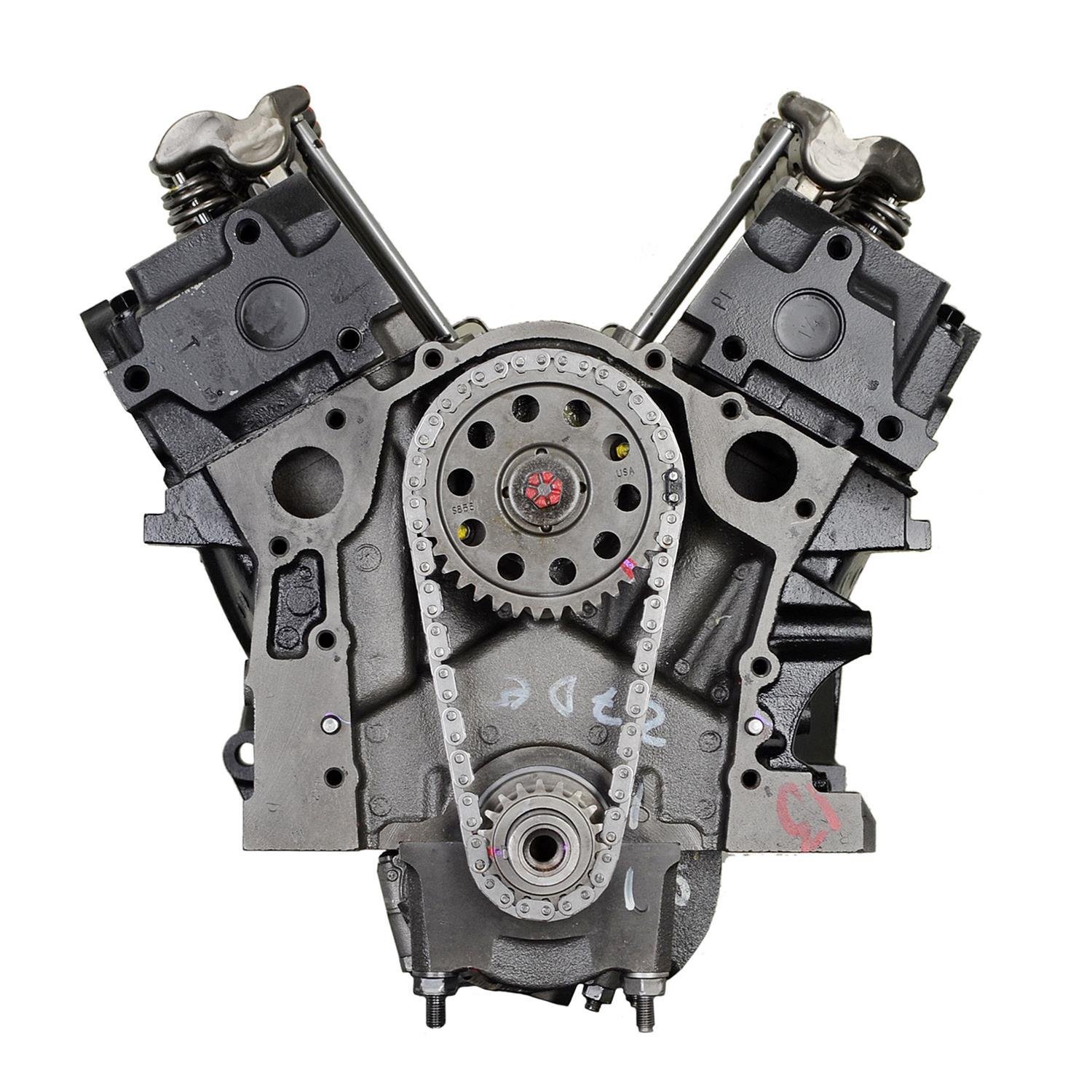

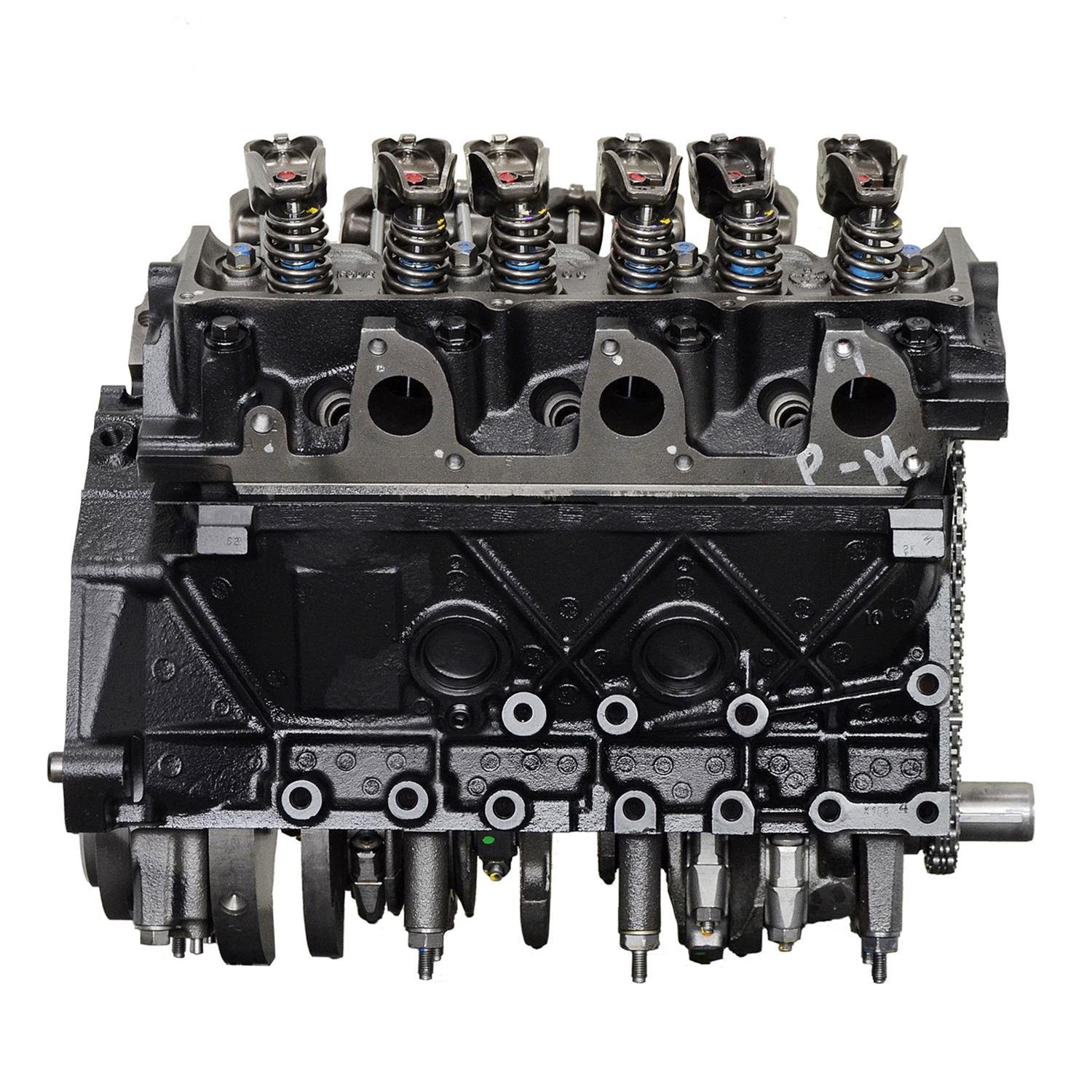

VEGE Remanufactured DFXY 3.0L 182ci High Output Long Block Engine

Description

Premature valvetrain ticking and oil starvation inside overhead cam galleries stop when mechanics install the VEGE Remanufactured DFXY 3.0L Long Block Engine. Generating 240HP from a 182ci 6-Cylinder commercial long block repower layout, this engine restores fleet operations. Installers must set the camshaft position sensor air gap to 0.035in on the rear cylinder head flange prior to installing upper intake hardware.

A precision ASTM A356-T6 cast aluminum block incorporates centrifugally spun iron liners to minimize total mass while preserving bore stability. The VEGE engine core employs induction-hardened forged steel crankshaft journals paired with stellite-faced exhaust valves. Cranking starter demand requires 12V 165A. Unrigged engine dry mass measures 365 lbs across a 24in length, 23in width, 25in height mounting stance holding 5.5 quarts oil.

Key Features of VEGE DFXY

Fleet dispatch managers buy VEGE DFXY commercial long block assemblies to prevent unpredictable roadside delivery breakdowns. Advanced production cells enforce rigid industrial engine rebuild protocols on every unit.

• Forged micro-alloy steel crankshaft maintains 0.0003in TIR centerline runout across all main journals.
• Multi-layer steel cylinder head gaskets maintain combustion chamber seal integrity under severe thermal cycling.
• Diamond plateau-honed cylinder liners establish immediate compression ring seal during initial break-in running.
• Precision CNC surfaced block decks yield 0.0002in flatness to preserve cylinder head fire ring integrity.
• High-capacity internal trochoid oil pump sustains 50 PSI line pressure across demanding fleet highway duty.
• DFXY commercial core casting includes thick perimeter ribs to dampen high-frequency chassis vibrations.
• Tri-metal copper-lead bearings deliver 0.0014in clearance to control severe hydrodynamic bearing stress.

Bench Dynamometer Load Operating Limits

Automated test cells indicate 240 continuous BHP and 205 ft-lbs torque output at 5250 RPM continuous sweep testing. Instrumentation logs 50 PSI oil gallery pressure at 190°F oil sump temperature, while exhaust gas temp records 1240°F under dyno pull. Gauge checks verify 185 PSI compression across all six cylinders within 4% variance. Center journal deflection clocks at 0.0003in TIR on the DFXY long block engine.

Field Service Directives Maintenance Rules

Mechanical throttle lever operation takes 4 lbs pull force through the linkage bracket assembly. This motor is NOT engineered for longitudinal heavy rear-wheel commercial chassis exceeding 8,500 lbs gross weight ratings. Certified technicians must carry out standardized shop procedures during initial checkout.

• Drain break-in crankcase oil supply and replace filter element at 500 miles.
• Adjust hydraulic lifter baseline preload according to factory specification before road deployment.
• Verify cylinder head bolt tension values following manufacturer sequences after 50 operating hours.

Warranty Statement Crate Manifest Contents

All rebuilding procedures meet strict VEGE assembly standard metrics covered by a 3-Year 100,000-mile warranty. The banded transport pallet holds the assembled long block, steel oil pan, aluminum timing cover, composite valve covers, oil pickup screen, and verified dyno run card.
