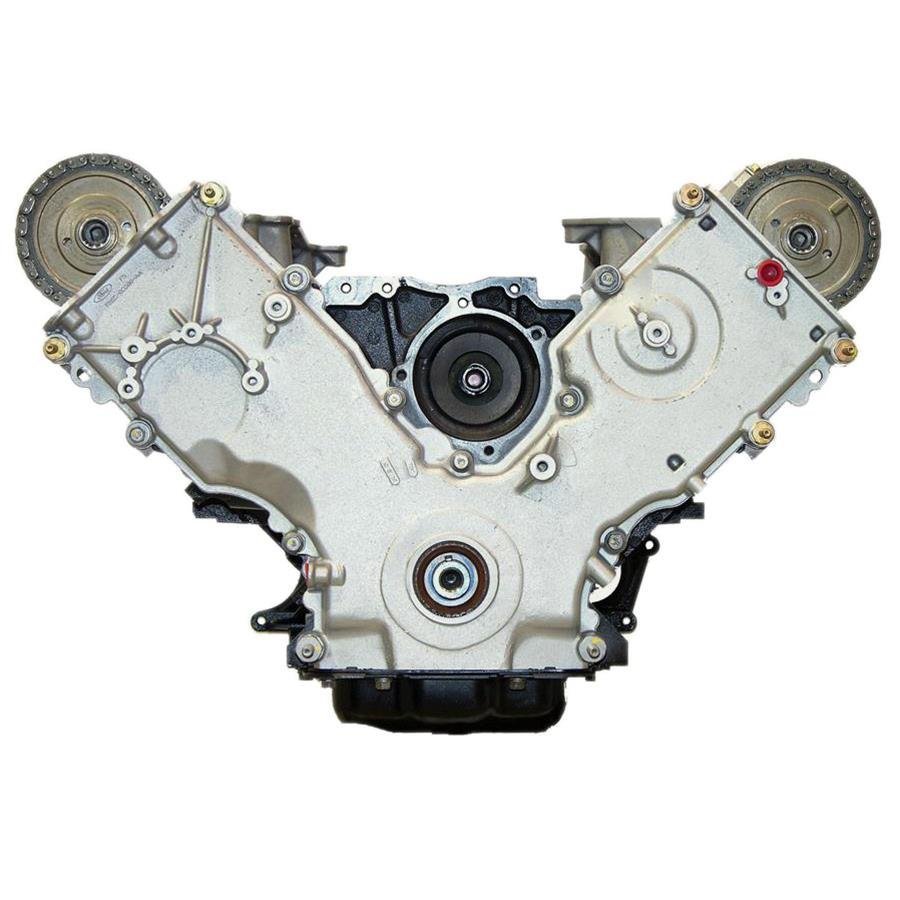

VEGE Remanufactured DFX7 5.4L 330ci Car Truck Long Block Engine

Description

Exhaust manifold flange warping and spark plug thread blowout cease after installing the VEGE Remanufactured DFX7 5.4L Long Block Engine. Generating 255HP from a 330ci 8-Cylinder commercial long block repower format, this unit powers commercial fleet haulers. Mechanics must check spark plug cylinder head thread engagement depth before installing ignition coil packs to prevent blowouts under load.

Constructed from high-tensile ASTM A48 Class 30 gray iron, the engine block resists torsional chassis twist under heavy cargo loads. The VEGE engine core utilizes induction-hardened forged steel crankshaft journals and stellite-faced valves. Cranking starter demand requires 12V 185A. Engine dry weight reaches 520 lbs inside a 28in length, 27in width, 28in height mounting stance holding 6.0 quarts oil.

Key Features of VEGE DFX7

Logistics operators buy VEGE DFX7 commercial long block engines to resolve persistent valvetrain failure across municipal transit fleets. Clean-room machine shops execute verified industrial engine rebuild tolerances on every production assembly.

• Forged micro-alloy steel crankshaft features fillet-radiused journals holding 0.0003in TIR runout limits.
• Revised spark plug port threads feature full thread depth to eliminate cylinder head plug blowouts.
• Multi-layer steel cylinder head gaskets maintain combustion chamber seal integrity under severe thermal cycling.
• Plateau-honed cylinder walls provide optimal oil retention to seat steel compression rings without blowby.
• High-flow rotor oil pump delivers 55 PSI steady pressure to protect high-RPM camshaft journals.
• DFX7 commercial core includes revised oil return channels to accelerate crankcase drainback under heavy loads.
• Tri-metal bearings feature copper-lead backing to absorb abrasive debris particles safely under heavy loads.

Dynamic Bench Load Operating Thresholds

Test cell dynamometers certify 255 continuous BHP paired with 350 ft-lbs torque output at 3500 RPM continuous test load. Fluid sensors record 55 PSI galley oil pressure at 195°F oil sump temperature, while exhaust gas temp settles at 1240°F under maximum pull. Cylinder pressure gauges verify 180 PSI compression across every cylinder within a 4% tolerance. Crankshaft runout registers 0.0003in TIR on the DFX7 long block engine.

Installation Requirements Negative Filter Rules

Mechanical throttle lever operation takes 5 lbs pull force through the linkage bracket assembly. This power unit is NOT engineered for transverse front-wheel drive car platforms or passenger vans with low doghouse clearance. Shop technicians must carry out standardized maintenance routines on all newly mounted units.

• Empty initial break-in lubricant reservoir at 500 miles or 30 run hours.
• Check hydraulic lash adjuster zero-lash travel limits prior to front timing cover sealing.
• Retorque cylinder head torque-to-yield fasteners in three steps following factory sequence.

Warranty Statement Shipping Pallet Inventory

All rebuilding procedures meet strict VEGE assembly standard metrics covered by a 3-Year 100,000-mile warranty. The wood transport container houses the long block core, stamped oil pan, aluminum front cover, stamped valve covers, oil pickup tube, and signed dyno run verification sheet.
