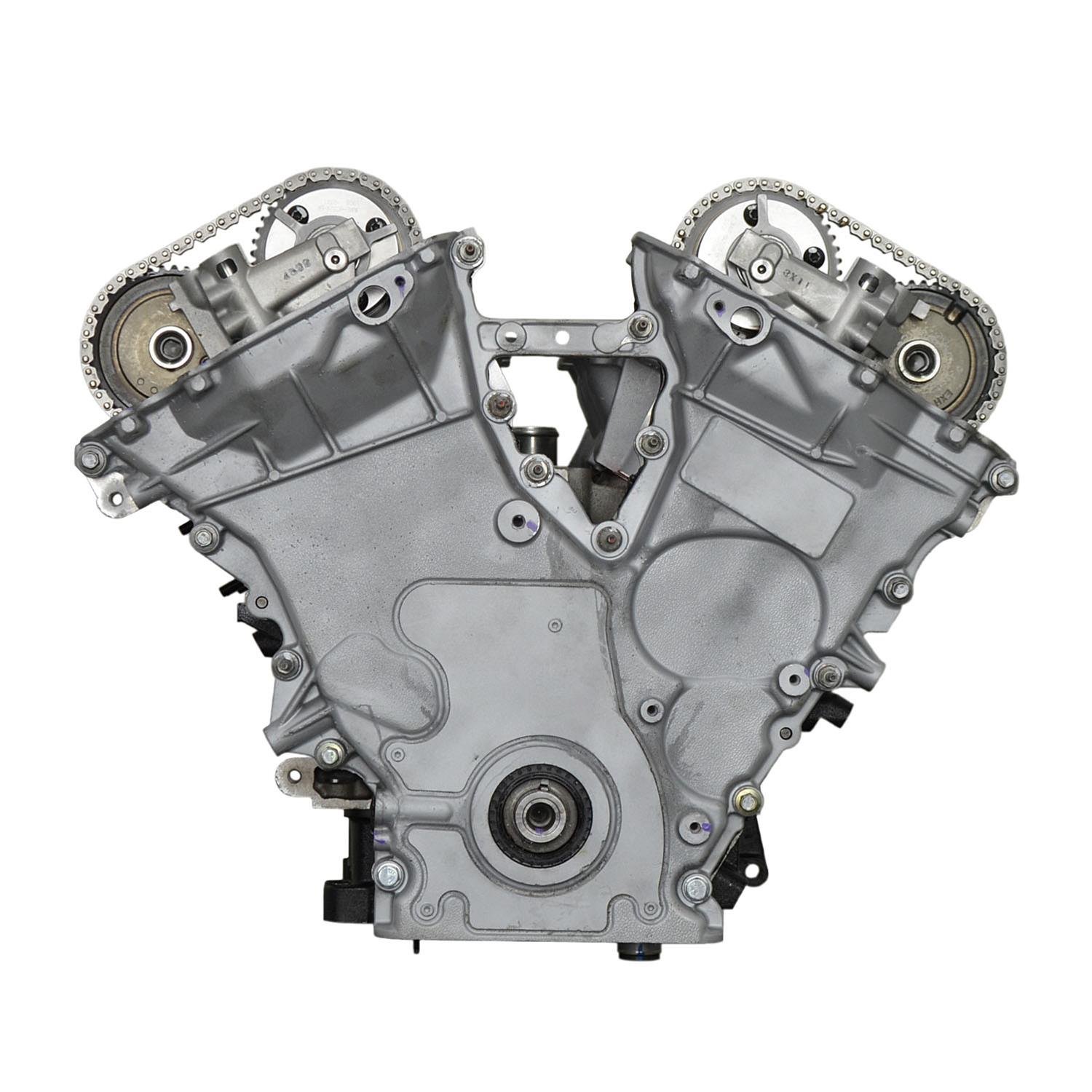

VEGE Remanufactured DFEW 3.0L 181ci Compact Car Long Block Engine

Description

Camshaft synchronizer gear drive wear and exhaust valve recession immobilize commercial courier fleet sedans. The VEGE Remanufactured DFEW Long Block Engine eliminates catastrophic oil pump drive gear failure through an industrial engine rebuild protocol. This 3.0L 181ci 6-Cylinder assembly produces 155HP. Mechanics must align the camshaft synchronizer vane using an alignment tool at compression top dead center.

Dense ASTM A48 Class 30 gray iron forms the deep skirt 60-degree V6 engine block. This VEGE engine core utilizes a precision ground nodular iron crankshaft, drop forged connecting rods, and cast aluminum pistons. Cold starting demands a 12V starter drawing 145A. Bare engine weight registers 340 lbs within outer proportions of 24in length, 23in width, 24in height backed by a 4.5 quarts oil pan.

Key Features of VEGE DFEW

Repair shops buy VEGE DFEW Long Block Engine packages to keep municipal transport sedans in continuous service. High tolerance machining restores flat combustion decks to stop coolant breaches during each commercial long block repower.

• 6-Cylinder 60-degree iron block receives align honed main bearing journals to ensure crank concentricity.
• 12-Valve cast iron heads incorporate hardened steel exhaust valve inserts to resist fuel dry burn.
• 3.0L displacement produces 185 ft-lbs torque across common municipal driving speeds.
• 0.0012in rod bearing clearance supports consistent hydrodynamic oil wedges under stop-start conditions.
• Upgraded distributor drive gears resist abrasive mesh wear from timing gear friction.
• Rigid pushrods resist flex vibration during extended highway transit periods.
• DFEW commercial core assemblies arrive with brand new high pressure oil pump screens.
• Multi layer fire ring head gaskets stop combustion gas leakage past deck surfaces.

Dynamometer Test Cell Benchmarks

Hot cell brake tests register 155BHP and 185 ft-lbs torque at 5000 RPM on the DFEW long block engine. Integrated oil sensors record 46 PSI gallery delivery at 195°F lubricant operating temperature under dyno load. Compression checks show 175 PSI in each cylinder with variance under 4% across both cylinder banks. Exhaust gas temperatures level off at 1130°F during full power runs. Calibrated dial indicators confirm crankshaft snout runout under 0.0002in TIR across all main journals.

Installation Limits Field Boundaries

Mechanical accelerator cable brackets demand 4 lbs linear pull tension to rotate the throttle valve to full stop position. This engine is not built for rear wheel drive commercial trucks, overhead camshaft Taurus models, or turbo performance applications.

• Drain initial break-in motor oil at 500 miles and refill with API certified SAE 5W-30 mineral lubricant.
• Hydraulic pushrod lifters seat into zero lash operation through factory torqued rocker arm fulcrum bolts.
• Cast iron cylinder head fasteners require dry clean threads and staged angle torque sequences on assembly.

Warranty Terms Shipment Contents

Buyers gain coverage from the VEGE assembly standard 3-Year 100,000-mile nationwide commercial warranty policy. The weather sealed wooden crate encloses the remanufactured long block, front timing cover, stamped steel oil pan, stamped rocker covers, oil pump pickup screen, and verified dyno run inspection reports.
