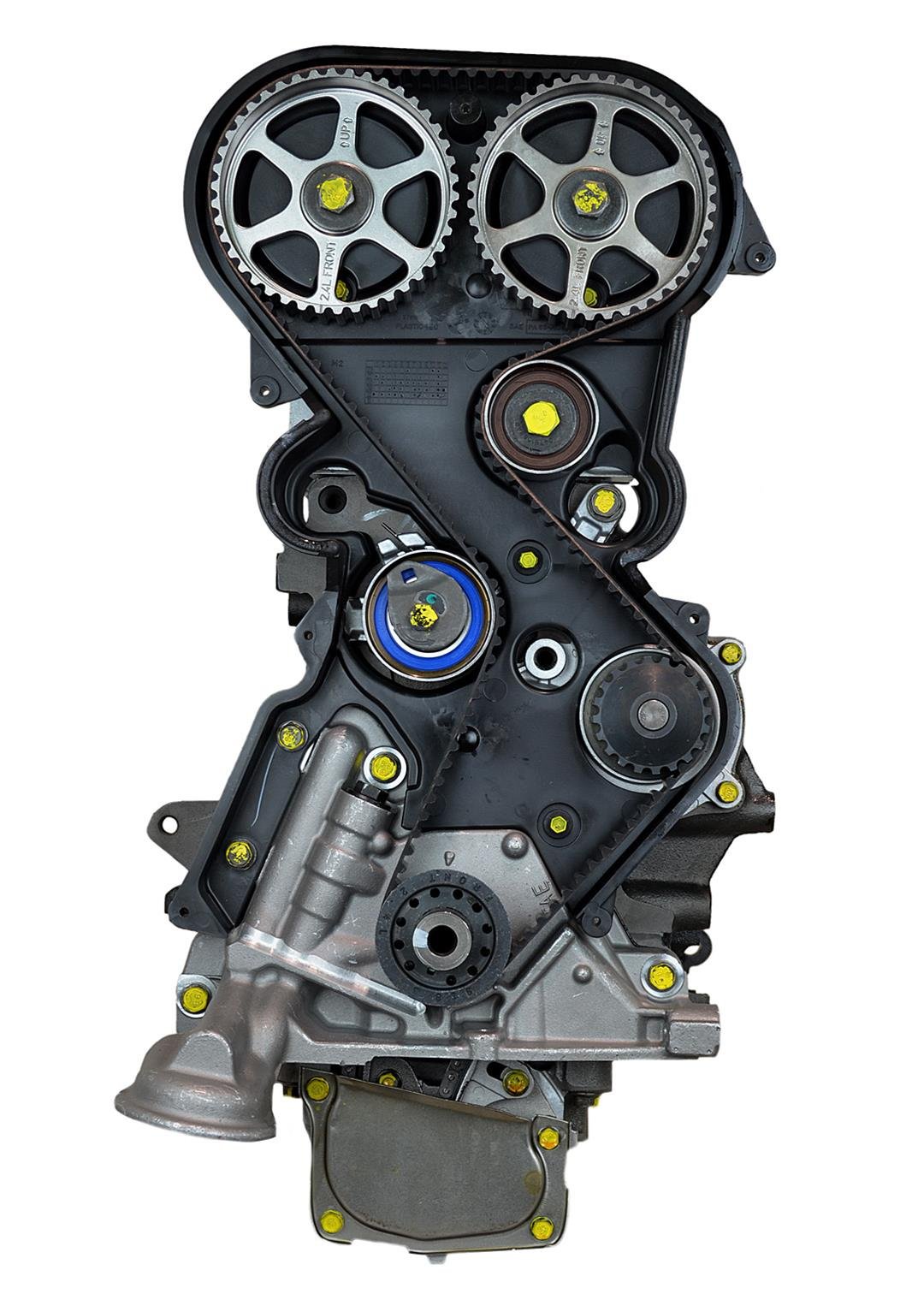

VEGE Remanufactured DDE9 2.4L 148ci High Output Long Block Engine

Description

Piston ring land thermal fracture and bedplate ladder frame sealant leaks incapacitate commercial express vans. The VEGE DDE9 High Output Long Block Engine eliminates turbo boost blowby during commercial long block repower overhauls. This 2.4L 148ci 4-Cylinder turbo plant produces 230HP. Technicians must inspect turbocharger oil feed restrictor orifices for carbon debris before oil line installation.

Reinforced A319 cast aluminum block with thick cast-in iron liners withstands high boost combustion pressures. The VEGE engine core integrates forged steel connecting rods, hypereutectic dish pistons, and stellite exhaust valves. Starter current pulls 150A on 12V. Dry weight is 310 lbs, sump capacity holds 5.0 quarts, with a mounting stance spanning 21in length, 22in width, 25in height.

Key Features of VEGE DDE9

Commercial logistics fleets buy VEGE DDE9 commercial long block repower crates for fast transport vans. The boosted dual overhead camshaft design delivers sustained passing power with heavy cargo loads.

• Cylinder bore diameter honed to 3.465in features plateau finish for boost retention.
• Piston stroke set at 3.819in produces strong pulling force under forced induction boost.
• Reinforced piston ring lands resist cracking under high temperature combustion cycles.
• Stellite faced exhaust valves shed extreme combustion heat into high flow coolant galleys.
• Forged steel crankshaft withstands heavy boost pressure without journal deflection.
• The DDE9 commercial core interfaces with front-wheel drive manual and automatic transaxles.
• Multi layer steel head gaskets prevent fire ring blowout under sustained turbo boost.
• High capacity oil pump provides steady lubricant volume to turbo bearings and journals.

Hot Dynamometer Proofing Data

Live dynamometer diagnostics test each DDE9 long block engine before shipping crate sealing. Bench readouts verify 230 BHP and 250 ft-lbs torque output at 3800 RPM continuous load. Oil gallery pressure maintains 55 PSI at 195°F oil sump temperature. Pyrometer probes show 1200°F EGT across manifold branches. Cylinder compression reads 175 PSI across all four cylinders. Crankshaft center journal runout remains below 0.0002in TIR limit under dynamic full load testing.

Chassis Installation Limits Criteria

Throttle linkage requires 5 lbs spring return pull force for positive throttle plate return. Do not place this high output turbocharged engine into naturally aspirated vehicles lacking intercoolers and high flow fuel systems.

• Flush break-in petroleum motor oil and change oil filter element after 500 initial miles.
• Check mechanical bucket valve lash to verify 0.008in intake and 0.012in exhaust cold.
• Torque cylinder head fasteners to 26 ft-lbs plus two passes of 90 degrees rotation.

Factory Shipping Crate Contents

Supported by the industrial VEGE assembly standard 3-Year 100,000-mile nationwide warranty, this package arrives in protective crating. Shipment encompasses the remanufactured long block, aluminum oil pan, timing cover, composite valve cover, oil pickup tube, and signed dyno certificate.
