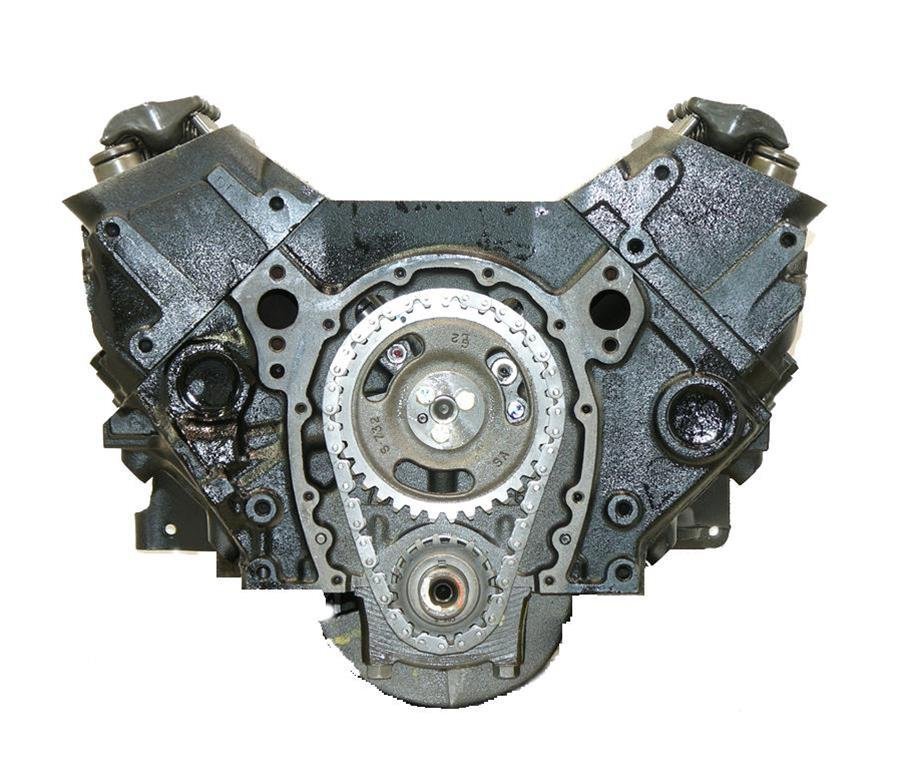

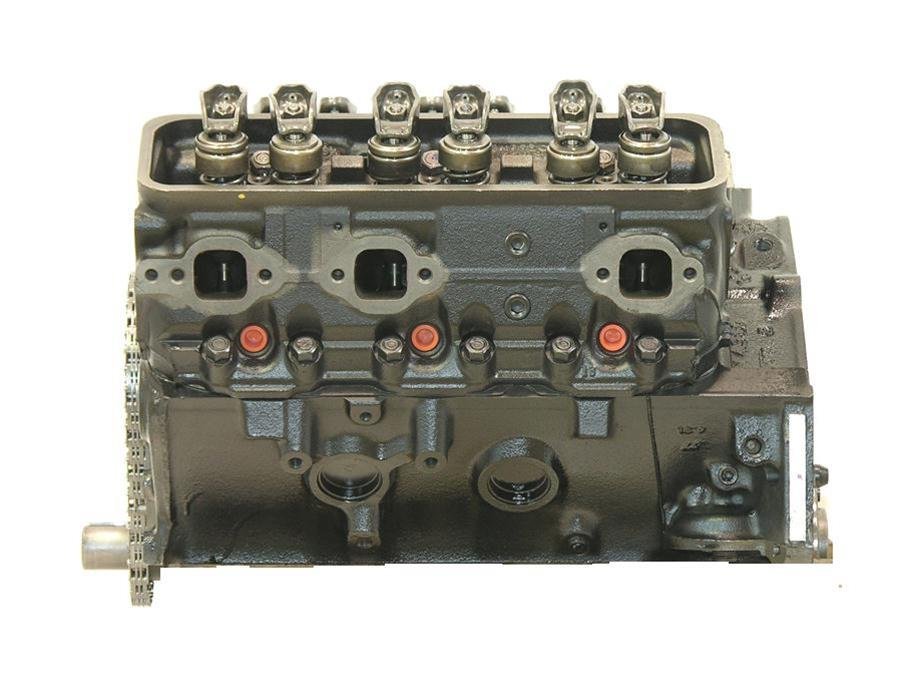

VEGE Remanufactured DCV6 4.3L 262ci Car Truck Long Block Engine

Description

Master mechanics deploy the trusted VEGE DCV6 Car Truck Long Block Engine to execute a dependable commercial long block repower. This 4.3L 262ci 6-Cylinder workhorse delivers 195HP for parcel delivery vans. Installers must confirm correct knock sensor thread location in the block drain port because sensor thread diameters differ between early and late vehicle models.

High tensile ASTM Class 30 pearlitic gray iron provides exceptional block stiffness under severe stop-and-go load cycles. Each VEGE engine core carries a balanced nodular iron crankshaft and hardened cast iron camshaft. Intake and exhaust valves use durable stellite face coatings to survive high combustion chamber temperatures. The 12V electrical starter draws 160A during crank testing. Dry weight equals 420 lbs with an envelope of 27in length, 24in width, 26in height, and 4.5 quarts sump capacity.

Key Features of VEGE DCV6

Technicians choose to buy VEGE DCV6 Car Truck Long Block Engine hardware to conquer an industrial engine rebuild with minimum bay turnaround time. Each block undergoes hot tank cleaning and magnetic particle inspection to eliminate casting crack failures.

• A displacement of 4.3L 262ci yields balanced torque across the entire work truck acceleration band.
• Precision CNC bored cylinders guarantee uniform cylinder wall thickness for thermal stability.
• Heavy duty valve springs prevent valvetrain float when hauling maximum cargo loads uphill.
• The DCV6 commercial core utilizes an internal balance shaft to neutralize primary engine vibrations.
• Diamond honed connecting rod big ends maintain 0.0015in clearance for constant oil wedge formation.
• Abrasion resistant timing chain gears prevent chain stretch and preserve injection cam retard values.
• Corrosion resistant core plugs protect water jackets from cooling system electrolysis degradation.

Dynamometer Verification Operational Thresholds

Dyno verification indicates this DCV6 long block engine produces 195HP and 260 ft-lbs of torque at 3,800 RPM. Continuous dynamometer runs hold 2,400 RPM while internal oil gallery pressure stays between 50 PSI and 65 PSI. Sump fluid stabilizes at 192°F and exhaust temperatures register 1,190°F under heavy load. Piston compression tests yield 175 PSI in each cylinder with less than 4% deviation across all cylinders. Crankshaft journal runout remains under 0.0003in TIR to prevent premature bottom end bearing failure.

Field Installation Maintenance Protocols

Direct mechanical throttle linkages need 5 lbs pull force to ensure positive mechanical throttle closing action. Do not drop this commercial replacement engine into high displacement watercraft or chassis lacking proper transmission bellhousing dowel pins. Maintenance mechanics must conduct scheduled service checks to ensure continuous fleet operation.

• Change break-in engine oil and the full flow spin-on filter after 500 miles or 30 operating hours.
• Verify non-adjustable hydraulic roller lifters sit flat on camshaft lobes without pushrod cup play.
• Retorque intake manifold mounting fasteners to 11 ft-lbs following initial operating temperature warm-up.

Crate Manifest Coverage Terms

Manufacturing adheres to the certified VEGE assembly standard backed by a 3-Year 100,000-mile parts warranty. Inside the rugged wooden crate rests the long block core, stamped oil pan, timing cover, steel valve covers, oil pump with screen, and the dynamometer verification sign-off sheet.
