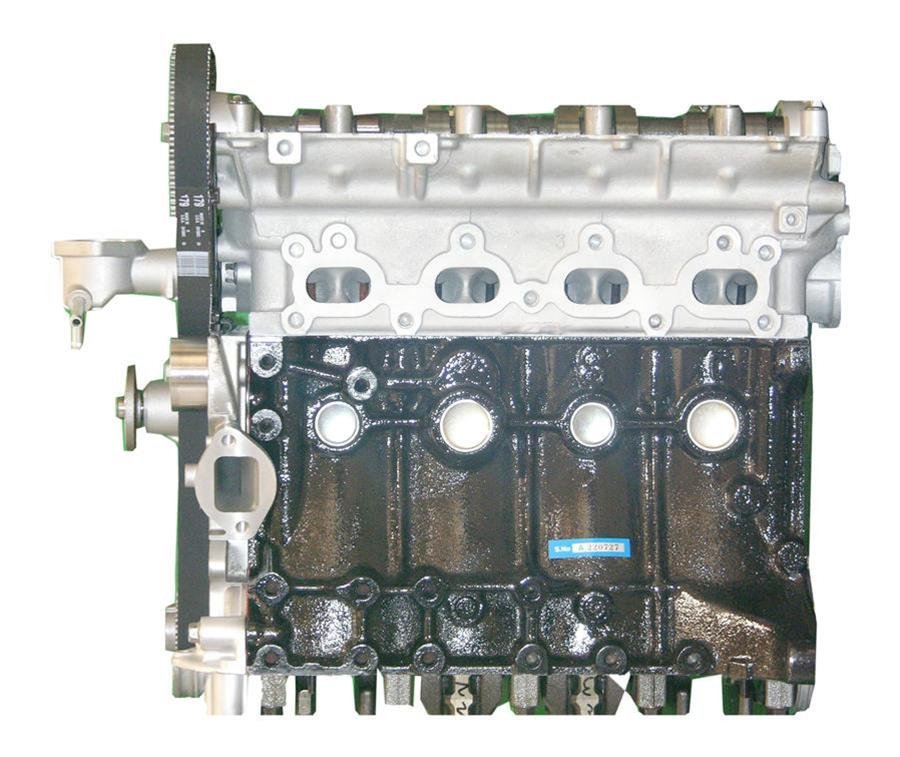

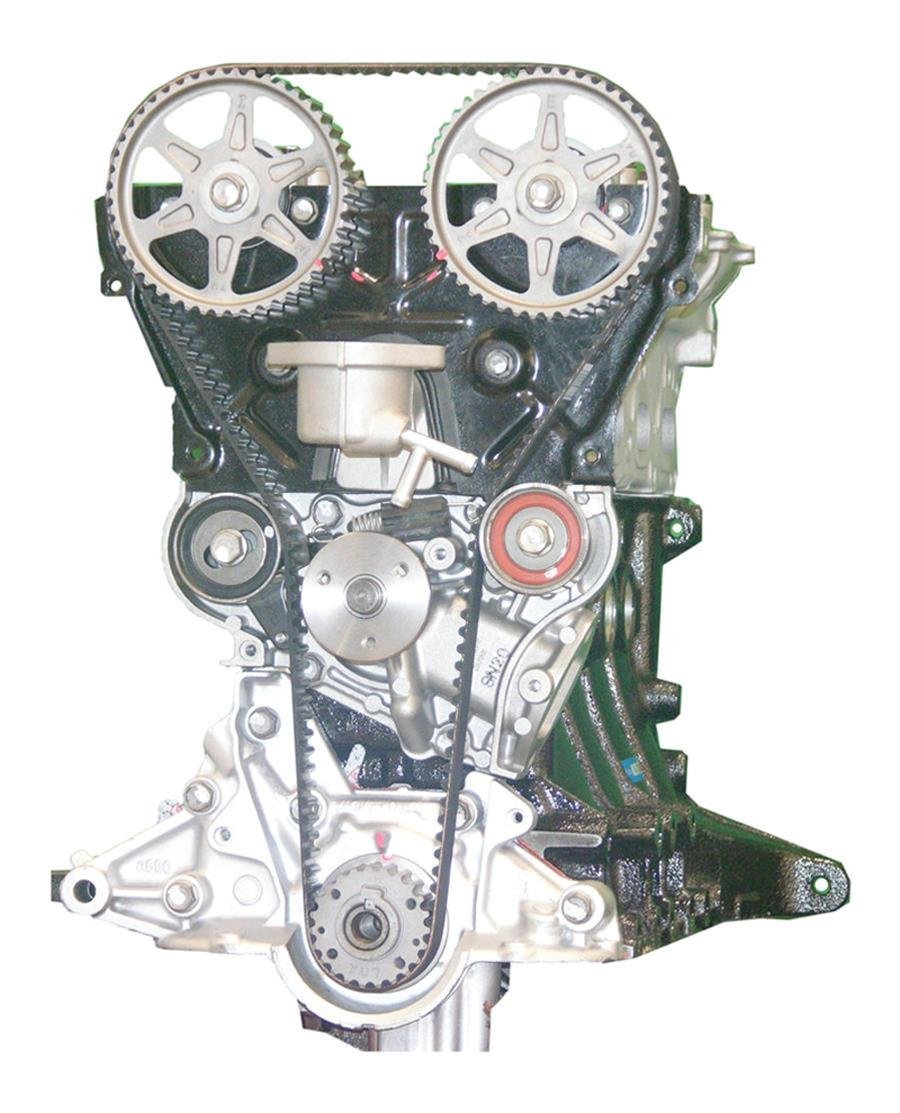

VEGE Remanufactured 619 1.6L 1597cc Compact Car Long Block Engine

Description

Stop severe fleet downtime with the VEGE 619 Compact Car Long Block Engine. This 1.6L 1597cc 4-Cylinder engine develops 88HP for cost conscious commercial long block repower operations. Mechanics must measure bellhousing dowel pin protrusion before mating the transaxle to prevent binding the input shaft bearing.

Cast pearlitic iron forms the crankcase housing on this dependable VEGE remanufactured long block. A micro-polished nodular cast iron crankshaft spins inside micro-bored bearing saddles for quiet running. Cranking systems draw 145A on a 12V circuit. Net dry weight measures 245 lbs across physical bed dimensions of 22in length by 20in width by 21in height with 3.8 quarts sump capacity.

Key Features of VEGE 619

Commercial shops buy VEGE 619 Compact Car Long Block Engine inventory to restore municipal delivery vehicles during an industrial engine rebuild. Quality control technicians verify deck flat surfaces on precision diamond broach machines.

• Bore dimension of 3.07in pairs with 3.29in stroke for optimized fuel vaporization efficiency.
• Lightweight aluminum cylinder heads dissipate heat rapidly under persistent inner city stop and go stress.
• Hardened steel valve seats resist unleaded fuel erosion over hundreds of operating hours.
• Precision ground pistons include low friction skirt coatings to diminish cold bore wear.
• The 619 commercial core features matched wrist pins with 0.0004in floating pin clearances.
• Full circumference oil control rings clear excess oil films to prevent spark plug fouling.
• Elastomeric front crank dampers absorb torsional crank twisting to protect valvetrain timing belts.

Dynamic Dyno Load Tolerances

Verification cells test the 619 long block engine against factory baseline curves. The dynamometer reports 88 continuous BHP and 96 ft-lbs torque output at 3,000 RPM. Main gallery oil pressure reads 50 PSI at 188°F sump temperature. Exhaust gas probes measure 1,280°F under highway cruising simulations. Cylinder compression reads 175 PSI per cylinder with zero deviation above 4% while crankshaft runout measures 0.0002in TIR.

Field Service Operator Guidelines

Throttle shaft bellcranks accept 3.5 lbs cable pull tension for smooth driver modulation. Do not install this compact engine into delivery vans grossing over 3,800 lbs chassis weight to prevent continuous thermal overload.

• Drain crankcase oil and install new spin-on filter elements every 3,000 miles.
• Check valve clearances cold every 30,000 miles maintaining 0.008in intake and 0.010in exhaust gaps.
• Confirm cylinder head fastener torque at 55 ft-lbs after the initial 60 hours in service.

Factory Warranty Crate Details

This engine package fulfills every point of the VEGE assembly standard for fleet deployment. Protection includes a 3-Year or 100,000-mile commercial limited powertrain warranty. Uncrate the unit to find the tested long block core, oil pan, stamped timing cover, valve cover, screened oil pump pickup, and quality clearance certificate.
