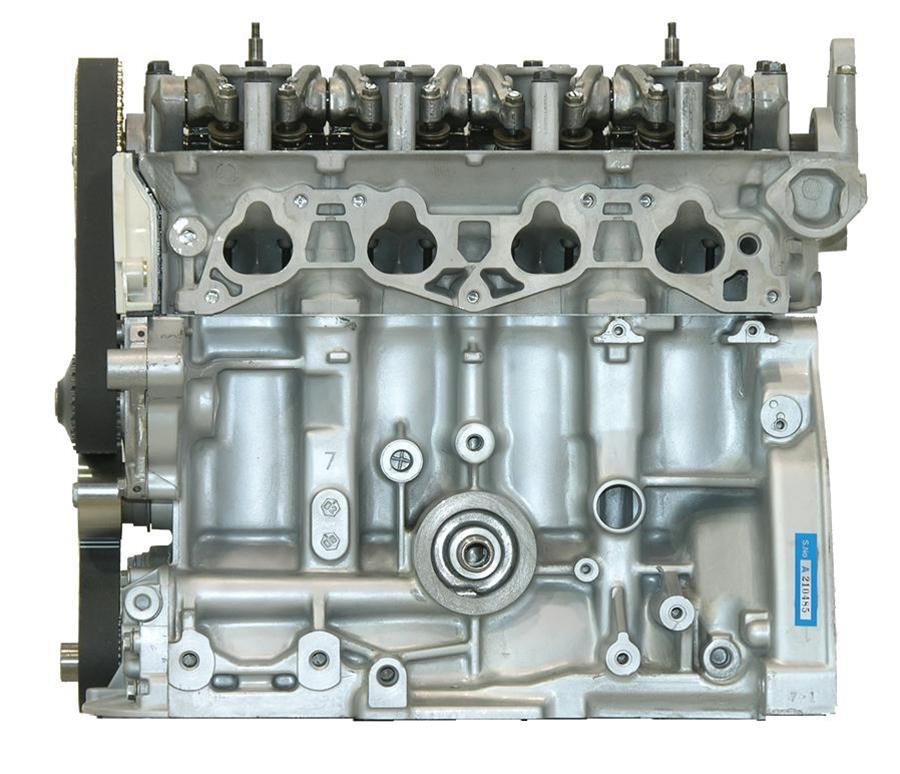

VEGE Remanufactured 518F 1.5L 1493cc Compact Car Long Block Engine

Description

Exact 1.5L displacement geometry defines the VEGE Remanufactured 518F Compact Car Long Block Engine, built to restore high-efficiency urban transport sedans. This 1.5L 1493cc inline-4 compact car long block replacement outputs 102HP across an aluminum block design. Tight transverse engine bay packaging requires careful hoist leveling during placement to avoid engine bay sensor damage.

High-pressure die-cast aluminum block architecture with cast iron cylinder liners gives the VEGE 518F long block assembly lightweight structural stability. The 5-main bearing bottom end supports a precision balanced forged steel crankshaft. Designed for 12V automotive electrical circuits, cold starter current draws 125A. Net dry weight lands at 220 lbs within a base envelope of 22in length by 20in width and 23in height. Sump oil capacity holds 3.8 quarts.

Key Features of VEGE Remanufactured 518F

Municipal fleet technicians buy VEGE Remanufactured 518F engines to complete an economical compact car long block repower on small utility runabouts and courier cars. This VEGE remanufactured long block provides direct bolt-in fitment for 1.5L front-wheel drive platforms.

• Five main bearing journals support the crankshaft to resist rotational flex under load.
• Cast aluminum pistons feature micro-grooved skirts for uniform 0.0012in cylinder wall clearance.
• Single overhead camshaft design reduces moving valvetrain mass and simplifies maintenance.
• Precision ground valve seats ensure tight combustion chamber seal under continuous load.
• High-strength timing belt drive maintains camshaft phase synchronization without tooth skip.
• Trochoid type oil pump pushes 40 PSI through internal galleries at operating temperature.
• Factory transaxle mounting pattern mates this 518F compact car core to original transmissions.

Dyno Verification Thermal Limits

Dynamometer water brake testing confirms this 518F long block engine generates 102HP at 5,900 RPM and 98 ft-lbs torque output at 3,400 RPM on standard commercial fuels. Oil pressure stabilizes at 42 PSI with oil pan temperatures held at 185°F during step load testing. Coolant loop passages maintain 180°F under full water brake resistance. Cylinder compression gauges show 165 PSI across all 4 cylinders with variance under 2%. Crankshaft journal runout checks out at 0.0003in TIR on dial indicators.

Transverse Chassis Installation Bounds

Throttle cable connections require 3 lbs pull force for smooth accelerator pedal action. Do not install this 1.5L inline-4 compact car long block engine in commercial trucks carrying heavy payloads over 3,500 lbs GVW. Mechanics must inspect front-wheel drive transaxle spline alignment before torquing bellhousing hardware to this 518F engine core.

• Change 5W-30 motor oil and spin-on filter every 250 operating hours or 3,500 miles.
• Inspect timing belt condition and tensioner pulley bearings every 500 operating hours.
• Check water pump seal and cooling system hose clamps every 600 run hours.

Standard Warranty Crate Manifest

VEGE backs this compact car long block with a 3-Year or 100,000-mile limited commercial warranty. The banded wooden freight box contains the remanufactured 518F long block core, stamped oil pan, front timing cover, stamped valve cover, internal oil pump, and complete factory installation setup instructions.
