Edelbrock 46410 Performer Hi-Torq 350 Short Water Pump Engine

Description

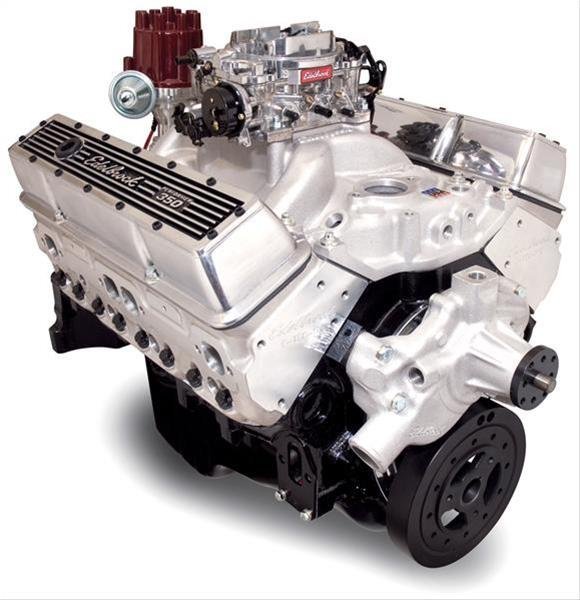

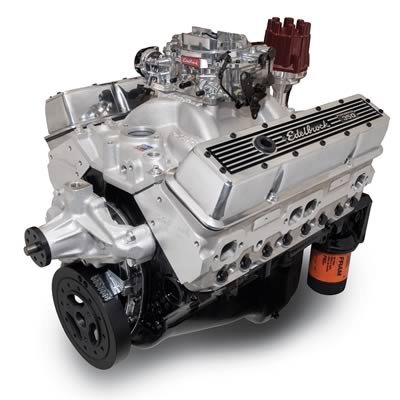

Get reliable pulling power and classic hot rod clearance with the Edelbrock 46410 Performer Hi-Torq 350. This 5.7L build uses a tough 4-bolt main cast iron block and ships with a short water pump to clear tight custom radiator setups. Making a solid 363 HP with aluminum heads, a dual-plane intake, and a torque-focused cam, this small block runs smoothly on regular pump gas without breaking your budget.

Key Features of Edelbrock 46410 Performer Hi-Torq 350

• Short Water Pump Setup: Pulley hub sits closer to the engine block to easily clear radiators in 1930s to 1950s classic chassis.
• Cast Iron 4-Bolt Main Block: Keeps the lower end rigid to prevent bearing wear during heavy street cruising or hauling.
• Aluminum Cylinder Heads: Flows air smoothly and sheds heat faster than restrictive, heavy stock cast iron heads.
• Performer Hi-Torq Camshaft: Ground specifically to deliver a smooth, vacuum-friendly idle and massive low-RPM pulling power.
• Budget-Friendly Compression: Runs a safe 9.0:1 compression ratio so you can fill up with standard regular pump gas safely.
• Dual-Plane Intake Manifold: Arrives with an Edelbrock Performer aluminum intake pre-installed to boost bottom-end throttle response.

Component Breakdown: Base Long Block Configuration

This 350ci long block comes assembled and sealed to save you time and gasket alignment issues.

• The 4-bolt main cast iron block is fully packed with a balanced crank, rods, pistons, and a hydraulic lifter cam.
• Includes high-flow aluminum cylinder heads, valve covers, a Performer intake manifold, and the required short water pump bolted down.

Vehicle Fitment & Compatibility Matrix

This compact small block Chevy drops right into vintage engine bays using stock SBC mounts. Upgrading your hot rod with a short-pump 350 crate engine modernizes your classic driveline instantly.

• Fits 1932-1954 Chevrolet custom street rods needing short water pump clearance for the radiator.
• Fits classic Chevy Bel Air and early Corvette chassis requiring a tight front-end accessory drive.
• Fits classic Chevy C10 pickup trucks looking for a smooth 363 HP aluminum-head engine upgrade.
• Fits custom T-Bucket builds and open-engine hot rods demanding a clean, classic short-pump aesthetic.

Fuel & Ignition System Requirements

Feed this high-torque small block with standard, reliable fuel and ignition hardware.

• Bolt on a 600-650 CFM 4-barrel carburetor and feed it with a standard mechanical fuel pump.
• Drop in an HEI distributor and connect it to a 12V switched source for clean, easy spark delivery.

Installation, Break-In Oil & Priming Instructions

Proper startup is the most important step in protecting your new engine.

• Remove the distributor gear and spin the oil pump manually with a drill to prime the oil galleries.
• Use conventional high-zinc break-in oil for the first 500 miles to let the new valvetrain wear in safely.

USA Warranty, Emissions & Logistics

We ship this classic engine fully assembled and sealed on a freight pallet for safe delivery.

• Protected by an official 2-Year, unlimited-mileage warranty against any internal assembly defects.
• This engine is built for pre-emissions classic vehicles, hot rods, or off-road track use.
