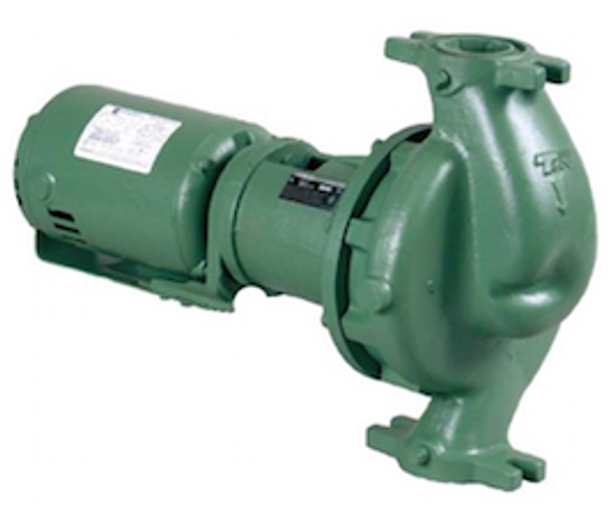

Taco 1615E3E2 1600 In-Line Centrifugal Pump 1HP 3PH

Confirm the performance rating before selecting Taco 1615E3E2 1 HP three-phase in-line centrifugal pump for industrial central-plant circulation. The supplied data lists 208–230/460-volt service, 3.6A or 1.8A current, 150 GPM flow, and 50 feet of head. Taco’s current 1615 family range is listed at 7–73 GPM and 8–43 feet, so the supplied flow and head require exact curve verification.

The 1615E3E2 uses a cast-iron casing, cast-bronze impeller, alloy-steel shaft with cupro-nickel sleeve, and ceramic-face/EPT elastomer seal. Its 1 HP three-phase motor runs at 1,725 RPM, with external overload protection required. The supplied data lists 175 psi pressure, 250°F maximum fluid temperature, 12-inch length, sealed ball bearings, and 58 pounds dry weight. Reconcile the performance data before ordering.

Key Features & Benefits

• 1 HP Three-Phase Motor: Supports industrial HVAC distribution when the verified curve matches.
• 208–230/460-Volt Service: Requires field voltage and phase-rotation checks.
• 150 GPM Listed Flow: Requires confirmation because it exceeds Taco’s published 1615 family range.
• 50 Feet Listed Head: Must be matched to the actual impeller trim and curve.
• 1-1/2-Inch Two-Bolt Flange: Supports replacement planning when the connection matches.
• External Overload Required: Requires suitable motor protection in the control package.
• 58-Pound Dry Weight: Helps plan lifting and support.

Why Choose Taco 1615E3E2 Three-Phase

This Taco configuration offers a 1 HP three-phase package for industrial HVAC circulation. Its supplied hydraulic values must be reconciled with Taco’s current 1615 family documentation before marketing or installation.

• Build: Cast iron, cast bronze, alloy steel, cupro-nickel, and ceramic/EPT components define the assembly.
• Value: Correct curve verification can prevent oversizing and commissioning problems.
• Audience: Fits central-plant contractors, facility engineers, boiler technicians, and industrial maintenance teams.

Applications & Use Cases

Consider this pump for industrial central-plant circulation only after the 150 GPM and 50-foot values are confirmed. Check the flange, 12-inch length, pipe supports, valve clearance, phase rotation, overload protection, and 58-pound handling requirement.

Warranty & Support

• Warranty Terms: Taco warranty duration and coverage for this 1600 Series configuration require confirmation under current commercial terms.
• Coverage Review: Confirm date-code requirements, seal exclusions, electrical conditions, and claim procedures before purchase.
• Model Verification: Match Taco 1615E3E2, 1 HP, three-phase configuration, and SKU 1615E3E2-1-3 to the seller’s order.

Verify the exact pump curve, voltage, current, flange, impeller, and overload protection before wiring. Purchase the Taco 1615E3E2 1 HP three-phase in-line centrifugal pump from Mulmotor.com for authentic equipment, applicable warranty protection, and technical pump support.
