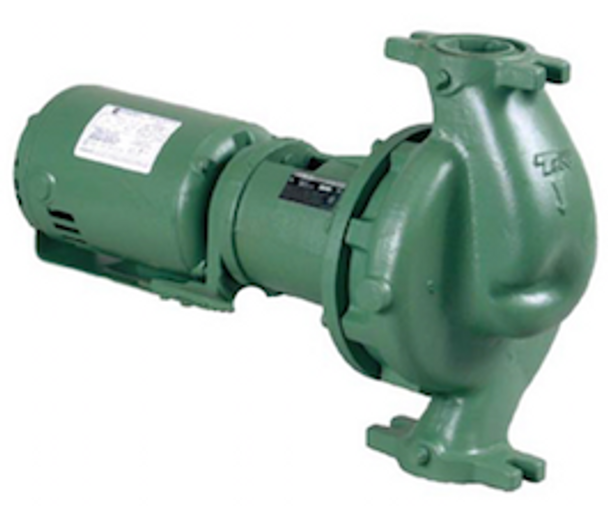

Taco 1615E3E1 1/2HP 3PH 1600 Series In-Line Centrifugal Pump
The USA-made in-line centrifugal Taco 1615E3E1 uses a 1/2 HP ODP motor running at 1725 RPM to circulate 120 GPM through HVAC heating loops.
- 120 GPM volume clears boiler lines
- 38 feet head overcomes pipe drag
- 460V option connects to industrial panels
- Sealed ball bearings eliminate manual greasing
- 1.5 inch connections connect standard lines
Description
Move high-volume facility water with Taco 1615E3E1, a 1/2 HP three-phase close-coupled in-line centrifugal pump for closed-loop HVAC heating and cooling. Its 208–230/460 V motor, 120 GPM maximum flow, and 38 feet maximum head suit commercial secondary pumps where three-phase service is available. Confirm external overload protection, flange spacing, and system resistance before installation.
The 1725 RPM NEMA 56 ODP motor drives a one-piece cast-bronze impeller through an alloy-steel shaft with cupro-nickel sleeve. The ceramic face and EPT elastomer seal manage fluid at the shaft, while the pump carries a 175 psi pressure rating and 250°F maximum fluid temperature. Verify the 2.0 or 1.0 amp full-load current, 12-inch flange-to-flange length, and 50-pound dry weight before startup.
Key Features & Benefits
- 1/2 HP Three-Phase Motor: Supports facility HVAC secondary-pump applications.
- 208–230/460 V Service: Fits compatible commercial electrical systems with verified phase rotation.
- 120 GPM Maximum Flow: Handles larger closed-loop HVAC circulation within the stated range.
- 38 Feet Maximum Head: Helps contractors compare the pump with system resistance.
- 1-1/2-Inch Two-Bolt Flange: Provides a clear piping reference for replacement work.
- 175 psi Maximum Pressure: Establishes the listed pressure boundary for compatible systems.
- 12-Inch Flange-to-Flange: Helps plan pipe alignment and available service clearance.
- External Overload Required: Identifies the motor-protection requirement for field installation.
- 50-Pound Dry Weight: Gives technicians a practical handling reference before installation.
Why Choose Taco 1615E3E1
The Taco 1615E3E1 combines three-phase voltage flexibility with higher flow and head ratings for commercial facility HVAC loops.
- Build: Cast iron, cast bronze impeller, cupro-nickel shaft sleeve, ceramic seal face, and ODP motor define the pump.
- Value: The listed current, dimensions, pressure, flow, and head support accurate replacement planning.
- Audience: Suited to facility engineers, commercial HVAC contractors, boiler technicians, and maintenance teams.
Applications & Use Cases
Use Taco 1615E3E1 for closed-loop commercial HVAC heating and cooling, boiler branches, and facility secondary pumps. The pump has a 12-inch flange-to-flange length and 50-pound dry weight, with 120 GPM maximum flow and 38 feet maximum head. Verify pipe support, valve access, external overload protection, and service clearance before installation.
Warranty & Support
- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Taco or the seller.
- Match model 1615E3E1, 1/2 HP motor, three-phase voltage, full-load current, flange size, and overload requirements before ordering.
Flush and fill the loop, purge trapped air, inspect the seal and flange gaskets, and verify phase rotation before startup. Confirm external overload protection and monitor flow, pressure, vibration, temperature, and leakage during commissioning. Purchase the Taco 1615E3E1 1/2 HP three-phase HVAC pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
Taco 1615E3E1 Cast Iron 1/2HP 3PH Pump Specs
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Taco Comfort Solutions - 1600 Series |
| Model Number/SKU | 1615E3E1 (Cast Iron) |
| Country of Origin | USA |
| Pump Type | In-Line Centrifugal Pump |
| Horsepower (HP) | 1/2 HP |
| Voltage (V) & Phase (PH) | 208-230/460V / 3 PH / 60Hz |
| Amperage (FLA) | 2.0A / 1.0A |
| Motor RPM | 1725 RPM |
| Motor Type | NEMA 56 Frame / ODP High Efficiency |
| Connection Type | 2-Bolt Flange |
| Connection Size (Inches) | 1-1/2" |
| Body Material (Casing) | Cast Iron (ASTM A48 Class 30) |
| Impeller Material | One-Piece Cast Bronze |
| Shaft Material | Alloy Steel w/ Cupro-Nickel Sleeve |
| Mechanical Seal Type | Ceramic Face / EPT Elastomer |
| Max Flow Rate (GPM) | 120 GPM |
| Max Head (Feet) | 38 Feet |
| Max Operating Pressure (PSI) | 175 PSI |
| Max Fluid Temperature (°F/°C) | 250°F (121°C) |
| Min Fluid Temperature (°F/°C) | 40°F (4°C) |
| Drive Type | Close-Coupled |
| Bearing Type | Sealed Ball Bearings (Maintenance-Free) |
| Flange-to-Flange Length | 12 Inches |
| Shut-off Head | 40 Feet |
| Thermal Protection | External Overload Required |
| Service Factor | 1.15 |
| Dry Weight (lbs/kg) | 50 lbs (22.7 kg) |
| Application Suitability | Closed-Loop HVAC Heating/Cooling |
| Compliance | UL Listed / CSA Approved |
| SEO Usage Profile | Facility HVAC Secondary Pumps |
