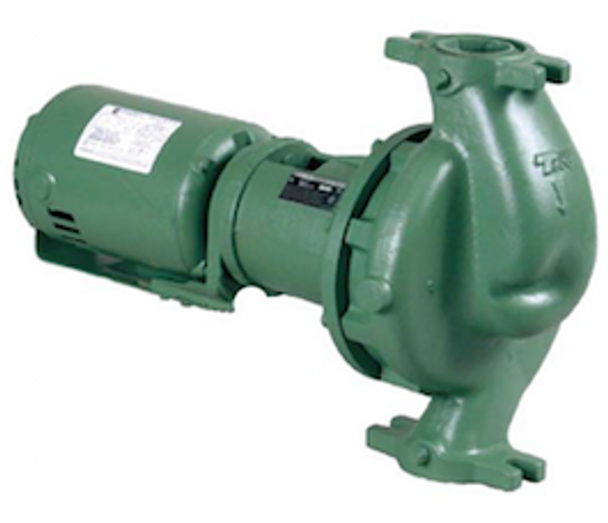

Taco 1614E 1600 Series Centrifugal Pump 3/4HP 1PH

Description

Move high-flow hydronic water with Taco 1614E, a 3/4 HP close-coupled in-line centrifugal pump for residential and commercial heating systems. Its 115/230 V single-phase motor, 1-1/2-inch two-bolt flange, and 110 GPM maximum flow provide useful replacement references for larger hydronic circuits. The 50 feet maximum head also gives contractors a clear starting point for system-curve comparison.

The 1725 RPM NEMA 56 ODP motor uses a one-piece cast-bronze impeller, alloy-steel shaft with cupro-nickel sleeve, and ceramic face with EPT elastomer seal. The pump is rated for 175 psi and fluid temperatures from 40°F to 250°F. Verify the 10.6 or 5.3 amp full-load current, 12-inch flange-to-flange length, 58-pound dry weight, and required operating point before installation.

Key Features & Benefits

• 3/4 HP Motor: Supports high-performance hydronic HVAC and commercial heating circulation.
• 115/230 V Single-Phase: Provides flexible electrical connection for compatible US installations.
• 110 GPM Maximum Flow: Handles larger hydronic circuits within the stated performance range.
• 50 Feet Maximum Head: Helps contractors compare the pump with higher-resistance system requirements.
• 1-1/2-Inch Two-Bolt Flange: Provides a clear piping reference for replacement work.
• 175 psi Maximum Pressure: Establishes the listed pressure boundary for compatible closed-loop systems.
• Internal Thermal Overload: Provides the specified motor-protection feature during compatible operation.
• 12-Inch Flange-to-Flange Length: Helps installers plan pipe alignment and replacement clearance.
• 58-Pound Dry Weight: Gives technicians a useful handling reference before installation.

Why Choose Taco 1614E

The Taco 1614E offers a strong combination of flow capacity, head rating, electrical flexibility, and detailed dimensional data for larger residential and commercial hydronic systems.

• Build: Cast iron, cast bronze impeller, cupro-nickel sleeve, ceramic seal face, and ODP motor define the assembly.
• Value: The listed current, dimensions, pressure, flow, and head help contractors plan a more accurate replacement.
• Audience: Intended for HVAC contractors, boiler technicians, facility engineers, and hydronic maintenance teams.

Applications & Use Cases

Use Taco 1614E for residential and commercial hydronic heating, boiler branches, large HVAC loops, and compatible 1-1/2-inch flanged piping. The pump measures 12 inches flange-to-flange and weighs 58 pounds dry, with a stated 110 GPM maximum flow and 50 feet maximum head. Verify supports, valves, clearance, and flow direction before installation.

Warranty & Support

• Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Taco or the seller.
• Match model 1614E, horsepower, voltage, full-load current, flange size, and pump curve before ordering.

Flush and fill the loop, purge trapped air, inspect the seal and flange gaskets, and verify the selected voltage before startup. Monitor pressure, flow, vibration, temperature, and leakage during commissioning. Purchase the Taco 1614E 3/4 HP in-line hydronic centrifugal pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
