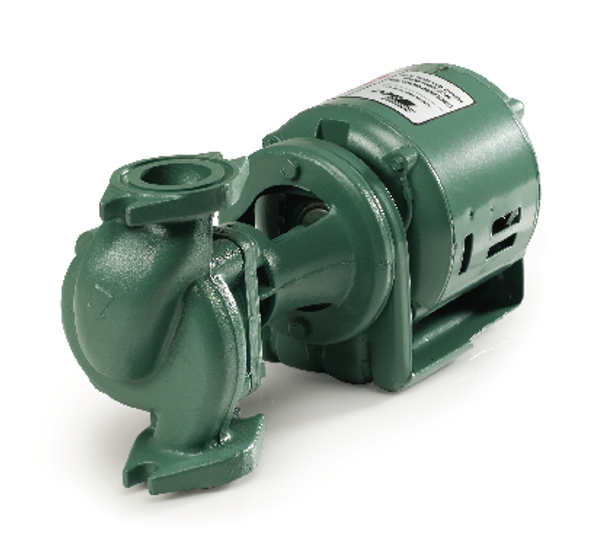

Taco 113-C4 Cast Iron Pump 1/8 HP 1 PH
$942.00
In Stock
Taco 113-C4 Cast Iron Pump Specs
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Taco Comfort Solutions - 110 Series |
| Model Number/SKU | 113-C4 (Cast Iron) |
| Country of Origin | USA |
| Pump Type | Three-Piece In-Line Circulator |
| Horsepower (HP) | 1/8 HP |
| Voltage (V) & Phase (PH) | 115V / 1 PH / 60Hz |
| Amperage (FLA) | 1.30 Amps |
| Motor RPM | 3250 RPM |
| Motor Type | Open Drip Proof (ODP) / Oil-Lubricated |
| Connection Type | 2-Bolt Universal Flange |
| Connection Size (Inches) | 3/4", 1", 1-1/4", 1-1/2" (Flange Kits) |
| Body Material (Casing) | Cast Iron (ASTM A48 Class 30) |
| Impeller Material | One-Piece Non-Ferrous (Polymer) |
| Shaft Material | Alloy Steel (Hardened & Ground) |
| Mechanical Seal Type | Two-Piece Carbon/Ceramic Seal |
| Max Flow Rate (GPM) | 33 GPM |
| Max Head (Feet) | 22 Feet |
| Max Operating Pressure (PSI) | 125 PSI (862 kPa) |
| Max Fluid Temperature (°F/°C) | 240°F (115°C) |
| Min Fluid Temperature (°F/°C) | 40°F (4°C) |
| Drive Type | Direct Drive (Resilient Mounted) |
| Bearing Type | Sleeve Bearings (Steel Backed / Babbitt Lined) |
| Flange-to-Flange Length | 6-3/8 Inches |
| Shut-off Head | 23 Feet |
| Thermal Protection | Automatic Reset Overload Protected |
| Service Factor | Standard (1.0) |
| Dry Weight (lbs/kg) | 11.4 lbs (5.2 kg) |
| Application Suitability | Closed-Loop Hydronic / Radiant Heating |
| Compliance | UL Listed / CSA Approved |
| SEO Usage Profile | Heavy-Duty Residential / Light Commercial HVAC |
