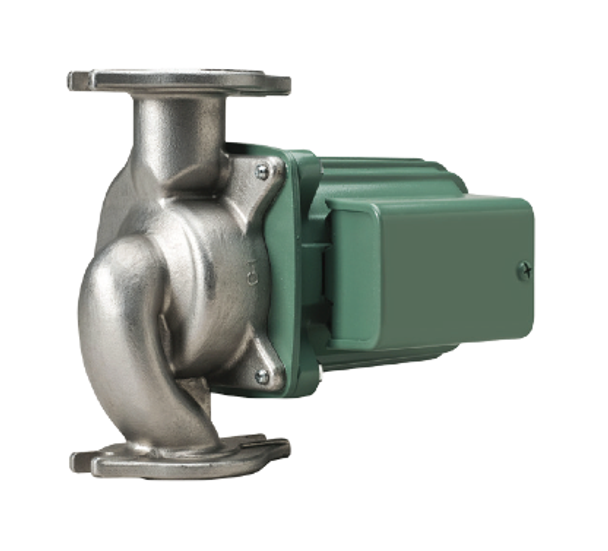

Taco 0013-SF3-IFC Stainless Steel Pump Flanged Rotated

Description

Compact commercial mechanical rooms can evaluate the Taco 0013-SF3-IFC stainless steel circulator with a 90-degree rotated flange orientation and Integral Flow Check assembly for high-head, high-flow hydronic circulation.

The official 0013-IFC configuration uses a replaceable cartridge, ceramic shaft, carbon bearings, EPDM seals, and a non-metallic impeller. Its listed maximum working pressure is 150 psi, while the rotated flange arrangement must be matched carefully to available piping and service clearance.

Key Features

• The 90-degree rotated flange orientation affects piping layout and installation clearance.
• An Integral Flow Check helps control gravity flow within zoned circulator arrangements.
• The stainless steel casing provides the documented body material for corrosion and compatibility review.
• The replaceable cartridge supports component-level service instead of complete circulator replacement.
• A ceramic shaft identifies the internal rotating component for replacement-part planning.
• Carbon bearings provide the documented bearing material for cartridge service evaluation.
• The 150 psi maximum pressure establishes the listed boundary for system selection.

Hydraulic Performance and Application

The 0013-SF3-IFC is listed for high-head and high-flow hydronic applications, including radiant heating, hydro-air fan coils, heat exchangers, and geothermal systems. No exact flow, head, NPSH, or efficiency value is supplied for this rotated stainless steel configuration, so final selection requires curve-based duty verification.

Installation Requirements

Confirm rotated flange orientation, stainless steel piping compatibility, 115 V electrical supply, flow direction, Integral Flow Check access, cartridge clearance, fluid temperature, and maximum pressure before commissioning. The 150 psi rating establishes a system boundary, while actual performance depends on the selected operating point.

Warranty and Maintenance

Taco provides a 3-Year Limited Warranty from date of manufacture for 00 Series circulators and parts proven defective under normal use. Improper installation, misuse, misapplication, petroleum-based fluids, certain chemical additives, and operation contrary to instructions are excluded. The removable cartridge and Integral Flow Check support planned service access. Mulmotor provides pre-purchase product guidance.
