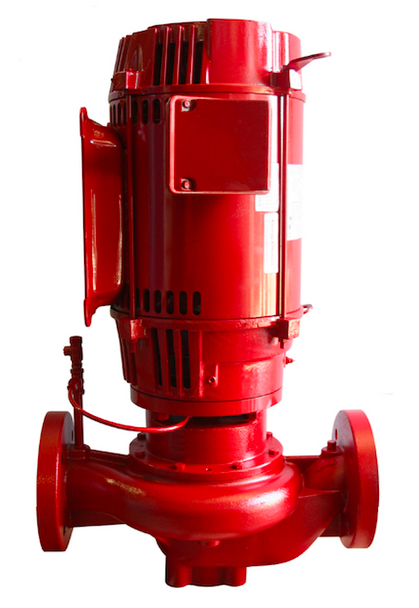

Bell & Gossett Series e-80 3HP Pump Model 1.5 x 1.5 x 9.5B

Description

Medium-head HVAC systems use Bell & Gossett Series e-80 Model 1.5 x 1.5 x 9.5B for controlled circulation through low-flow building loops. This 3 HP vertical in-line pump operates at 1750 RPM with a nominal 9.5-inch impeller and precision trimming for the 3 HP curve. Confirm the pump curve, 1.5-inch suction and discharge connections, motor rotation, and flooded suction before startup.

The Series e-80 uses a B-size volute with 1.5-inch suction and 1.5-inch discharge connections. Precision impeller trimming helps align the hydraulic assembly with the 3 HP operating curve, while the vertical in-line arrangement supports commercial HVAC piping. Verified data does not include voltage, phase, amp draw, GPM, maximum head, seal type, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so final selection requires project documentation.

Key Features of Bell & Gossett Series e-80 Model 1.5 x 1.5 x 9.5B

• 3 HP motor supports medium-head HVAC circulation and low-flow building hydronic systems.
• 1750 RPM operation suits the specified vertical in-line pump configuration.
• 1.5-inch suction and discharge connections support compatible commercial HVAC piping.
• Nominal 9.5-inch impeller fits the specified B-size volute arrangement.
• Precision-trimmed impeller aligns hydraulic output with the selected 3 HP curve.
• Vertical in-line construction supports direct installation within compatible mechanical-room layouts.
• Medium-head, low-flow profile suits building heating and cooling circulation.
• Voltage, phase, amperage, flow, head, seal, temperature, dimensions, weight, and warranty require confirmation.

Why Choose Bell & Gossett Series e-80 Model 1.5 x 1.5 x 9.5B

This Bell & Gossett HVAC pump combines precision impeller trimming with vertical in-line installation for compact hydronic circulation.

• Build: The B-size volute, precision-trimmed impeller, and vertical in-line layout support compatible commercial HVAC applications.
• Value: Curve-specific trimming can help reduce hydraulic mismatch, excessive throttling, motor loading, and service interruptions.
• Audience: Commercial HVAC contractors, building engineers, hydronic designers, boiler technicians, and facility maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett Series e-80 Model 1.5 x 1.5 x 9.5B for medium-head HVAC loops, low-flow hydronic systems, commercial heating circuits, and building cooling applications. Physical dimensions, unit weight, and port reach were not supplied, so verify pipe spacing, valve clearance, motor access, lifting room, and vertical installation requirements before purchase.

Warranty & Support

• Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
• Verify the operating curve, purge trapped air, inspect the seal area, confirm rotation, and check piping alignment during commissioning.

Flush system debris, protect the suction line from air entry, and inspect the impeller and seal during scheduled HVAC maintenance. Purchase the Bell & Gossett Series e-80 Model 1.5 x 1.5 x 9.5B HVAC pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
