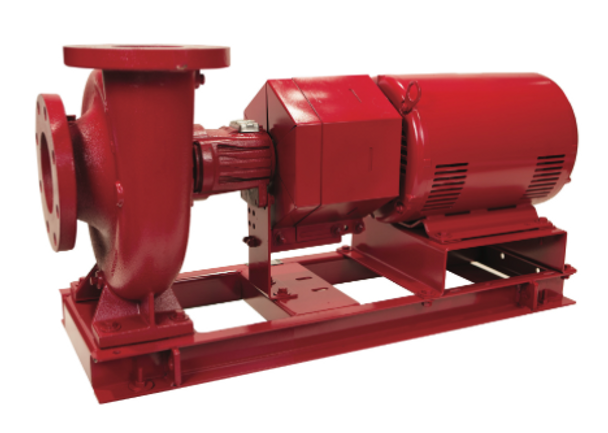

Bell & Gossett e-1510 2AD 5 HP 3550 RPM 3 Phase TEFC Pump

Description

Handle outdoor HVAC duty with Bell & Gossett e-1510 2AD 5 HP, a base-mounted bronze-fitted pump with a 3550 RPM TEFC motor. The 3-inch suction and 2-inch discharge arrangement suits larger commercial piping, while the totally enclosed fan-cooled enclosure gives the motor a better fit for dusty mechanical-room or outdoor equipment locations than an open motor design. Confirm the duty point and foundation details before installation.

The 5 HP, two-pole motor operates at 3550 RPM and drives the bronze-fitted pump through a base-mounted configuration. The separate suction and discharge sizes must be matched to the existing piping and system resistance, not selected from pipe diameter alone. Flow, head, voltage, phase, amp draw, dimensions, weight, and seal details were not provided, so verify the complete submittal before ordering.

Key Features & Benefits

• 5 HP Motor: Provides the listed power rating for larger commercial HVAC and mechanical-room applications.
• 3550 RPM Speed: Identifies the two-pole motor configuration for accurate replacement matching.
• TEFC Enclosure: Helps protect the motor in dusty or exposed equipment locations.
• 3-Inch Suction: Accommodates the specified larger inlet connection for compatible piping layouts.
• 2-Inch Discharge: Provides a defined outlet size for system connection checks.
• Bronze-Fitted Construction: Identifies the pump’s specified material arrangement for compatible HVAC service.
• Base-Mounted Design: Requires a suitable foundation, alignment, and coupling layout during installation.

Why Choose Bell & Gossett e-1510 2AD 5 HP

The e-1510 2AD is built for larger pump-room installations where a 5 HP high-speed motor, TEFC enclosure, and separate suction and discharge connections are required.

• Build: Bronze-fitted construction, TEFC motor enclosure, and base-mounted layout provide defined equipment details.
• Value: A TEFC motor can better suit dusty locations, while proper alignment helps protect the coupling and rotating assembly.
• Audience: Intended for commercial HVAC contractors, facility engineers, industrial maintenance teams, and mechanical-room installers.

Applications & Use Cases

Apply Bell & Gossett e-1510 2AD 5 HP to outdoor HVAC units, dusty mechanical rooms, larger hydronic headers, and compatible commercial circulation systems. The supplied data identifies 3-inch suction and 2-inch discharge connections but does not provide dimensions, weight, base details, or coupling measurements. Verify foundation space, lifting access, shaft alignment, and service clearance before installation.

Warranty & Support

• Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
• Confirm the 2AD case size, 5 HP motor, 3550 RPM speed, TEFC enclosure, and bronze-fitted construction before purchase.

Set the pump on a suitable base, align the coupling, verify suction and discharge piping, and confirm the motor’s electrical data before startup. Prime the system, purge air, inspect for leakage, and monitor vibration and bearing temperature during commissioning. Purchase the Bell & Gossett e-1510 2AD 5 HP bronze-fitted base-mounted HVAC pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
