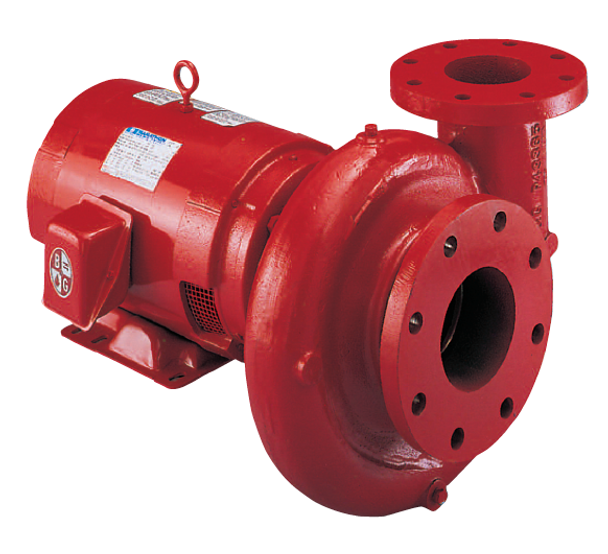

Bell & Gossett 2AD Series e-1531 Pump 10HP Motor 3550 RPM

Description

High-head industrial pressure supply can use the Bell & Gossett 2AD Series e-1531 with 10 HP, 3,550 RPM two-pole operation, three-phase power, a cast-iron volute, bronze-fitted construction, and an internal mechanical seal.

The 3-inch suction and 2-inch discharge connections establish the main piping references for this 2AD configuration. Its high-speed motor and bronze-fitted construction suit the listed booster and industrial applications, but final selection still requires the actual flow, head, NPSH, pressure, temperature, and pump curve.

Key Features

• The 10 HP motor establishes the listed power class for industrial electrical planning.
• Operating at 3,550 RPM, the two-pole speed affects hydraulic curve selection.
• Three-phase operation identifies the motor phase for compatible starters and controls.
• The 3-inch suction connection defines the inlet piping reference for installation.
• A 2-inch discharge connection requires matching outlet piping and flange dimensions.
• Cast-iron volute construction provides the documented casing material for system review.
• Bronze-fitted construction and internal mechanical sealing support component specification checks.

Hydraulic Performance and Application

High-head booster systems and industrial pressure supply are the listed applications for this pump. Exact flow, head, NPSH, pressure, temperature, and efficiency values are not supplied, so the 10 HP motor and 3,550 RPM speed cannot establish a guaranteed operating point without curve verification.

Installation Requirements

Confirm three-phase electrical requirements, 3-inch suction and 2-inch discharge piping, rotation, foundation, coupling alignment, seal access, service clearance, and fluid conditions before commissioning. Bronze-fitted construction should be matched with the approved application, while actual operating limits must follow manufacturer documentation.

Warranty and Maintenance

Bell & Gossett provides an 18-Month Limited Warranty from shipment or a 1-Year Limited Warranty from installation, whichever occurs first, covering material and workmanship defects. Improper installation, misuse, alteration, negligence, and contrary operation are excluded. Mechanical-seal condition, shaft alignment, and coupling inspection remain important service checks. Mulmotor provides product-information support before purchase.
